Real Cast Iron 3D Softening Welding Table Fixing Fixture Steel Welding Table

Product Description

China top quality 2D welding table plate with jig and welding fixture 3D metal welding table

It is machined by CNC machining center.
According to the hole system, it is divided into two series: Φ28 and Φ16.
According to the structure, it is divided into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling.
According to the material, it is divided into steel platform, cast iron platform and nitrided steel platform.

3D welding table -- D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.

Real Cast Iron 3D Softening Welding Table Fixing Fixture Steel Welding Table

3D welding table -- D28 series

Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs

Product function:

PRODUCT SPECIFICATIONS:

NO	Welding Table Specification	Dimension	Hole Diameter	Material
1	4000mm*2000mm	3D/2D	D28/D16	Cast iron/steel/Q355 nitrided steel
2	3000mm*2000mm	3D/2D	D28/D16	Cast iron/steel/Q355 nitrided steel
3	3000mm*1500mm	3D/2D	D28/D16	Cast iron/steel/Q355 nitrided steel
4	2400mm*1200mm	3D/2D	D28/D16	Cast iron/steel/Q355 nitrided steel
5	2000mm*1000mm	3D/2D	D28/D16	Cast iron/steel/Q355 nitrided steel
6	1500mm*1000mm	3D/2D	D28/D16	Cast iron/steel/Q355 nitrided steel
7	1200mm*1000mm	3D/2D	D28/D16	Cast iron/steel/Q355 nitrided steel

Hole: D28

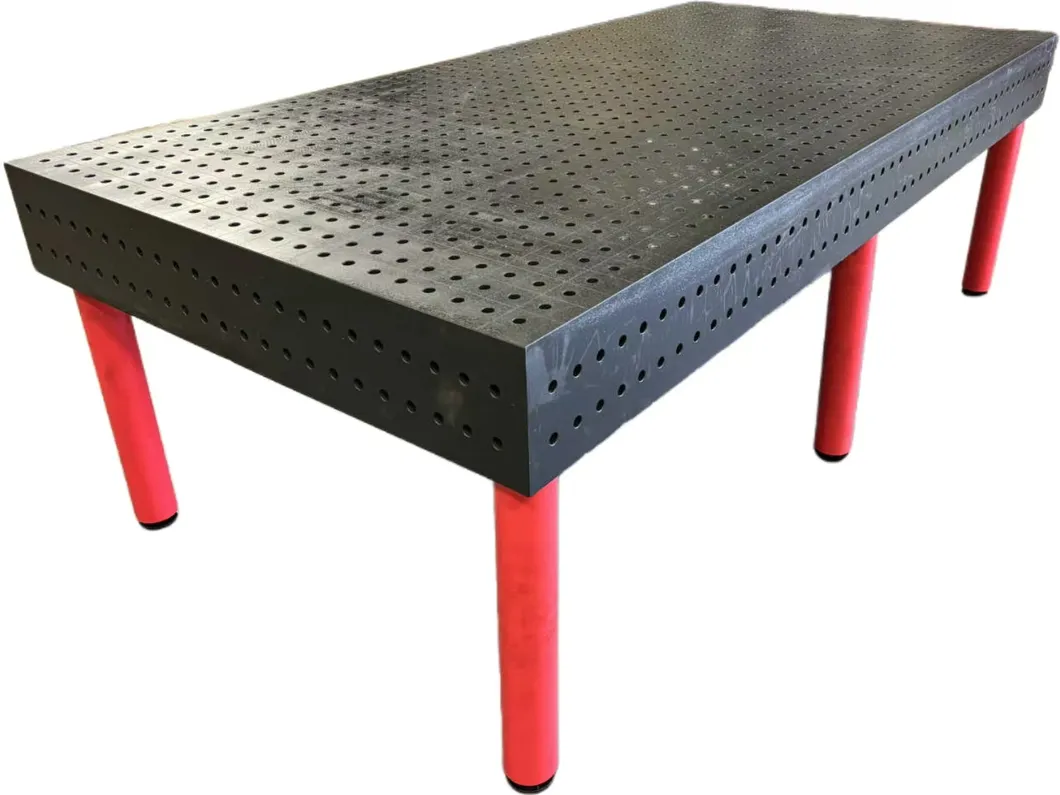

One :Universal 3D casting welding table:
1. Flatness up to: 0.1/1000mm
2. The verticality between the side surface and the upper surface reaches: 0.1/200mm
3. The roughness of the working surface reaches: 16um
4 scale line specification: 100x100+0.05mm
5. Hole spacing: 100±0.03mm
6. Material: casting (HT250), the overall annealing heat treatment to eliminate internal stress
Place it for three to six months for natural aging treatment.
Supporting legs of the workbench: the load-bearing capacity of the standard type is 2T.

Two :Support angle iron
1. For casting HT300.
2. The flatness is 0.15/1000mm, and the verticality reaches 0.15/1000mm.
3. The position accuracy of each hole system does not exceed +0.05mm, and the size accuracy of the holes is P28D10.
4. The surface roughness of the working surface reaches Ra32

Three: Positioning angle ruler and positioning square ruler:
1. The material is 45# steel quenched and tempered, blackened
2. The flatness is 0.15/1000mm, and the verticality reaches 0.15/1000mm.
The position accuracy of each hole system on the supporting angle iron does not exceed +0.05mm, and the dimensional accuracy is P28D10

Four: quick locking pin:
1. Five steel balls must be used for positioning to ensure positioning accuracy
2. The material is 45# steel, quenched and tempered, and the dimensional accuracy of the lock pin is Φ28h7.
Steel ball quenching treatment 3 locking force 21500KG

Five: Compression parts:
1. It is a round pipe connection with flexible operation and no shaking after clamping.The clamping force is 100Kg~500Kg.
2.The pressure head adopts a split structure, which is convenient for maintenance and replacement.The working part is heat treated.
3. The surface has no burrs, corrosion spots and scratches, castThere are no slag inclusions and pores on the surface of the parts, and no peeling off the paint surface

Six: Technical requirements for related configuration accessories:
1. Overall heat treatment of clamping and positioning parts, non-working surface painting treatment
2. Each module can realize XYZ and angle direction adjustment, and the flatness of each positioning surface is <0.2/1000mm, and the verticality is < 0.15/1000mm, parallelism <0.2/1000mm
3. The surface roughness of the working plane of each module is 32pmu

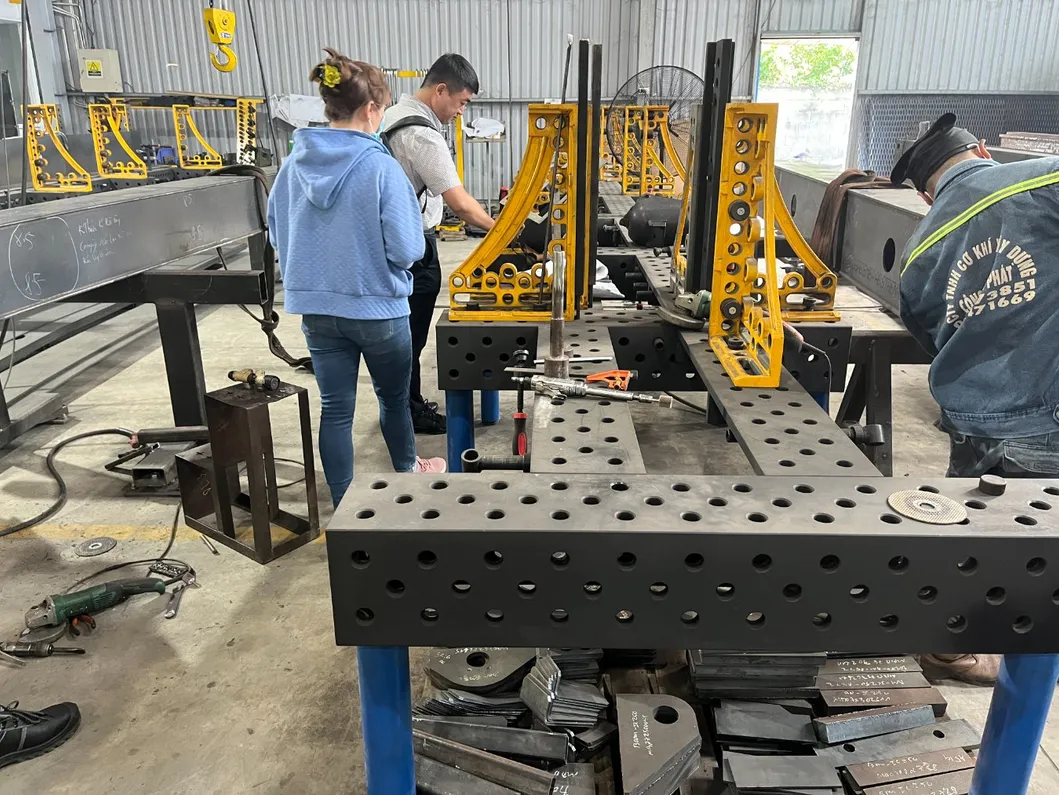

Customer inspection:

Clamps Accessories :

Product packaging:

Q1. Are you manufacturer or trade company ?
We are professional manufacturer in China , and have in this line almost 10 years .
Q2. Would it be possible for us to visit your factory ?
Sure, welcome you at any time !
Q3 . Will your company supply samples ?
Yes ,we do .
Q4. How can we get the quotation ?
Please let us know the specifications , such as the material ,micron ,apply in which industry etc .
Q5.what's the lead time ?
Usually is 5-15 days after we received your payment .
Q6 . what is the packaging ?
Inner packing -poly bags .Outer packing -Export cartons .
Q7. Can I get your products with our logo and design ?
Yes ,you can . Most of our products can be customized according to your requirements .
Q8. Which payment terms are you accept ?
T/T , L/C .Western Union , Money gram are available for us . we accept 30% T/T in advance , the balance should be paid before
shipping .
