Modular 3D Table Dedicated to Welding, Choose From a Variety of Fixings

Modular 3D Table Dedicated to Welding, Choose From a Variety of Fixings

NOWelding TableSpecificationDimensionHole DiameterMaterial14000mm*2000mm3D/2D D28/D16Cast iron/steel/Q355 nitrided steel23000mm*2000mm3D/2D D28/D16Cast iron/steel/Q355 nitrided steel33000mm*1500mm3D/2D D28/D16Cast iron/steel/Q355 nitrided steel42400mm*1200mm3D/2D D28/D16Cast iron/steel/Q355 nitrided......Keywords:Modular 3D Table Dedicated to Welding, Choose From a Variety of Fixings, Welding Table, 3D Table

Send Inquiry

Product Description



Modular 3D Table Dedicated to Welding, Choose From a Variety of FixingsModular 3D Table Dedicated to Welding, Choose From a Variety of FixingsModular 3D Table Dedicated to Welding, Choose From a Variety of FixingsModular 3D Table Dedicated to Welding, Choose From a Variety of FixingsModular 3D Table Dedicated to Welding, Choose From a Variety of FixingsModular 3D Table Dedicated to Welding, Choose From a Variety of Fixings

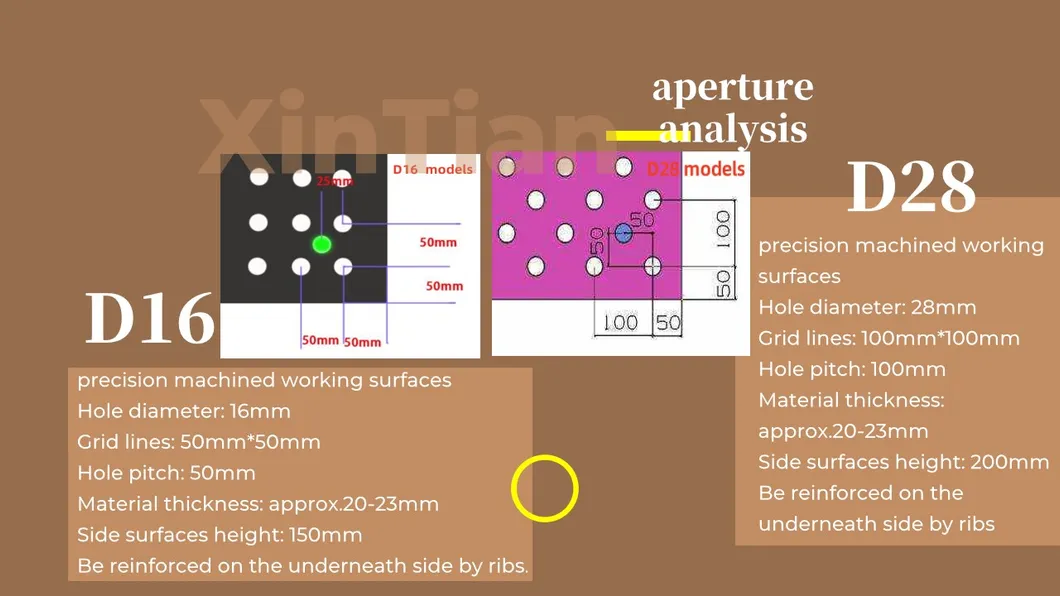

NO Welding Table
Specification
Dimension Hole Diameter Material
1 4000mm*2000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
2 3000mm*2000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
3 3000mm*1500mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
4 2400mm*1200mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
5 2000mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
6 1500mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
7 1200mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel


Modular 3D Table Dedicated to Welding, Choose From a Variety of FixingsModular 3D Table Dedicated to Welding, Choose From a Variety of Fixings

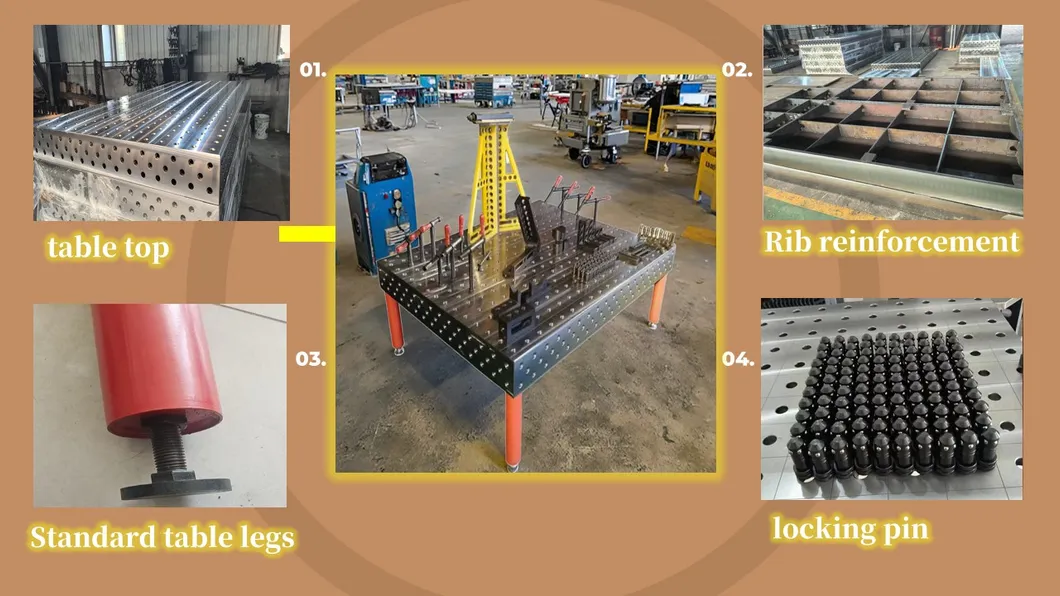

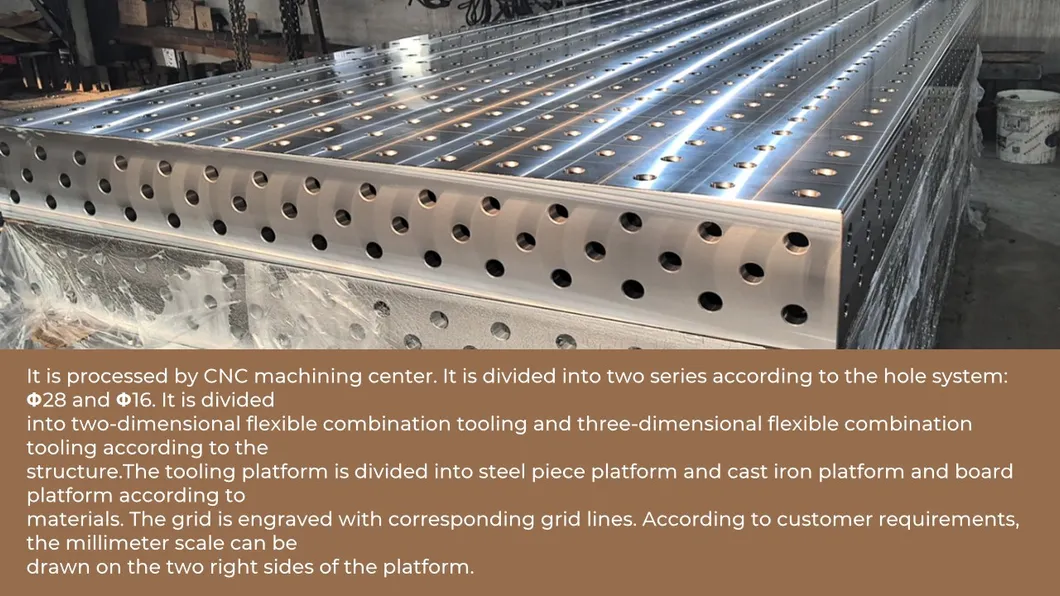

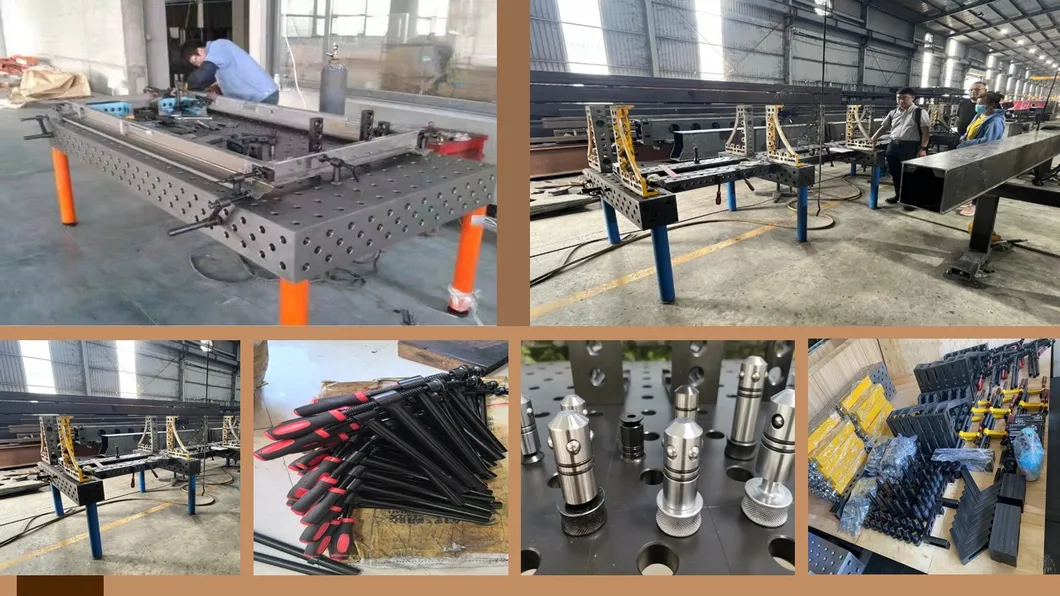

I. Three-dimensional casting welding table:
1. Flatness can reach: 0.1/1000mm
2. Verticality between the side and the upper surface can reach: 0.1/200mm
3. Working surface roughness can reach: 16um

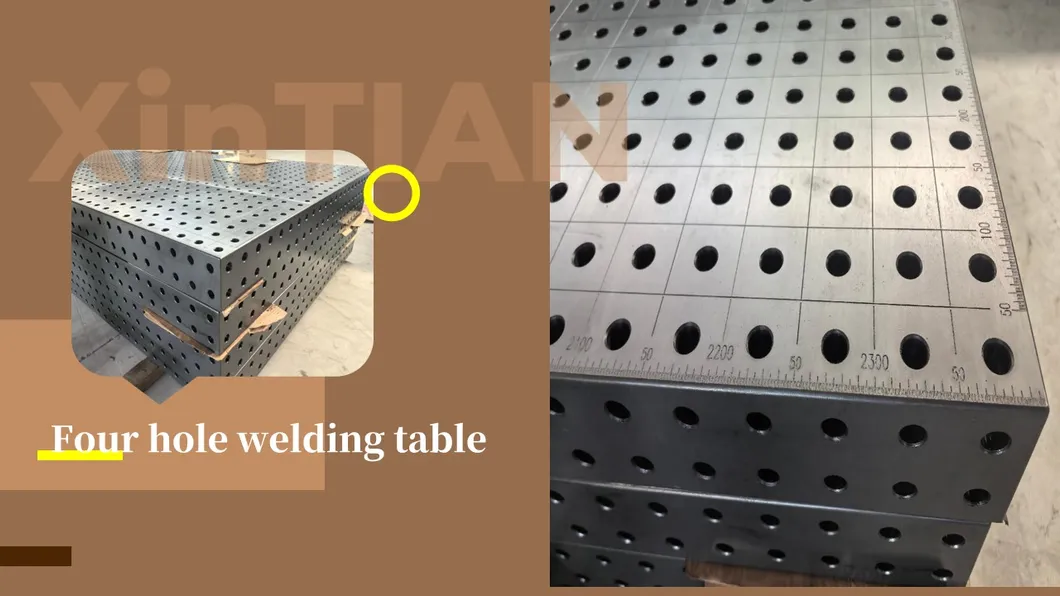

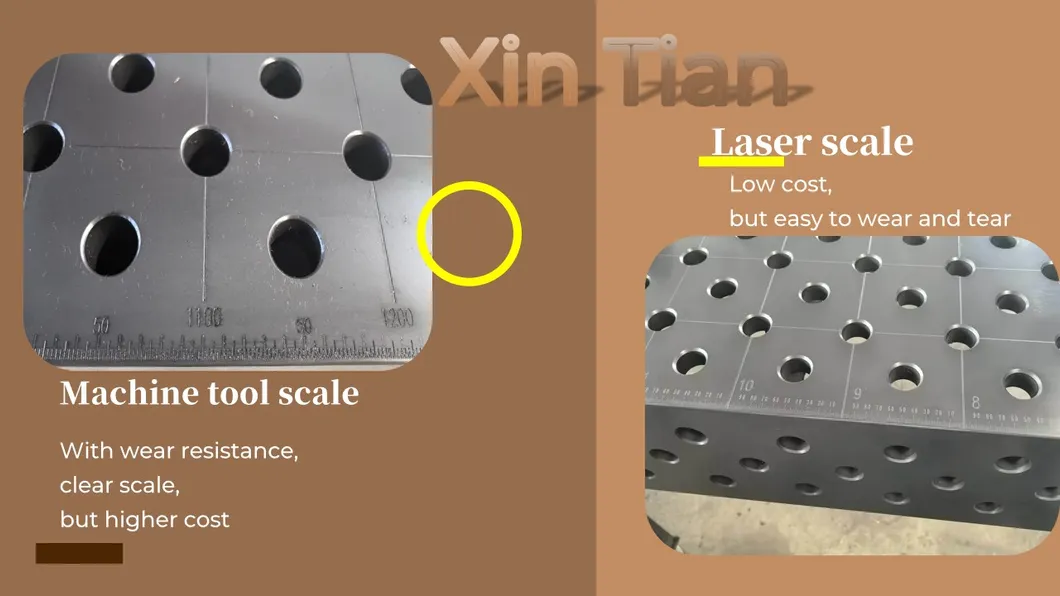

4. Scale line specification: 100x100+0.05mm

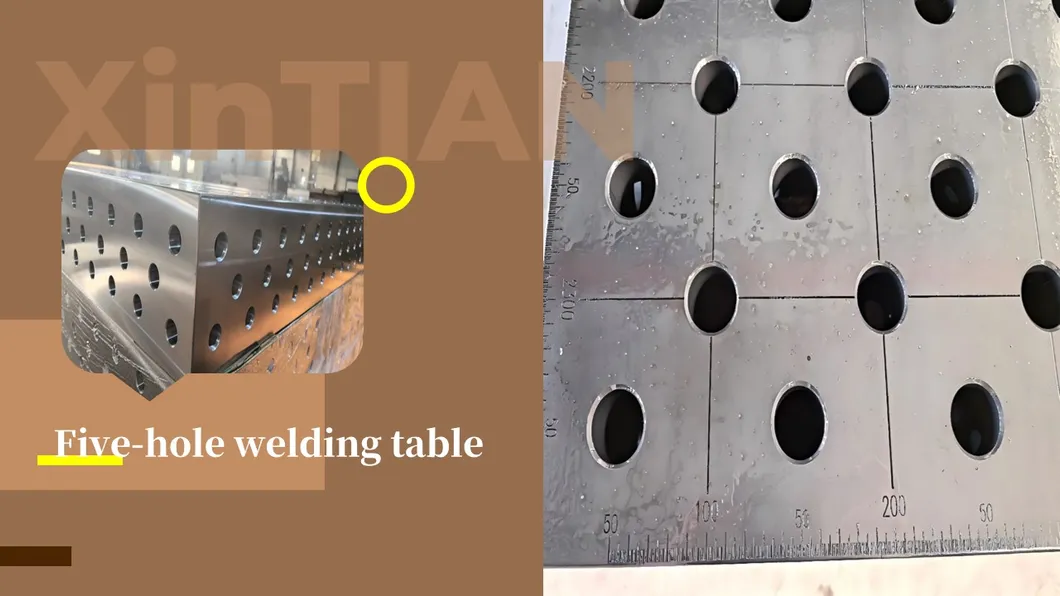

5. Hole spacing: 100±0.03mm
6. Material: casting (HT250), overall annealing heat treatment to eliminate internal stress
Put it in place for three to six months for natural aging treatment.
Workbench support feet: standard type with a load-bearing capacity of 2T.

II. Support angle iron
1. Cast HT300.
2. Flatness 0.15/1000mm, verticality can reach 0.15/1000mm.
3. The position accuracy of each hole system does not exceed +0.05mm, and the hole size accuracy is P28D10.
4. The surface roughness of the working surface reaches Ra32

III: Positioning angle ruler, positioning square ruler:

1. The material is 45# steel tempered and blackened

2. Flatness 0.15/1000mm, verticality reaches 0.15/1000mm.
The position accuracy of each hole system on the supporting angle iron does not exceed +0.05mm, and the dimensional accuracy is P28D10

IV: Quick lock pin:

1. Five steel balls must be used for positioning to ensure positioning accuracy

2. The material is 45# steel, tempered, and the lock pin dimensional accuracy is φ28h7.
Steel ball quenching treatment 3. Locking force 21500KG

V: Clamping parts:

1. It is connected to a round tube, flexible in operation, and does not shake after clamping. Clamping force 100Kg~500Kg.

2. The pressure head adopts a split structure, which is easy to repair and replace. The working part is heat treated.
3. No burrs, corrosion spots or scratches on the surface, no slag inclusions or pores on the casting surface, and no peeling of the paint surface

VI: Technical requirements for related configuration accessories:

1. Overall heat treatment of clamping and positioning parts, and spray painting of non-working surfaces

2. Each module can realize XYZ and angle direction adjustment, and the flatness of each positioning surface is <0.2/1000mm, verticality is <0.15/1000mm, and parallelism is <0.2/1000mm

3. The surface roughness of the working plane of each module is 32pmu

Modular 3D Table Dedicated to Welding, Choose From a Variety of Fixings
