Light Welding Turning Table for Rotation and Flange Girth Welding

Product Description

Product Description

Light Welding Turning Table for Rotation and Flange Girth Welding

It is processed by CNC machining center. It is divided into two series according to the hole system: Φ28 and Φ16. It is divided
into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure.The tooling platform is divided into steel piece platform and cast iron platform and board platform according to materials. The grid is engraved with corresponding grid lines. According to customer requirements, the millimeter scale can be drawn on the two right sides of the platform.

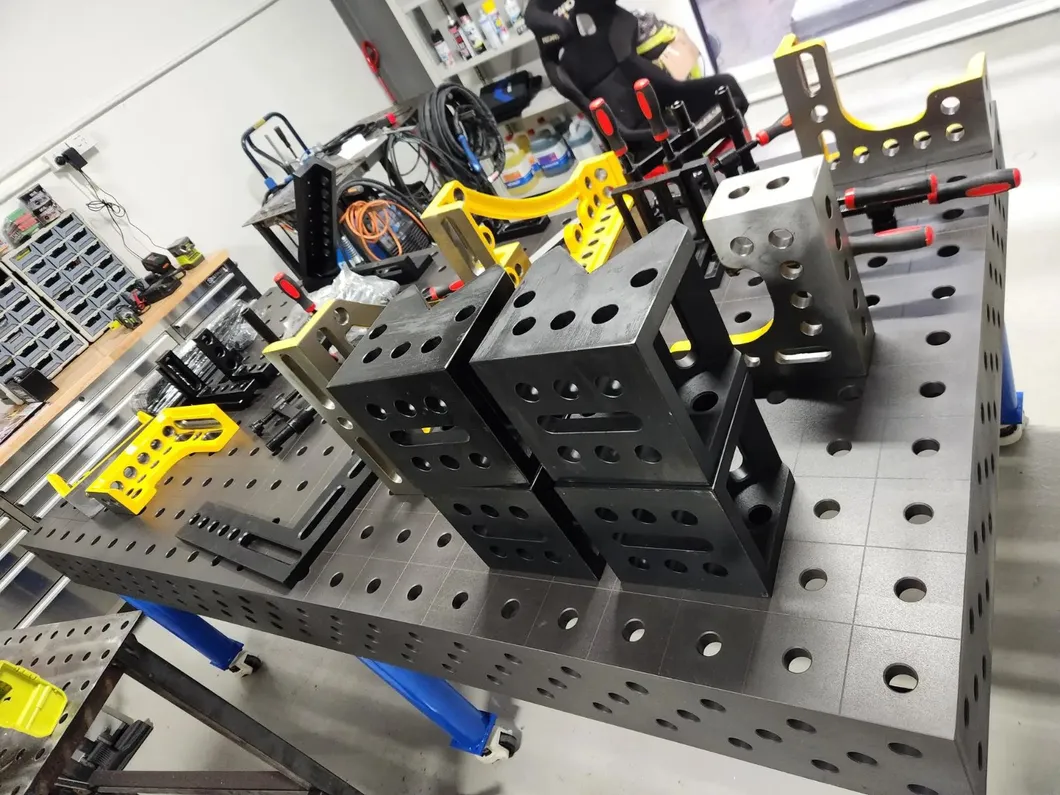

3D welding table -- D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.

3D welding table -- D28 series

Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs

Product Specifications

NO,	Welding Table Specification	Dimension	Hole Diameter	Material
1	4000mm*2000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
2	3000mm*2000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
3	3000mm*1500mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
4	2400mm*1200mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
5	2000mm*1000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
6	1500mm*1000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
7	1200mm*1000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
8	1000mm*1000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345

Product Features

Modularity and flexibility:
  Can be connected and changed arbitrarily according to the shape of workpiece.
High precision:
  The precision can reach decimillimetre(dmm) for fixing and clamping.
Quick fixing and clamping:
  Only spending a few minutes to fix and clamp workpieces from one to another.
Ease to operate:
  Only 2 hours, any worker can learn how to use it quickly.
High price-performance ratio:
  1 set of modular flexible fixture can replace all traditional dedicated fixtures.Saved a lot of time, labor, material resources and funds for enterprises.
Clean, tidy and environmental Friendly:
  Compared with mountains of rusty dedicated fixtures, modular flexible fixtures are the optimal choice.

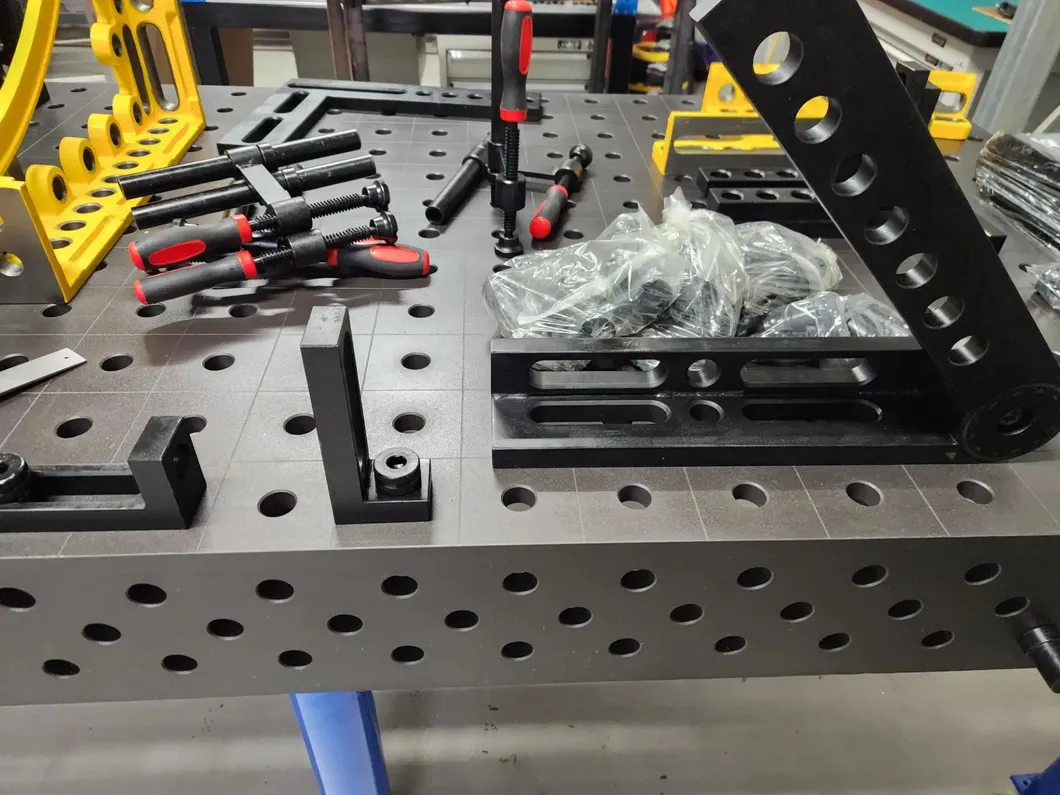

Related Product Accessories

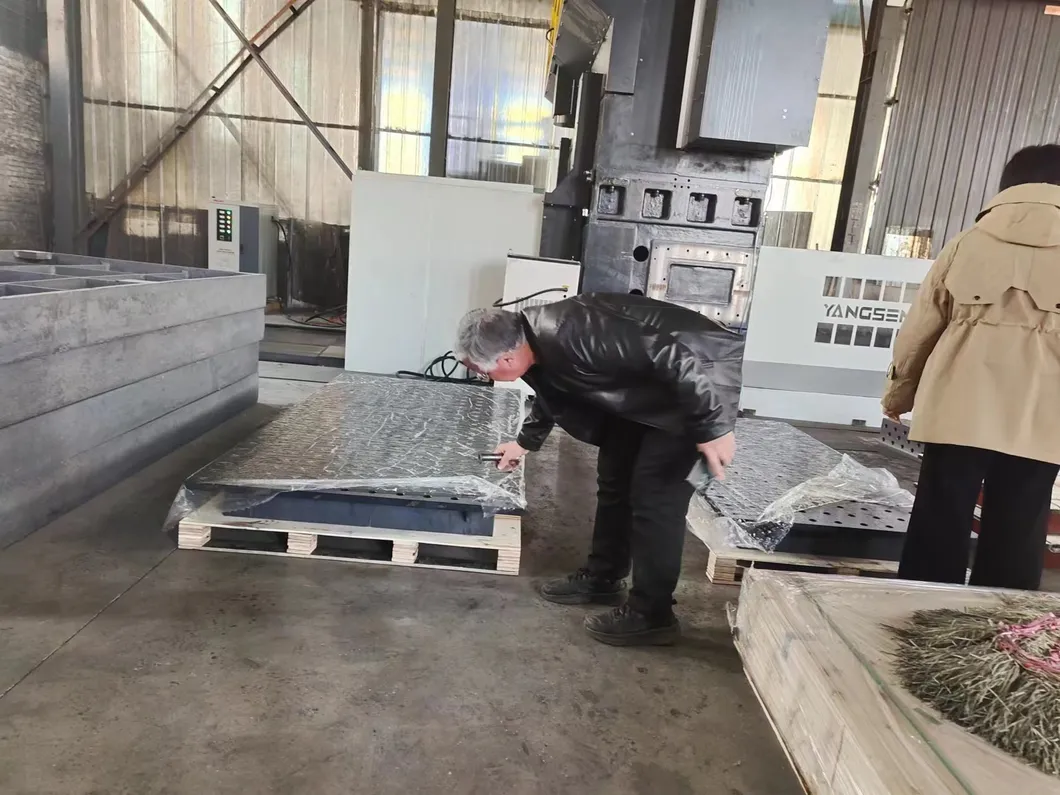

Customer Visits Factory

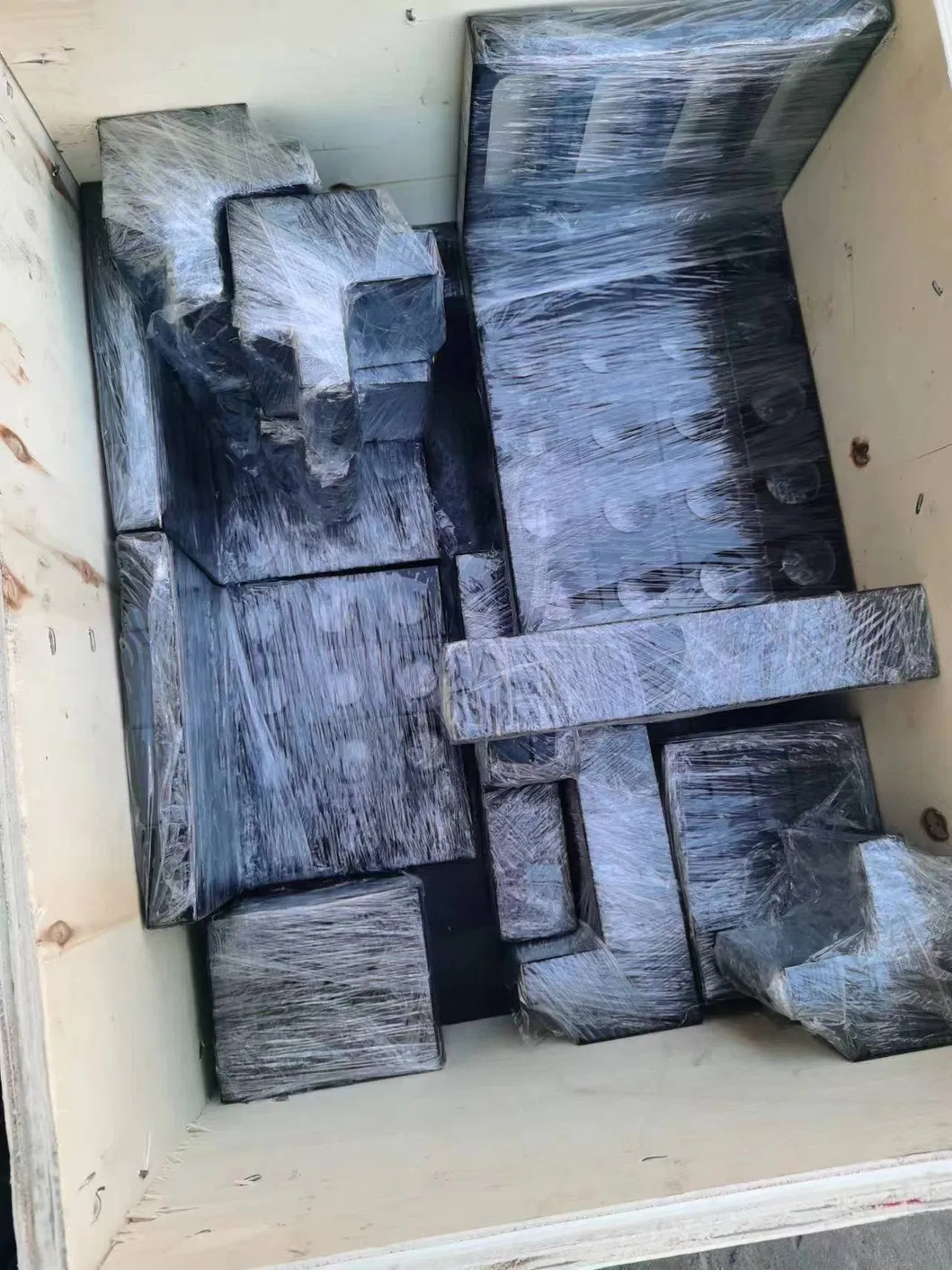

Product Packaging
