High Quality 2D3d Welding Table Positioning Fixture Welding Machine Workbench

.lc-a-img {position: relative;width: 100%;height: 100%;object-fit: contain;overflow: hidden;}.lc-a-img .img-content {position: absolute;top: 0;left: 0;width: 100%;height: 100%;overflow: hidden;}.lc-a-img .img-content .img-content-wrap {position: relative;width: 100%;height: 100%;}.lc-a-img .img-cont......Keywords:High Quality 2D3d Welding Table Positioning Fixture Welding Machine Workbench, 3D Welding Table, Steel Welding Table

Product Description

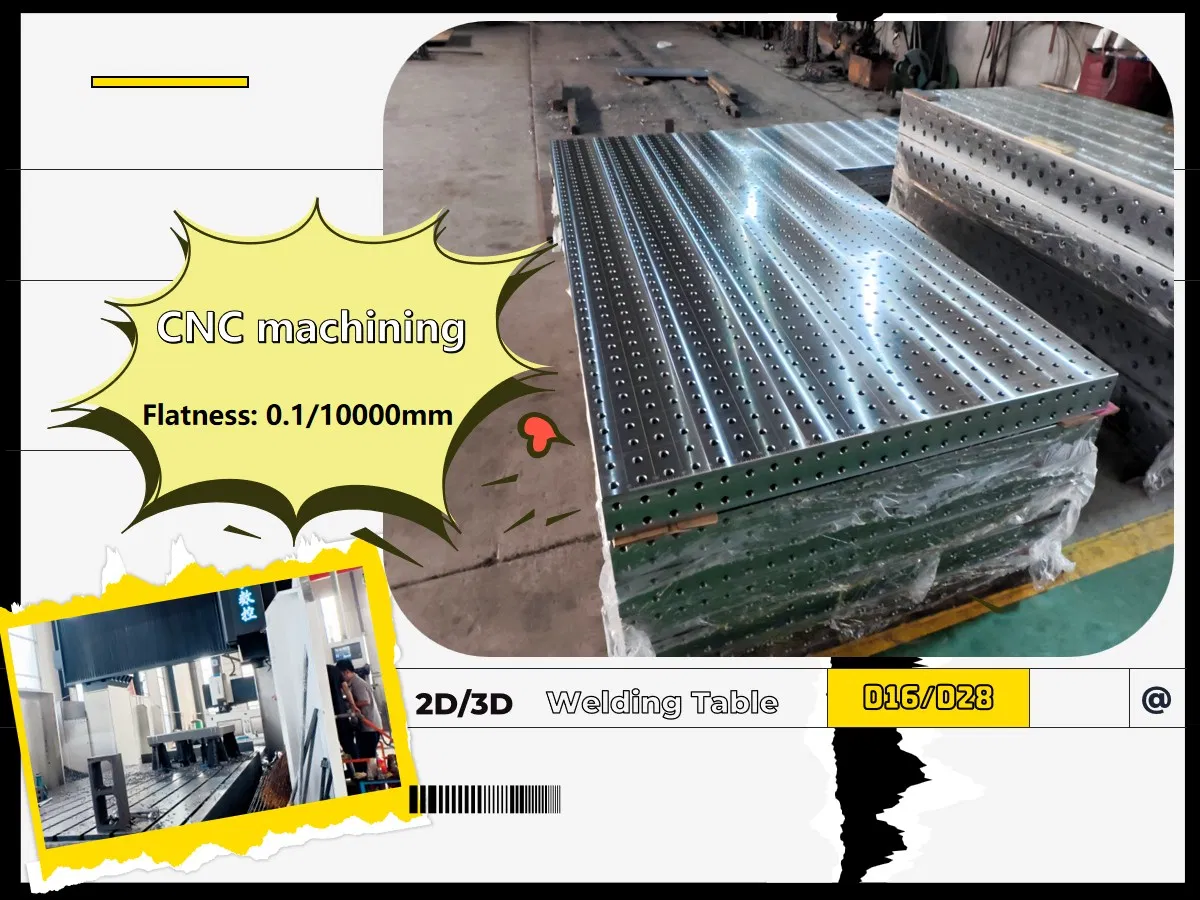

It is machined by CNC machining center.
According to the hole system is divided into two series: Φ28 and Φ16.
According to the structure, it is divided into two-dimensional flexible combination fixtures and three-dimensional flexible combination fixtures.

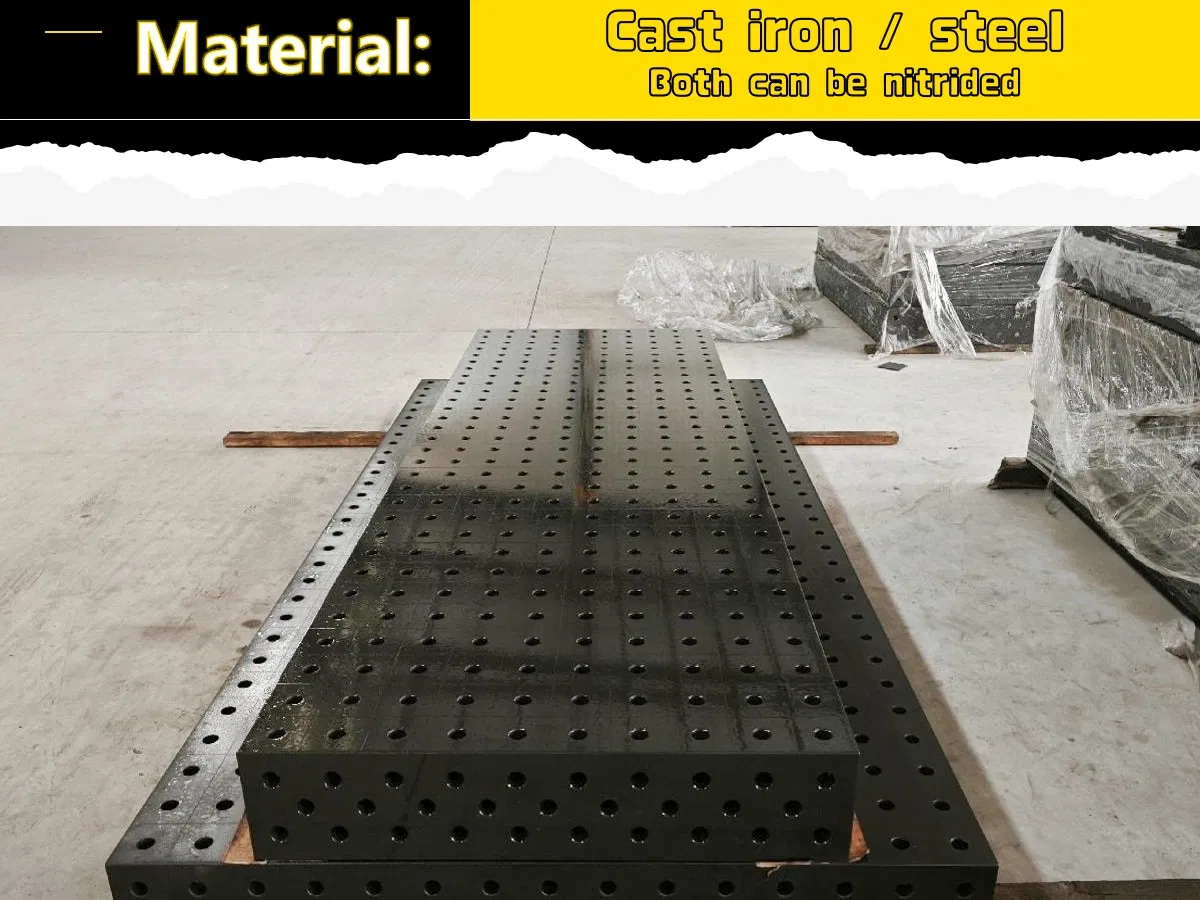

According to the material is divided into steel plate platform and cast iron platform, plate platform.
The corresponding grid lines are engraved on the grid.
According to customer requirements, millimeter scales can be drawn on both sides of the right side of the platform.

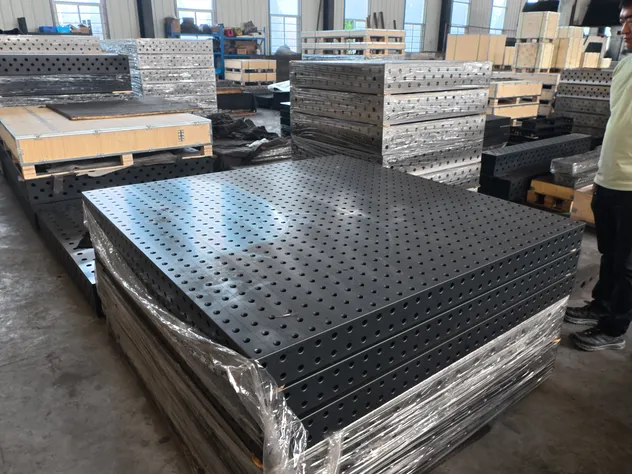

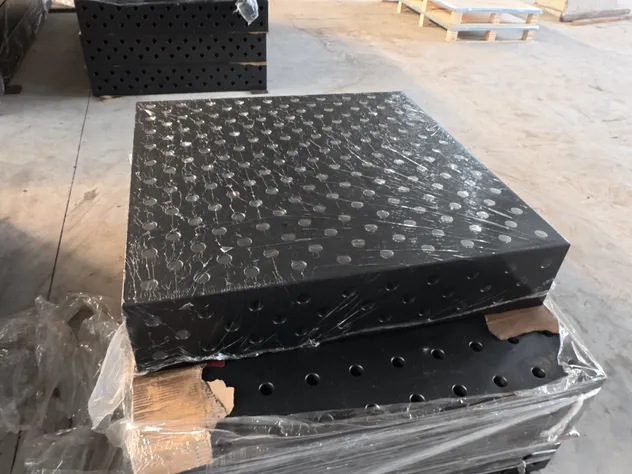

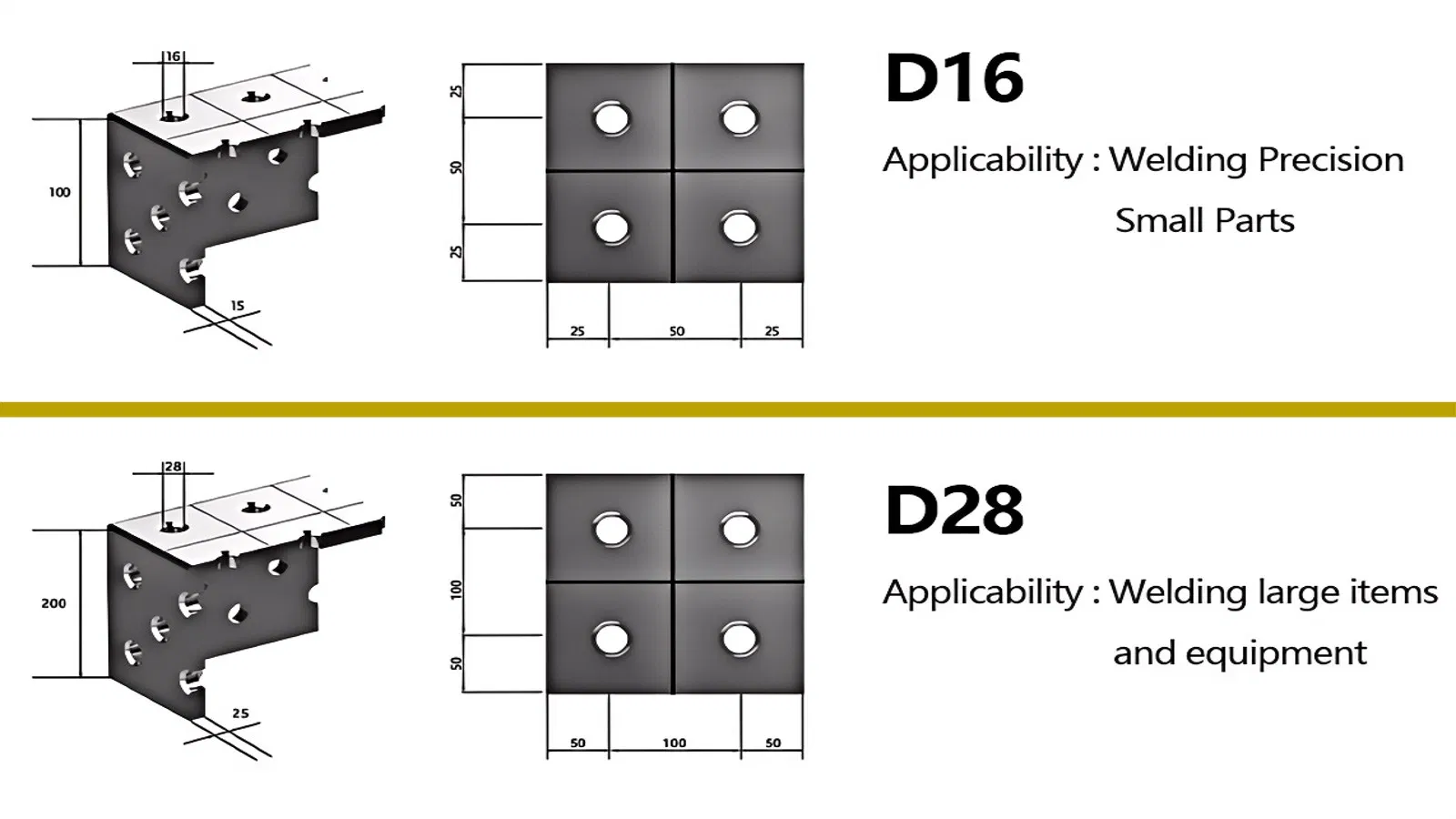

3D welding table - D16 and D28 series

D16 series
5 precision machined work surfaces
Aperture: 16mm
Grid line: 50mm*50mm
Hole distance: 50mm
Material thickness: about 15mm
Side height: 100mm

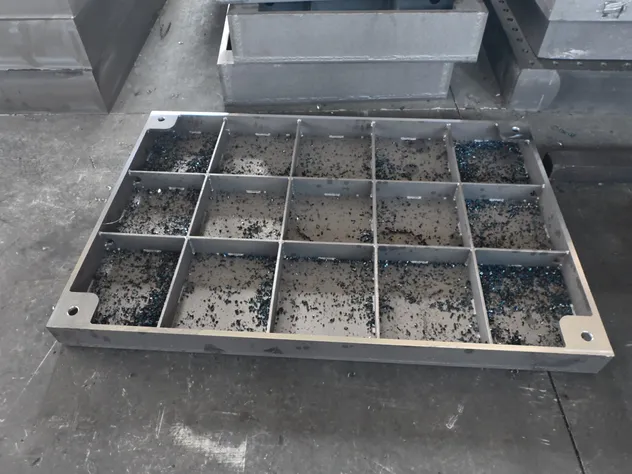

Bottom is reinforced with reinforcing ribs.

D28 series
5 precision machined work surfaces
Aperture: 28mm
Grid line: 100mm*100mm
Hole distance: 100mm
Material thickness: about 25mm
Side height: 200mm
Bottom is reinforced with reinforcing ribs.

NO	Welding Table Specification	Dimension	Hole Diameter	Flatness	Material
1	4000mm*2000mm	3D/2D	D28/D16	0.1/1000mm	Cast iron/steel
2	3000mm*2000mm	3D/2D	D28/D16	0.1/1000mm	Cast iron/steel
3	3000mm*1500mm	3D/2D	D28/D16	0.1/1000mm	Cast iron/steel
4	2400mm*1200mm	3D/2D	D28/D16	0.1/1000mm	Cast iron/steel
5	2000mm*1000mm	3D/2D	D28/D16	0.1/1000mm	Cast iron/steel
