Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table

Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table

China High Quality 2D Welding Bench 3D Metal Welding Bench (with Jig and Welding Fixture) It is machined by CNC machining center.According to the hole system is divided into two series: Φ28 and Φ16.According to the structure, it is divided into two-dimensional flexible combination fixtures and thr......Keywords:Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table, Steel Welding Table, Welding Fixture

Send Inquiry

Product Description

China High Quality 2D Welding Bench 3D Metal Welding Bench (with Jig and Welding Fixture)


Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table
Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table

It is machined by CNC machining center.
According to the hole system is divided into two series: Φ28 and Φ16.
According to the structure, it is divided into two-dimensional flexible combination fixtures and three-dimensional flexible combination fixtures.
According to the material is divided into steel plate platform and cast iron platform, plate platform.
The corresponding grid lines are engraved on the grid.
According to customer requirements, millimeter scales can be drawn on both sides of the right side of the platform.
Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table
3D Welding Table -- D16 Series
Made of cast iron
5 precision machined work surfaces
Bore diameter: 16 mm
Mesh line 50 mm*50 mm
Hole spacing: 50 mm
Material thickness: approx. 17-23 mm
Side height: 200 mm
Lower side reinforced with ribs.
Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table

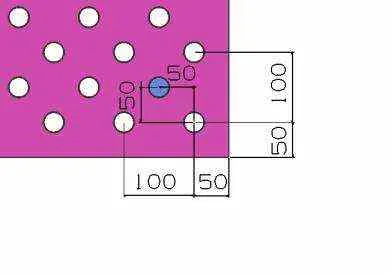

Three-dimensional welding tables -- D28 series
Made of cast iron
5 precision-machined work surfaces
Bore diameter: 28 mm
Mesh line 100 mm * 100 mm
Hole spacing: 100 mm
Material thickness: approx. 17-23 mm
Side height: 200 mm
Lower side reinforced with ribs

Product Specification:

NO Welding Table
Specification		 Dimension Hole Diameter Material
1 4000mm*2000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel

2 3000mm*2000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel

3 3000mm*1500mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel

4 2400mm*1200mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel

5 2000mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel

6 1500mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel

7 1200mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel

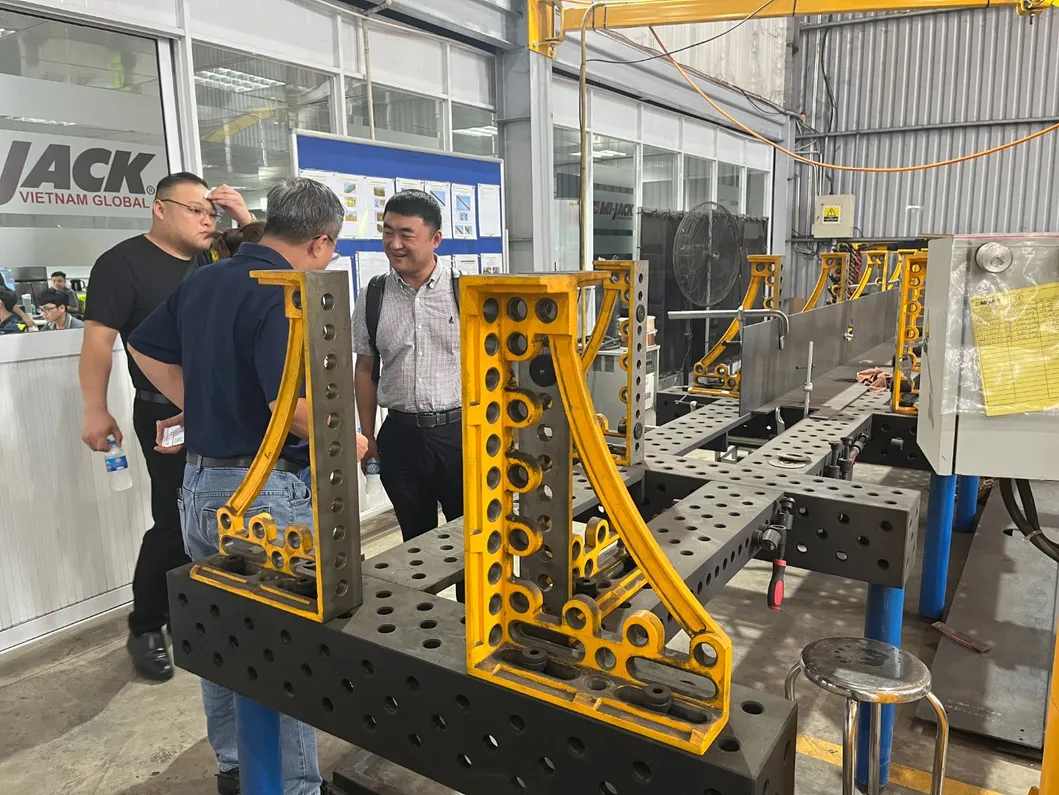

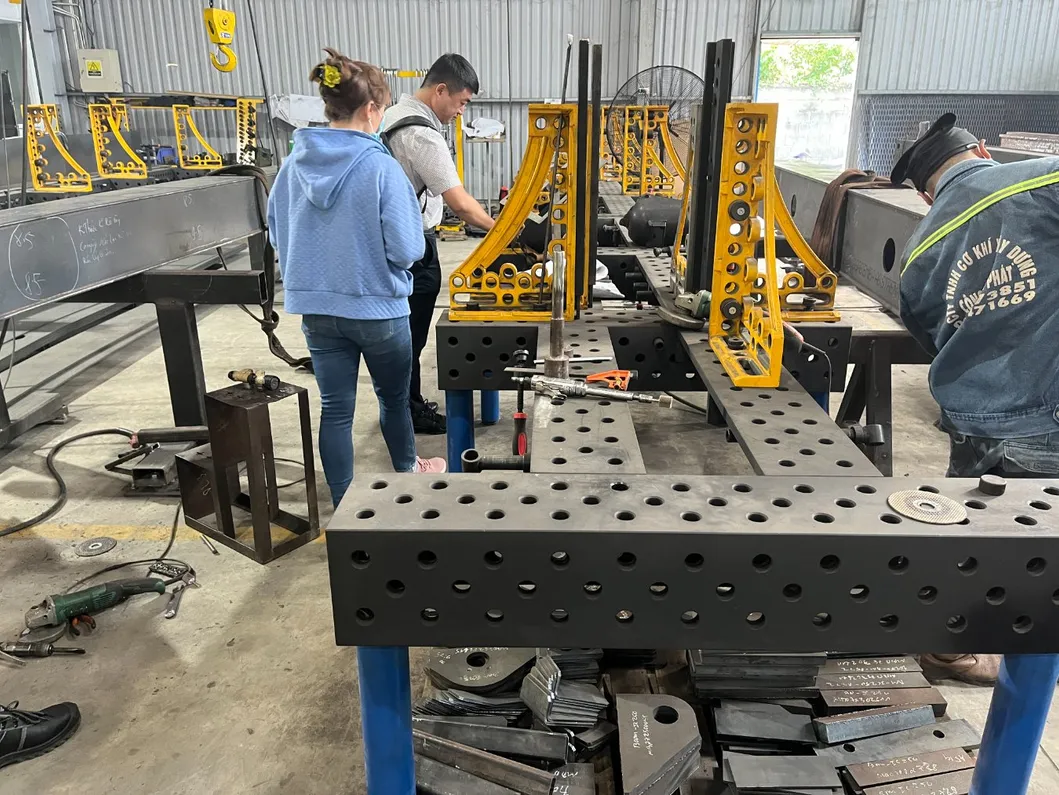

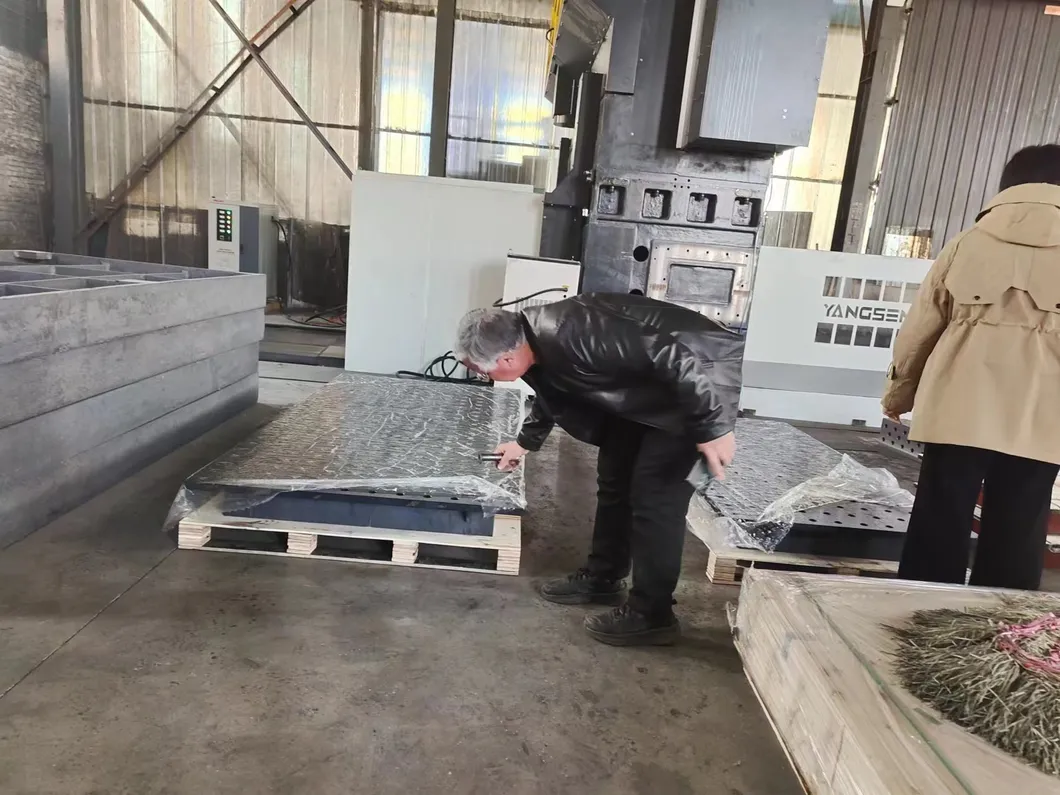

Customer visit:

Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table
Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table
Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table

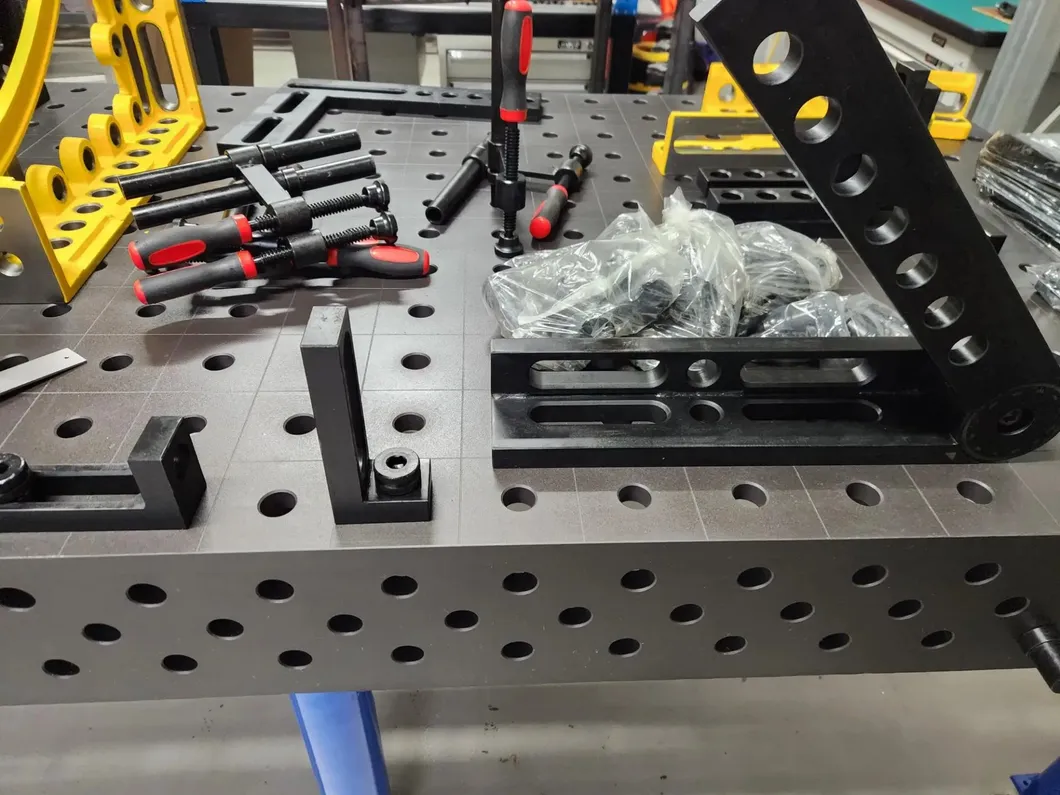

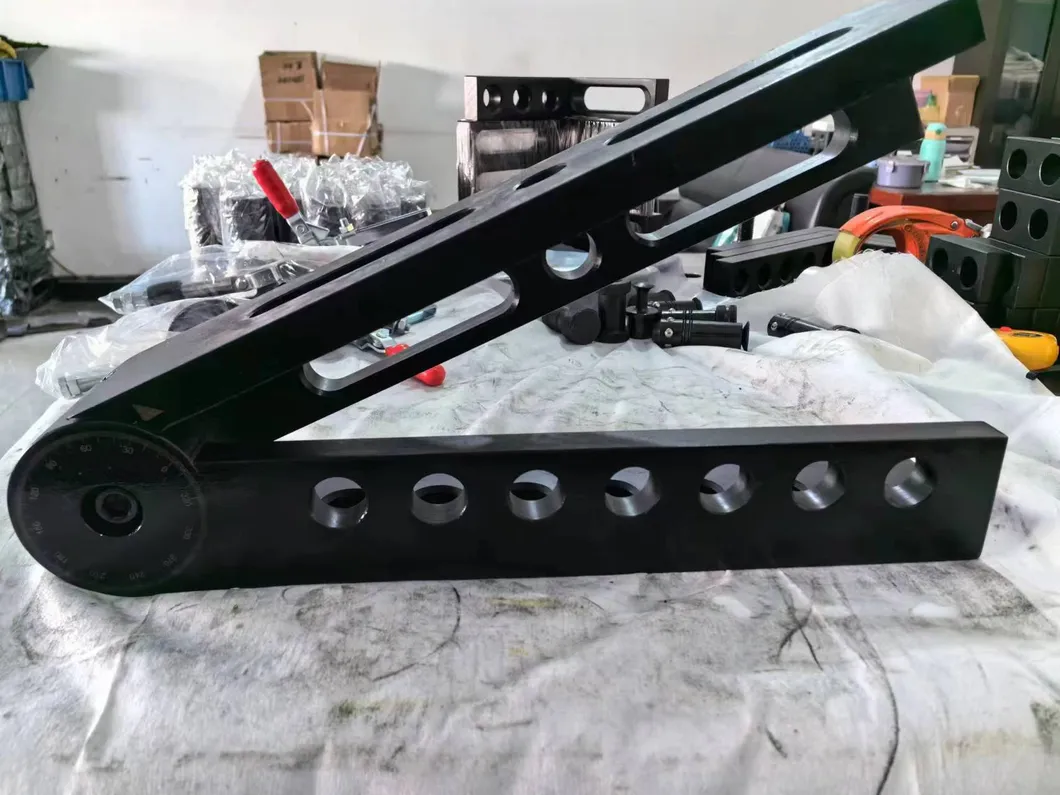

Fixed fixture:

Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table
Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table
Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table


Packing:

Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table
Factory Direct Wholesale 3D Steel Welding Table Positioning Welding Table


Q&A

Q: Are you trading company or manufacturer ?
A: Yes, We are manufacturer.Our factory are professional to produce welding equipment.
Q: Can you do OEM?
A: Yes, we can do OEM products.It's no problem.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods arenot in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost offreight.
Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing.
