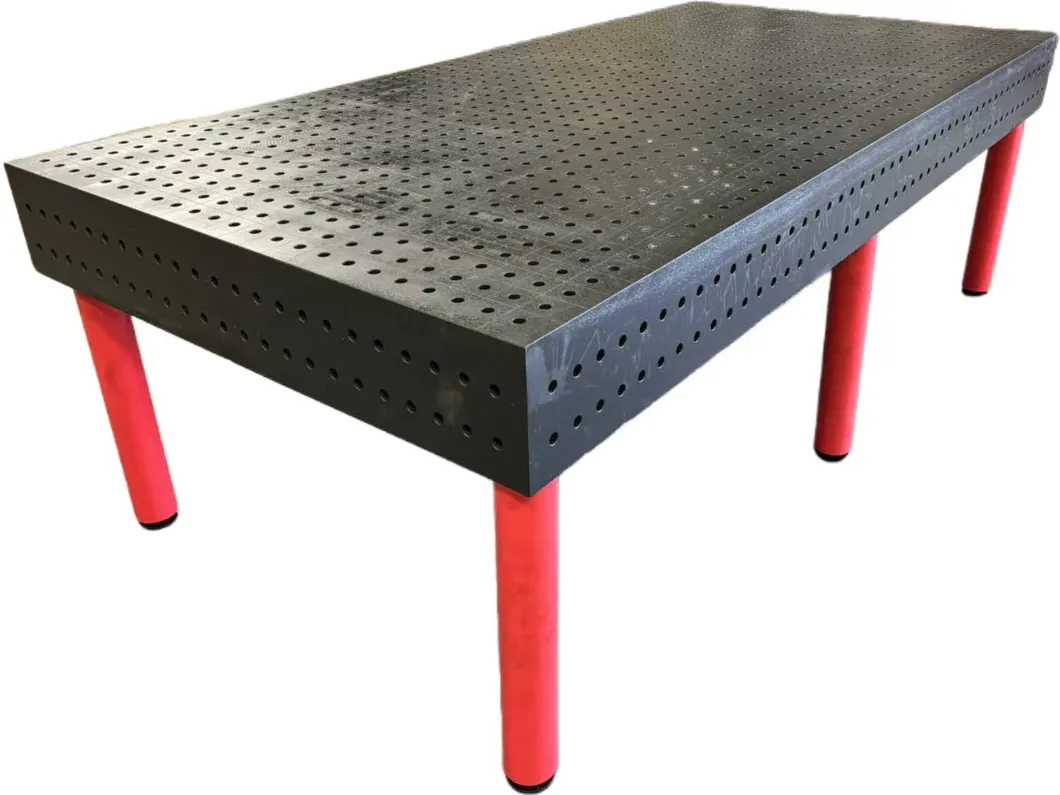

Factory Direct Sale High Precision Nitrided Steel 3D Welding Table

Factory Direct Sale High Precision Nitrided Steel 3D Welding Table

China Top Quality Hoston 2D welding table plate 3D metal welding table with jigs & welding fixtures It is processed by CNC machining center. It is divided into two series according to the hole system: Φ28 and Φ16. It is dividedinto two-dimensional flexible combination tooling and three-dimension......Keywords:Factory Direct Sale High Precision Nitrided Steel 3D Welding Table, Steel Welding Table, Welding Fixture

Send Inquiry

Product Description

China Top Quality Hoston 2D welding table plate 3D metal welding table with jigs & welding fixtures

Factory Direct Sale High Precision Nitrided Steel 3D Welding Table
Factory Direct Sale High Precision Nitrided Steel 3D Welding Table
It is processed by CNC machining center. It is divided into two series according to the hole system: Φ28 and Φ16. It is divided
into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the
structure.The tooling platform is divided into steel piece platform and cast iron platform and board platform according to

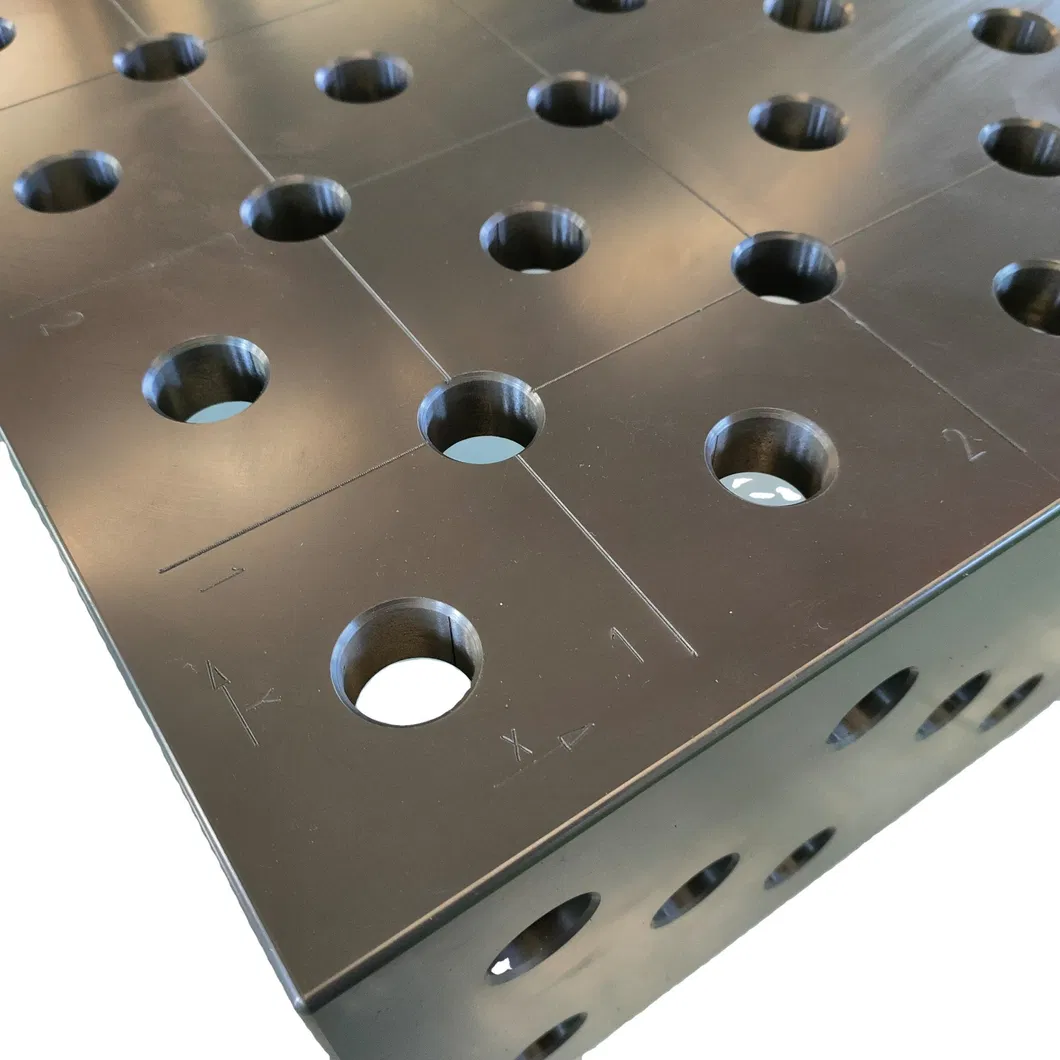

materials. The grid is engraved with corresponding grid lines. According to customer requirements, the millimeter scale can be
drawn on the two right sides of the platform.



Factory Direct Sale High Precision Nitrided Steel 3D Welding Table

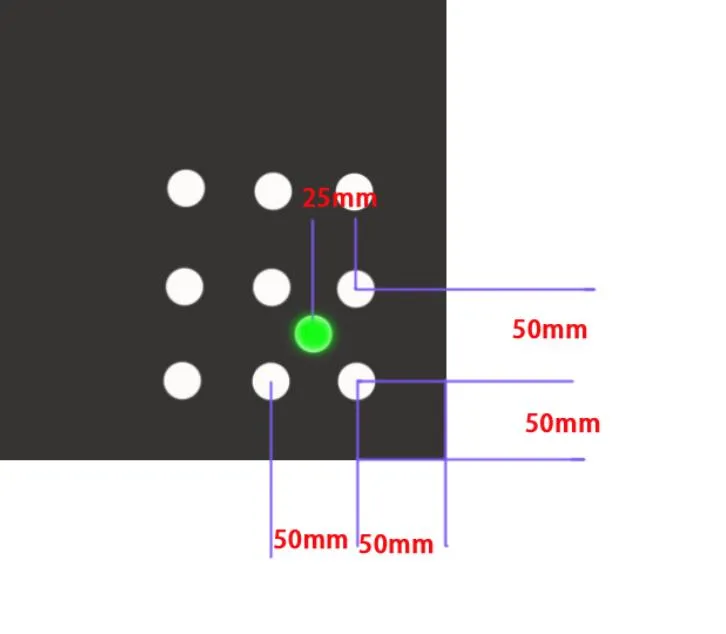

3D Welding Table -- D16 Series
Made of cast iron
5 precision machined work surfaces
Bore diameter: 16 mm
Mesh line 50 mm*50 mm
Hole spacing: 50 mm
Material thickness: approx. 17-23 mm
Side height: 200 mm
Lower side reinforced with ribs.
Factory Direct Sale High Precision Nitrided Steel 3D Welding Table

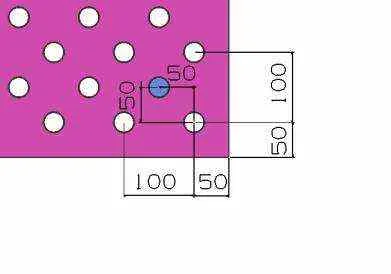

Three-dimensional welding tables -- D28 series
Made of cast iron
5 precision-machined work surfaces
Bore diameter: 28 mm
Mesh line 100 mm * 100 mm
Hole spacing: 100 mm
Material thickness: approx. 17-23 mm
Side height: 200 mm
Lower side reinforced with ribs

Product Specification:

NO Welding Table
Specification		 Dimension Hole Diameter Material
1 4000mm*2000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
2 3000mm*2000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
3 3000mm*1500mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
4 2400mm*1200mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
5 2000mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
6 1500mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
7 1200mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel

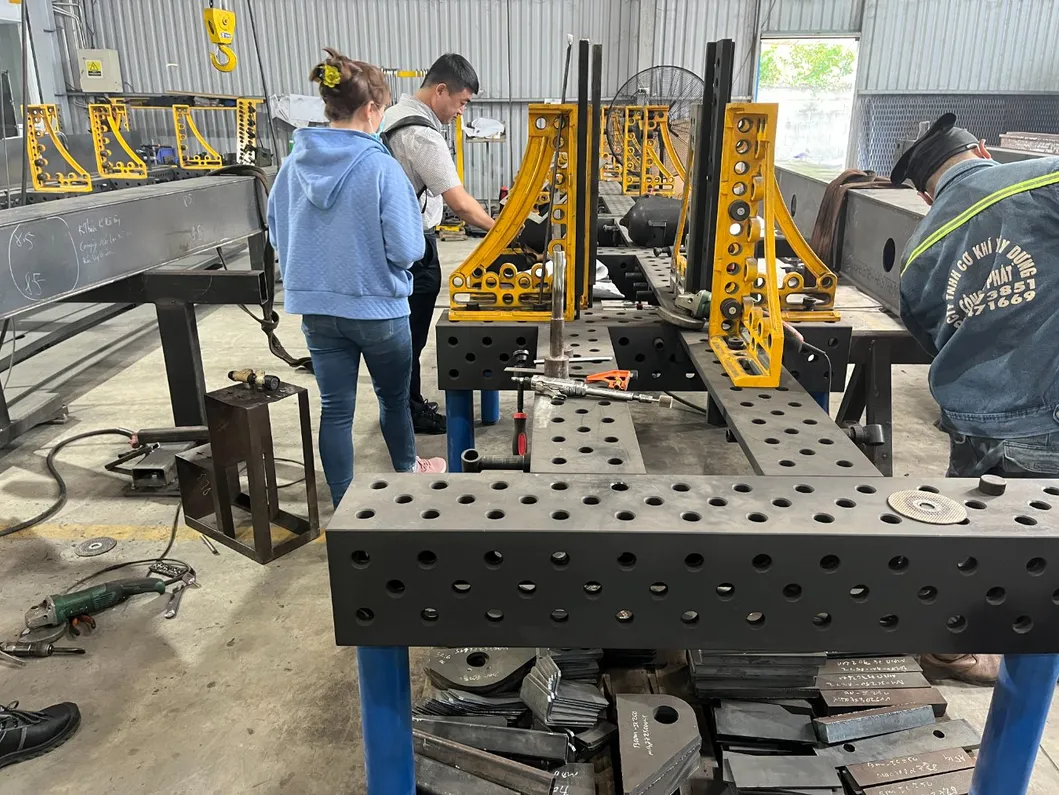

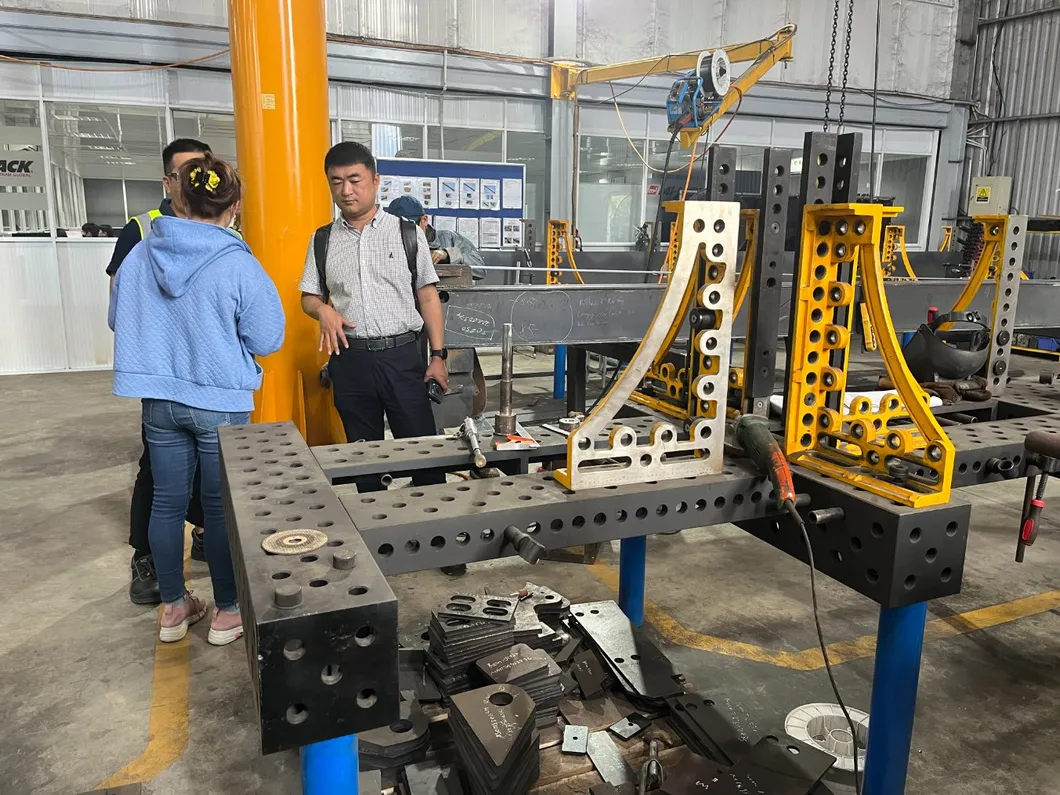

Customer visit:

Factory Direct Sale High Precision Nitrided Steel 3D Welding Table
Factory Direct Sale High Precision Nitrided Steel 3D Welding Table
Factory Direct Sale High Precision Nitrided Steel 3D Welding Table

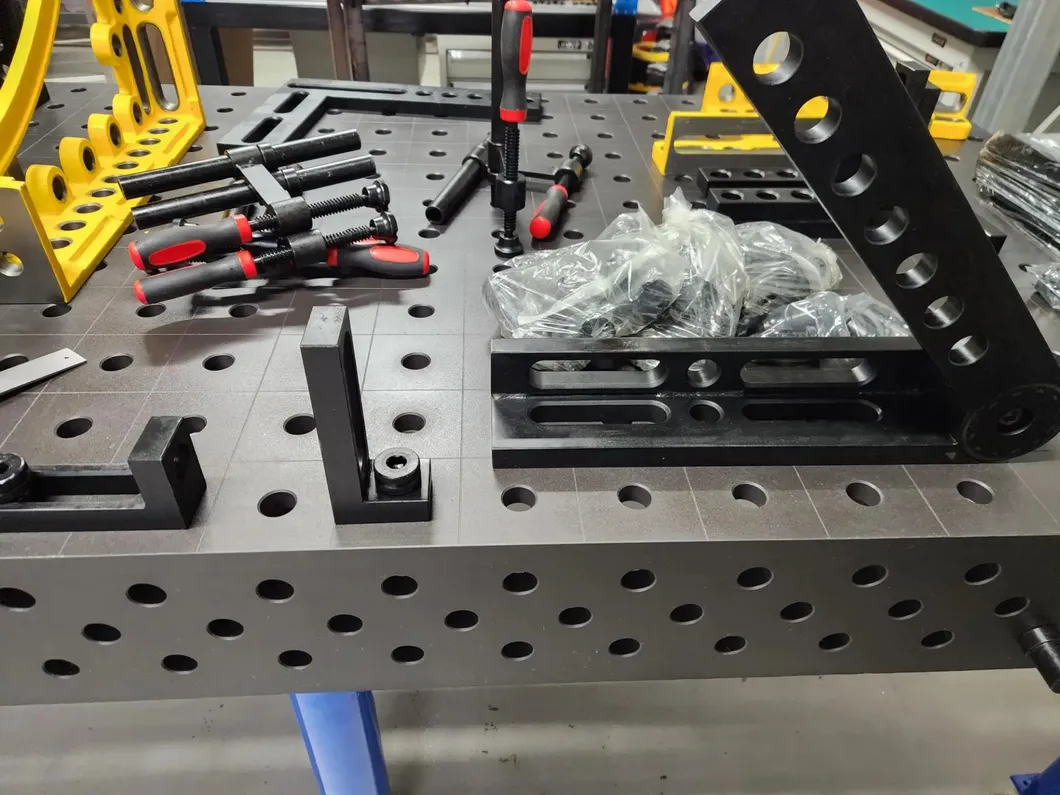

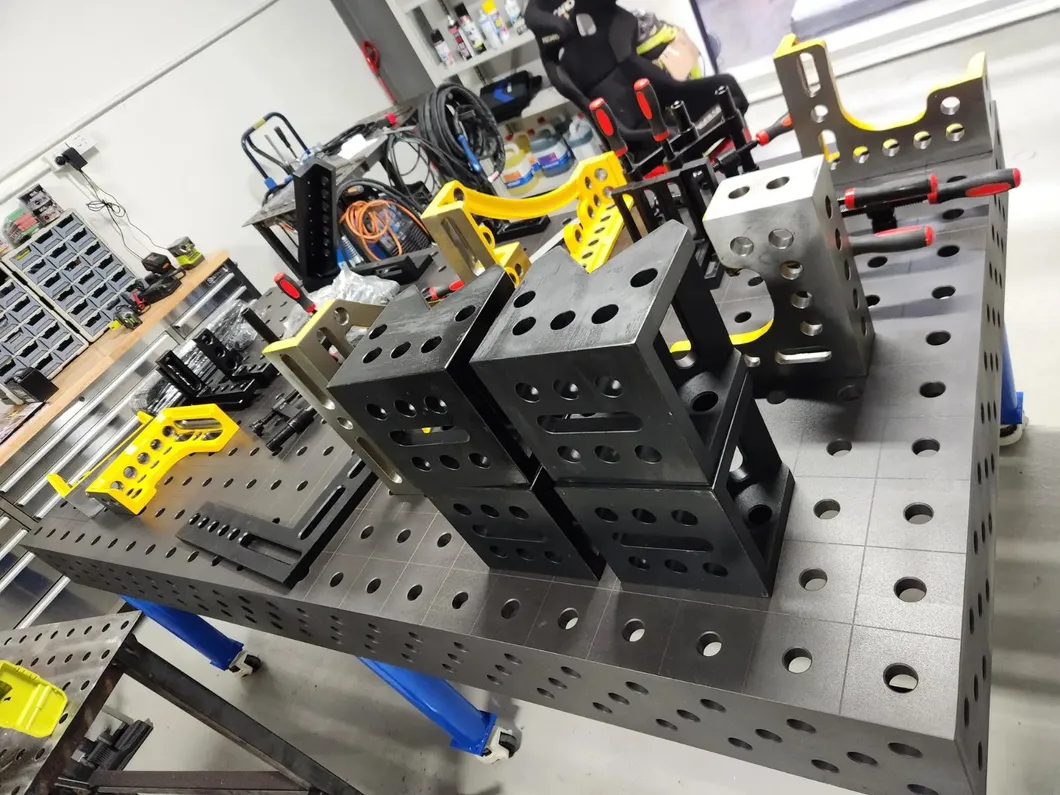

Fixed fixture:

Factory Direct Sale High Precision Nitrided Steel 3D Welding Table
Factory Direct Sale High Precision Nitrided Steel 3D Welding Table
Factory Direct Sale High Precision Nitrided Steel 3D Welding Table

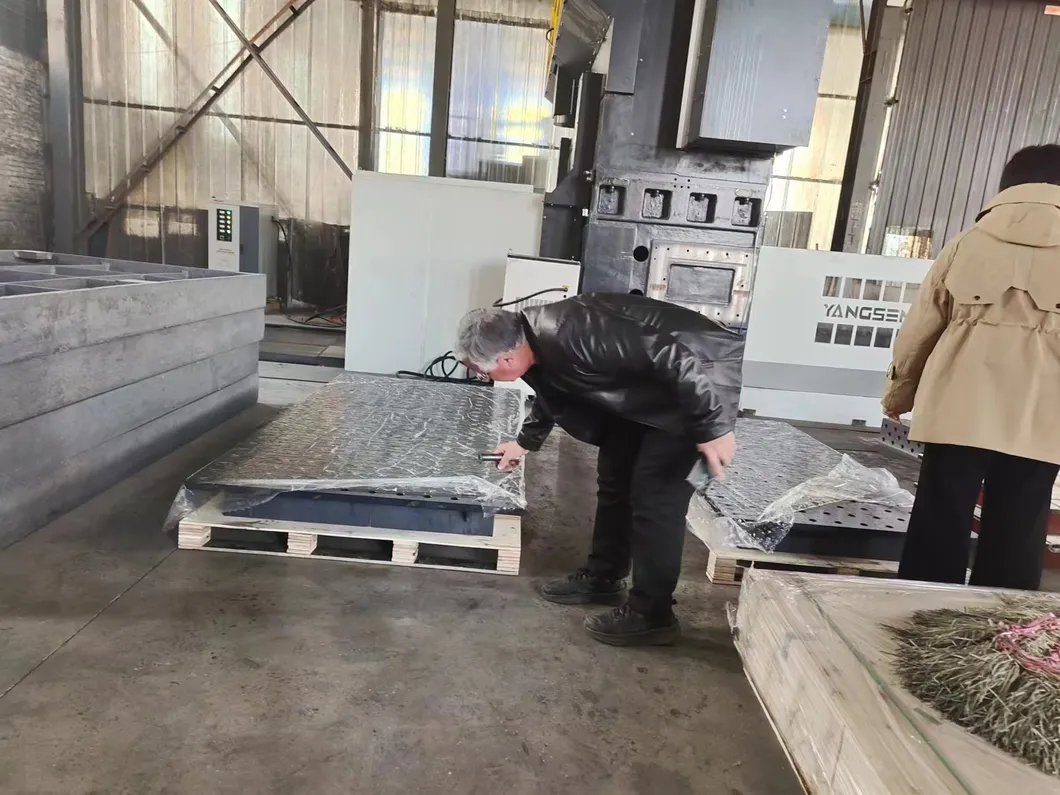

Packing:

Factory Direct Sale High Precision Nitrided Steel 3D Welding Table
Factory Direct Sale High Precision Nitrided Steel 3D Welding Table



Q&A

Q: Are you trading company or manufacturer ?
A: Yes, We are manufacturer.Our factory are professional to produce welding equipment.
Q: Can you do OEM?
A: Yes, we can do OEM products.It's no problem.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods arenot in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost offreight.
Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing.
