Home > Products > Welding table > Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table

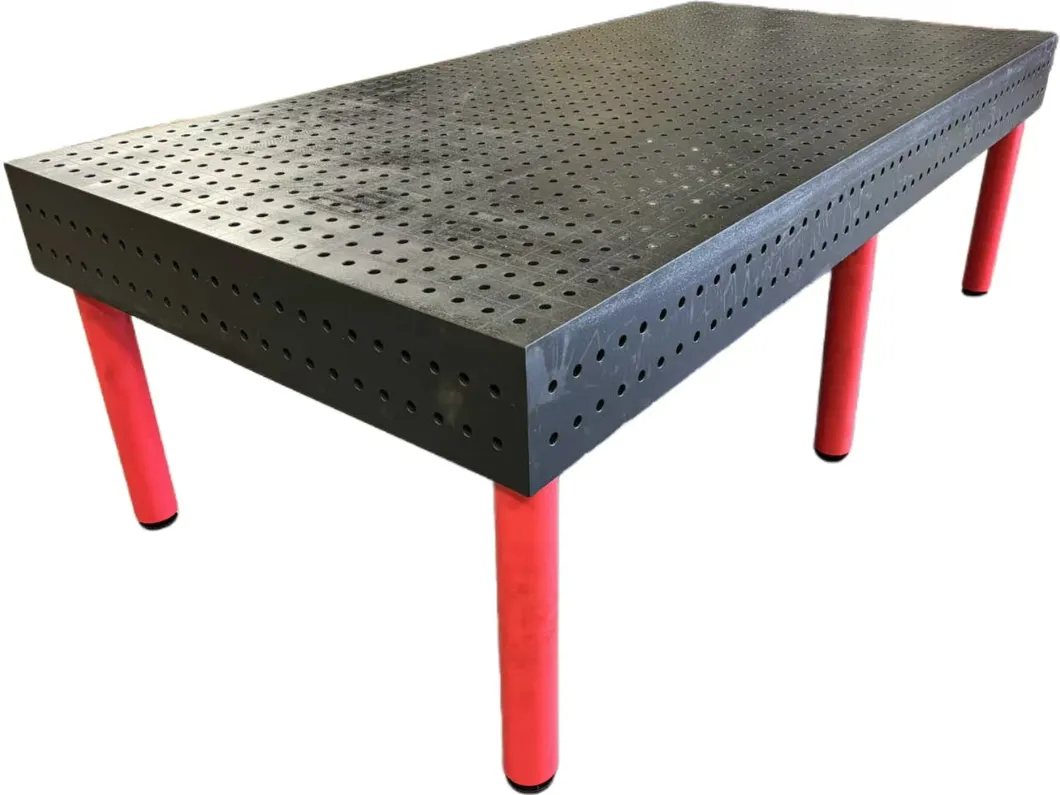

Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table

Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table

China top quality 2D welding table plate with jig and welding fixture 3D metal welding table It is machined by CNC machining center.According to the hole system, it is divided into two series: Φ28 and Φ16.According to the structure, it is divided into two-dimensional flexible combination tooling and......Keywords:Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table, Steel Welding Table, 3D Welding Table

Send Inquiry

Product Description



China top quality 2D welding table plate with jig and welding fixture 3D metal welding table

Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table
Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table
It is machined by CNC machining center.
According to the hole system, it is divided into two series: Φ28 and Φ16.
According to the structure, it is divided into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling.
According to the material, it is divided into steel platform, cast iron platform and nitrided steel platform.


Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table

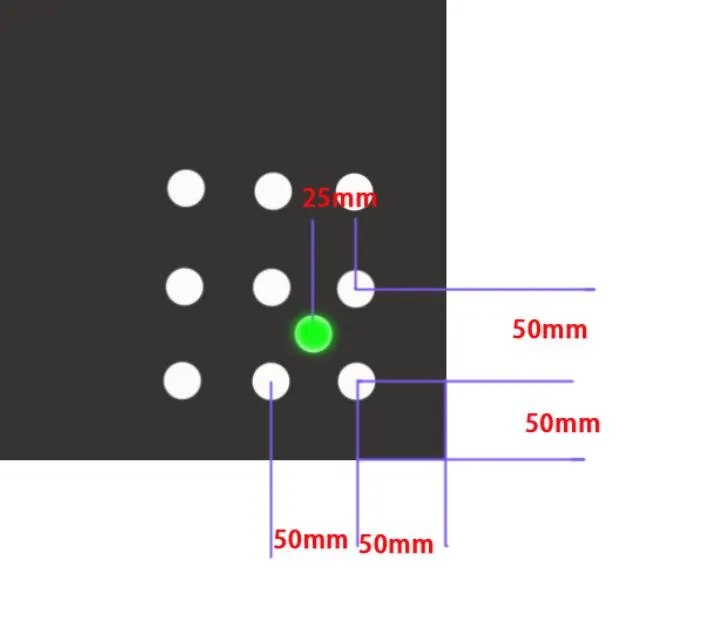

3D welding table -- D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.

Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table

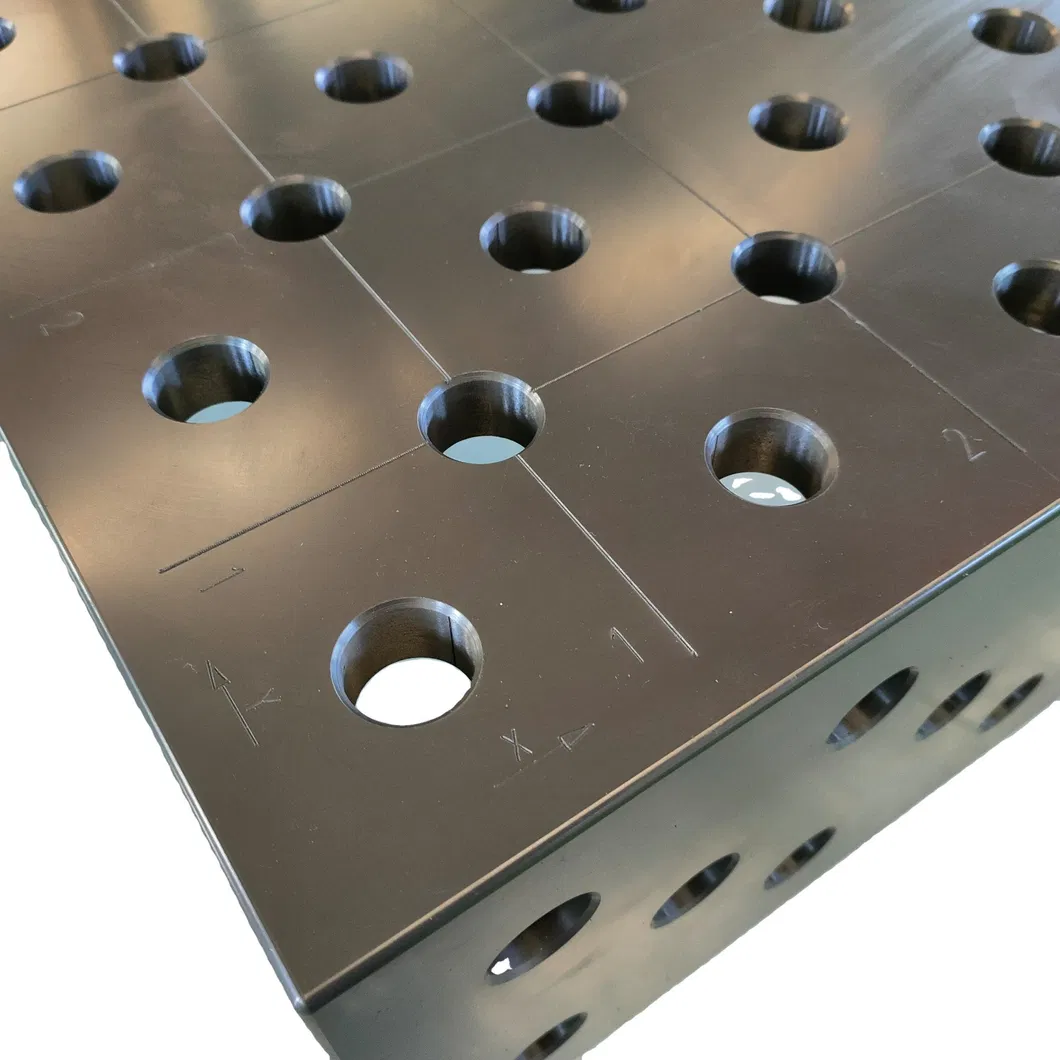

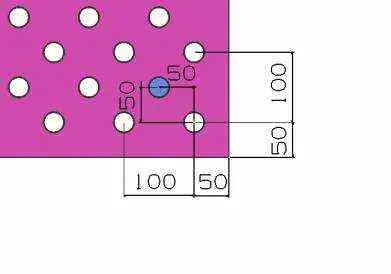

3D welding table -- D28 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs

Product specifications:
NO Welding Table
Specification		 Dimension Hole Diameter Material
1 4000mm*2000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
2 3000mm*2000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
3 3000mm*1500mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
4 2400mm*1200mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
5 2000mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
6 1500mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel
7 1200mm*1000mm 3D/2D  D28/D16 Cast iron/steel/Q355 nitrided steel

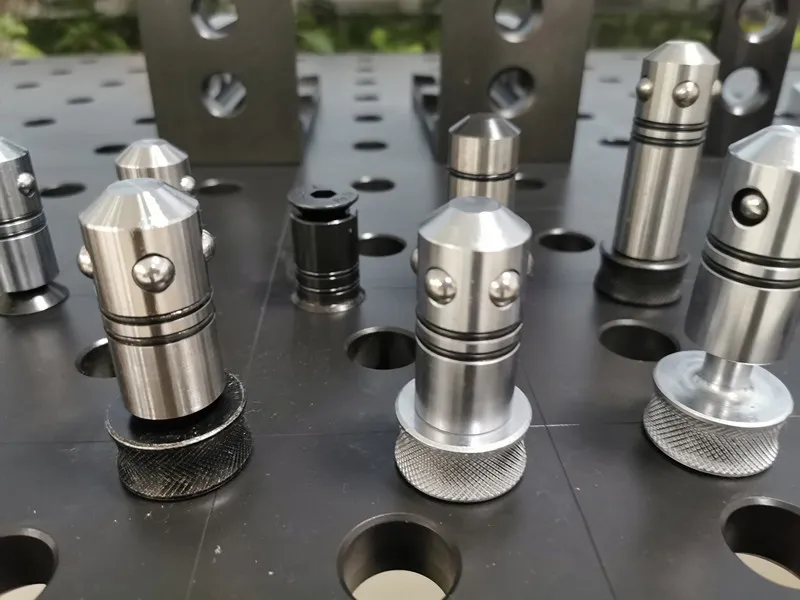

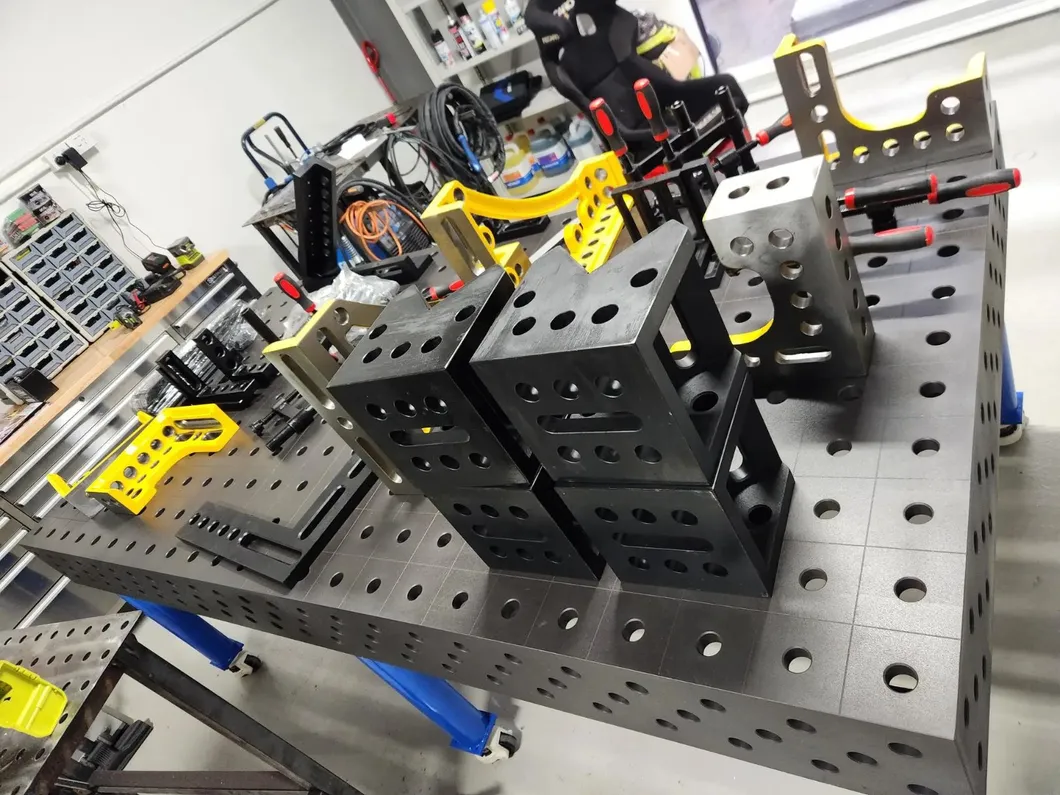

Fixing fixture:

Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table
Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table
Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table

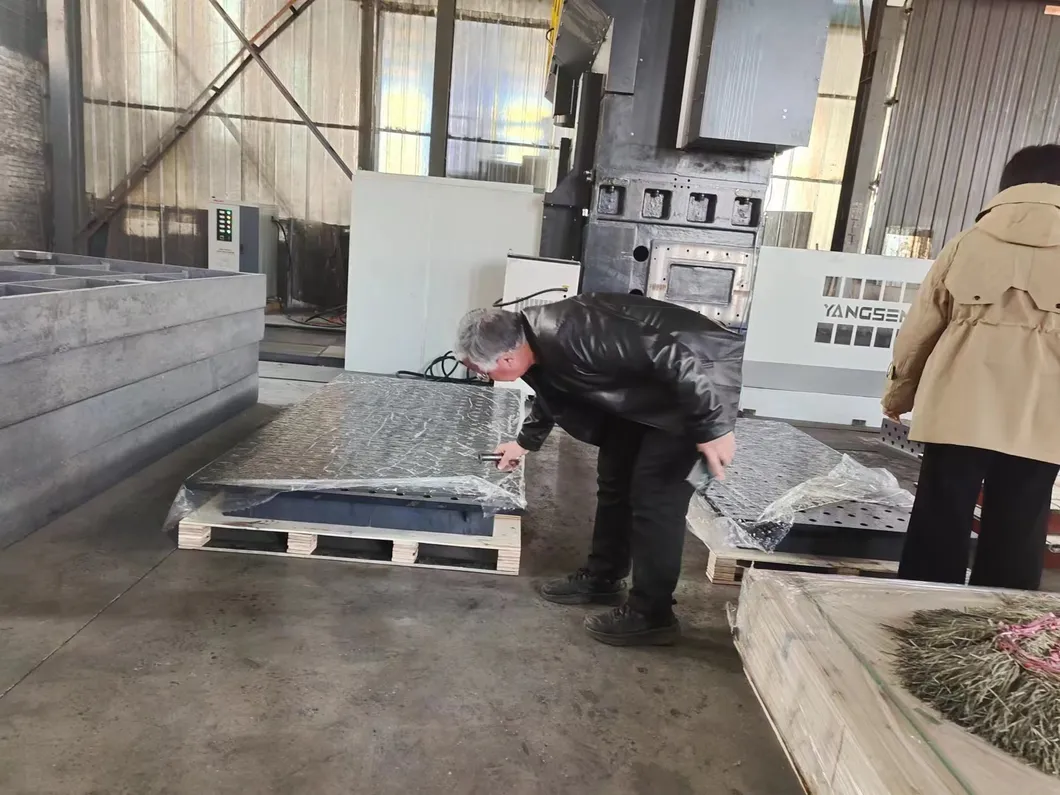

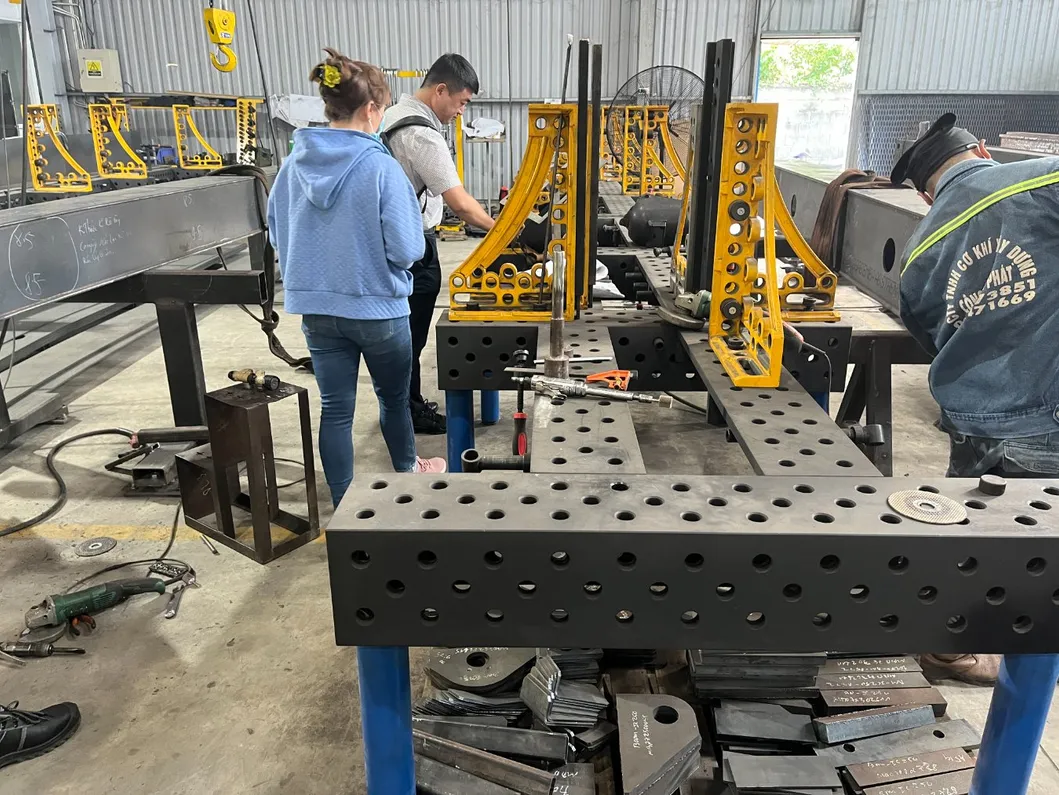

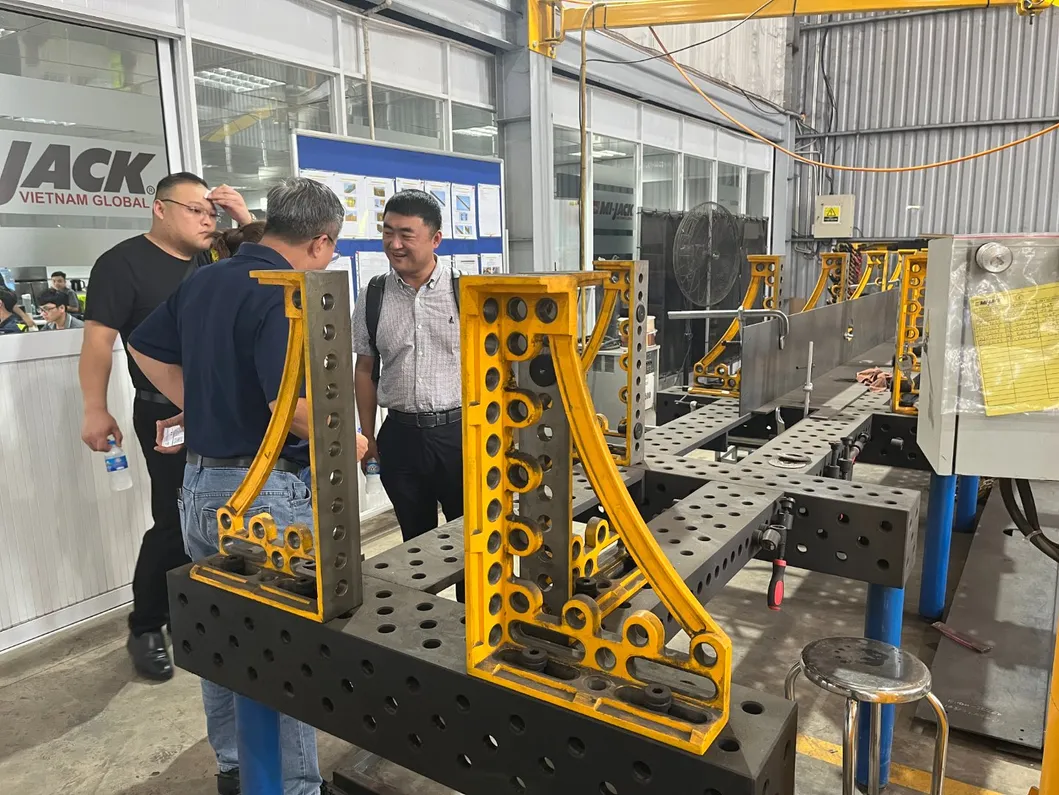

Customer visit:


Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table
Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table
Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table

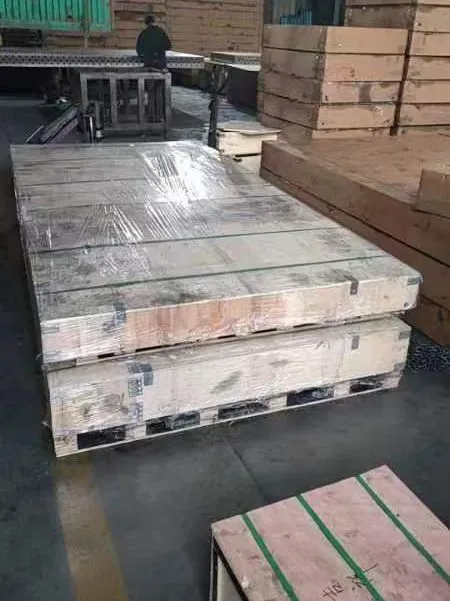

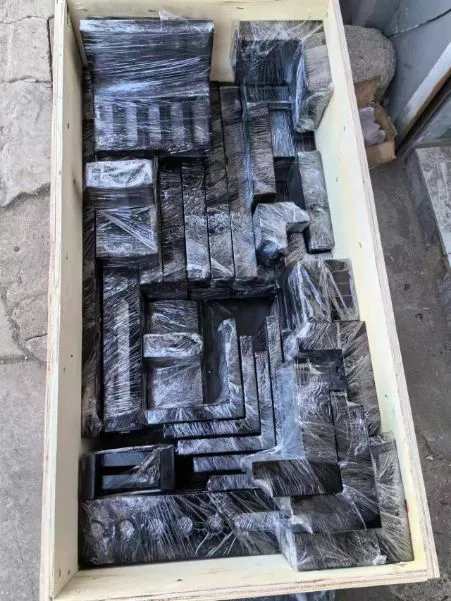

Product packaging:

Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table
Cast Iron Platform 2400X1200 3D Welding Table Nitrided Steel Welding Table



Q&A

Q: Are you trading company or manufacturer ?
A: Yes, We are manufacturer.Our factory are professional to produce welding equipment.
Q: Can you do OEM?
A: Yes, we can do OEM products.It's no problem.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods arenot in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost offreight.
Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing.
