Best Selling Nitriding 3D 2D Welding Table Welding Station Welding Platform

Product Description

Product Description

China Top Quality Hoston 2D welding table plate 3d metal welding table with jigs & welding fixtures

It is processed by CNC machining center. It is divided into two series according to the hole system: Φ28 and Φ16. It is divided
into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure.The tooling platform is divided into steel piece platform and cast iron platform and board platform according to materials. The grid is engraved with corresponding grid lines. According to customer requirements, the millimeter scale can be drawn on the two right sides of the platform.

Best Selling Nitriding 3D 2D Welding Table Welding Station Welding Platform

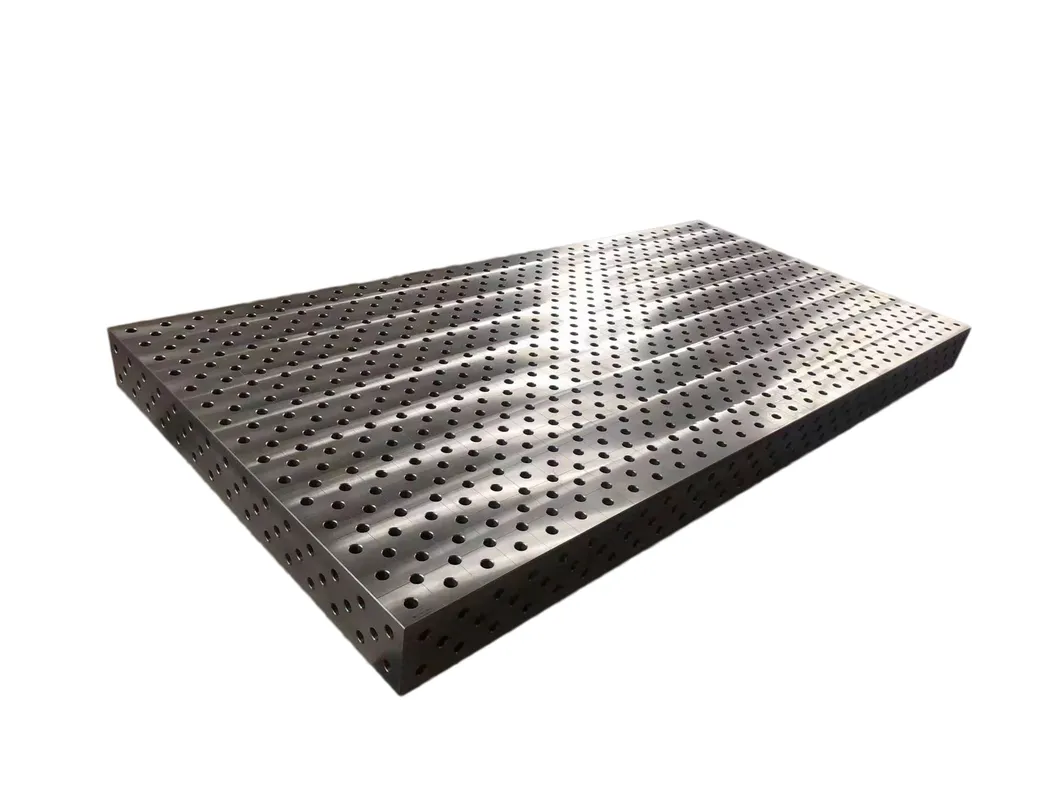

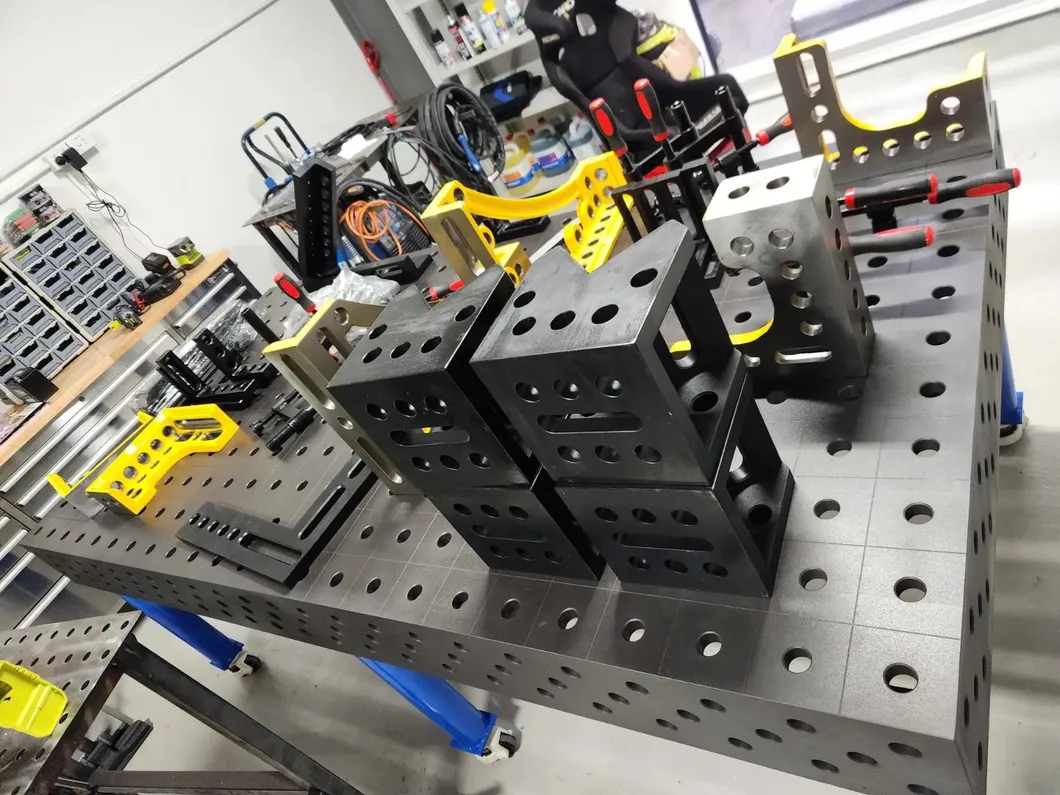

3D welding table -- D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.

3D welding table -- D28 series

Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs

Product Specifications

NO,	Welding Table Specification	Dimension	Hole Diameter	Material
1	4000mm*2000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
2	3000mm*2000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
3	3000mm*1500mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
4	2400mm*1200mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
5	2000mm*1000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
6	1500mm*1000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
7	1200mm*1000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345
8	1000mm*1000mm	3D/2D	D28/D16	Cast Iron /Stainless Steel /Q345

Product Features

Modularity and flexibility:
  Can be connected and changed arbitrarily according to the shape of workpiece.
High precision:
  The precision can reach decimillimetre(dmm) for fixing and clamping.
Quick fixing and clamping:
  Only spending a few minutes to fix and clamp workpieces from one to another.
Ease to operate:
  Only 2 hours, any worker can learn how to use it quickly.
High price-performance ratio:
  1 set of modular flexible fixture can replace all traditional dedicated fixtures.Saved a lot of time, labor, material resources and funds for enterprises.
Clean, tidy and environmental Friendly:
  Compared with mountains of rusty dedicated fixtures, modular flexible fixtures are the optimal choice.

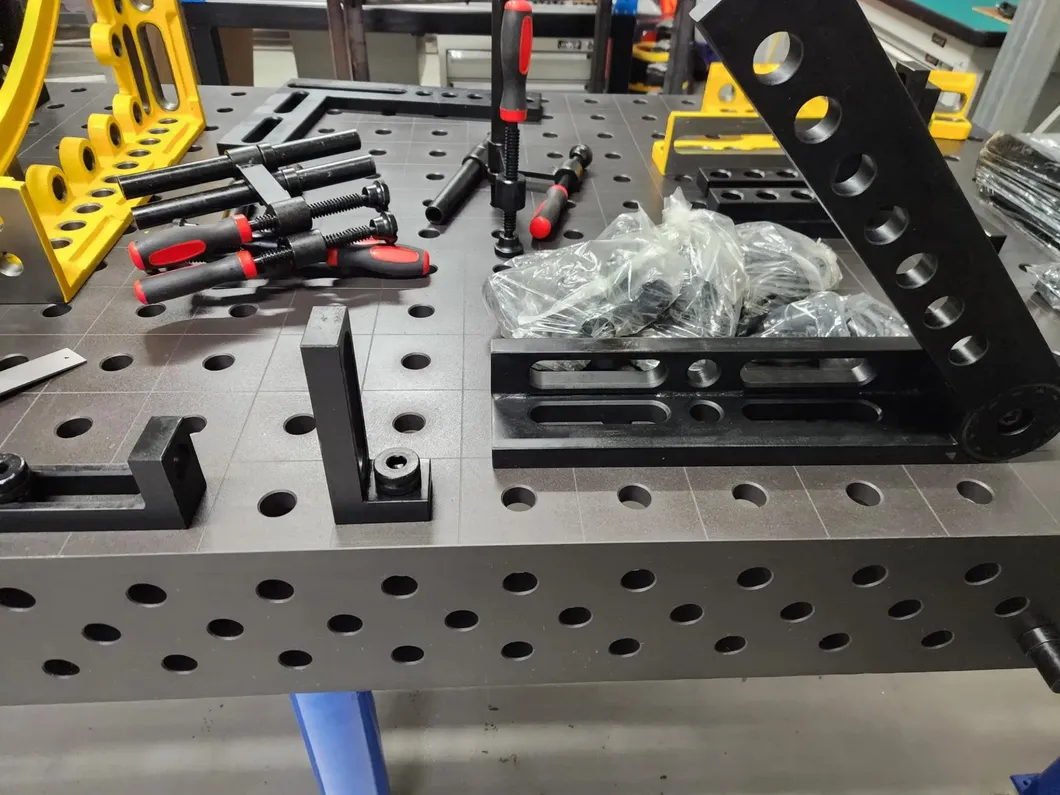

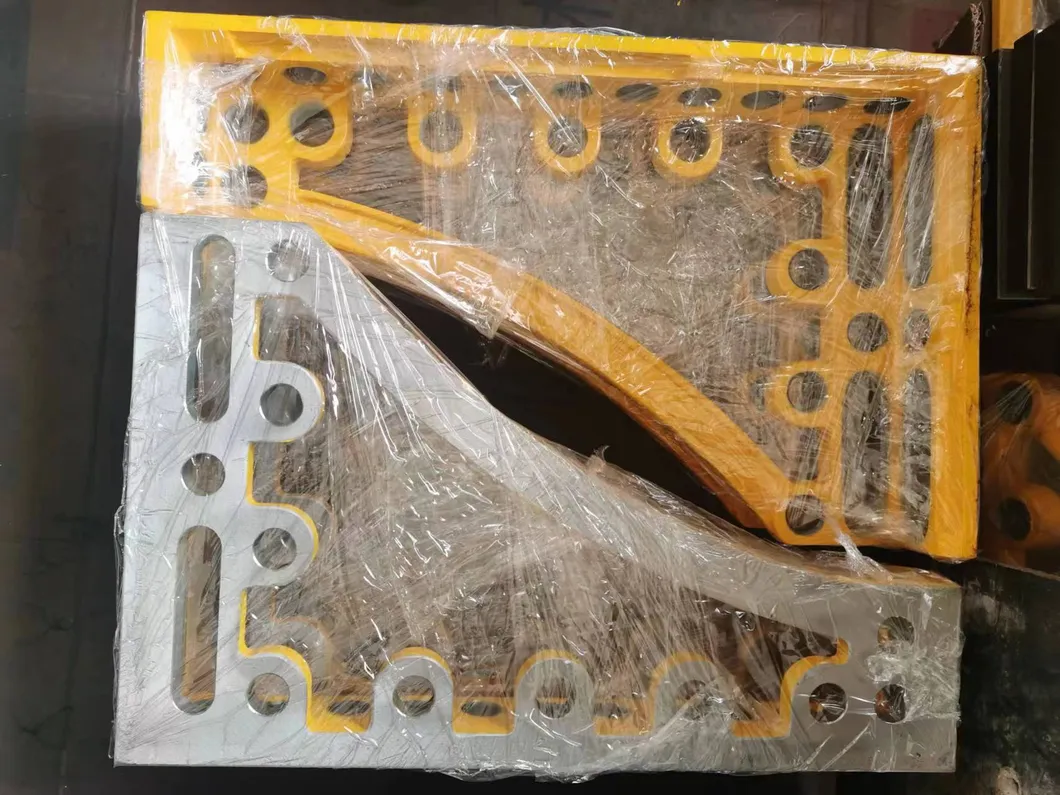

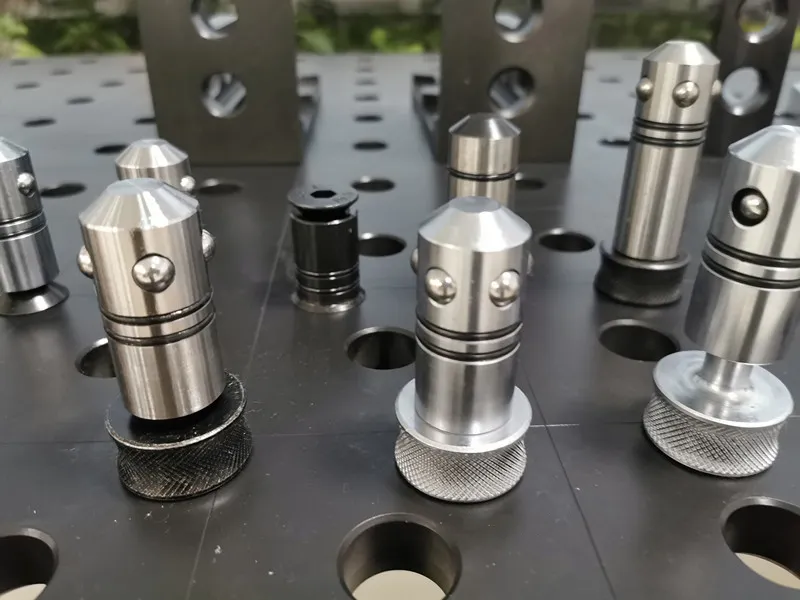

Related Product Accessories

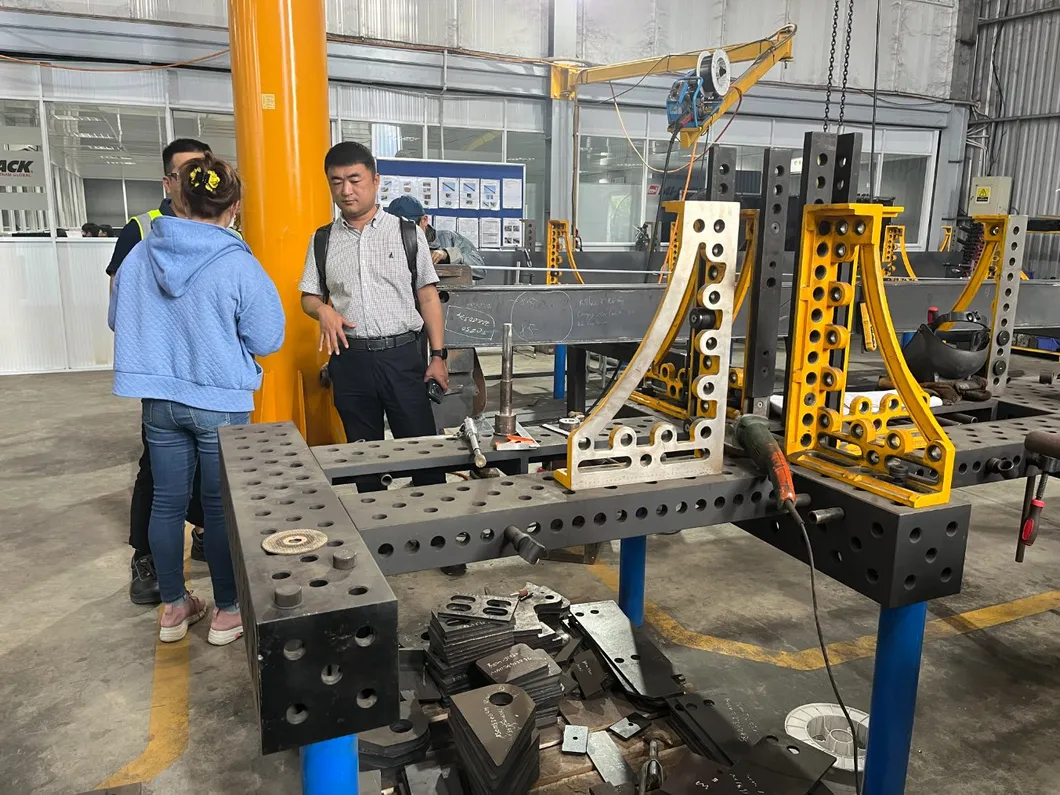

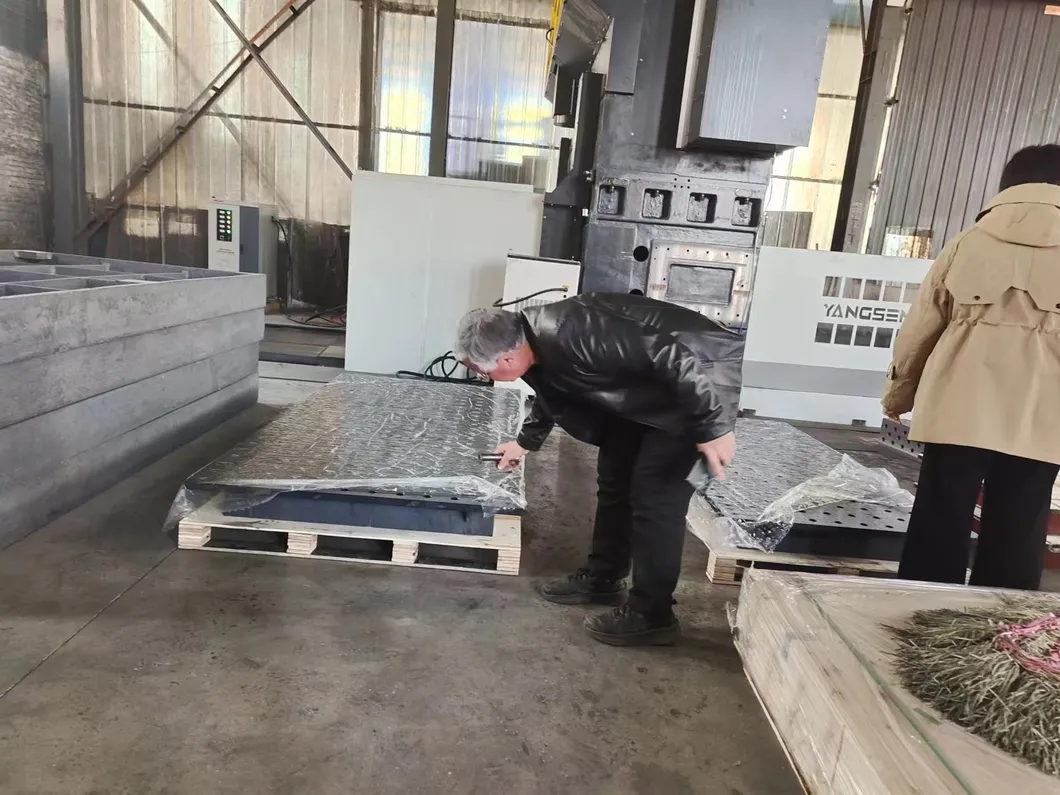

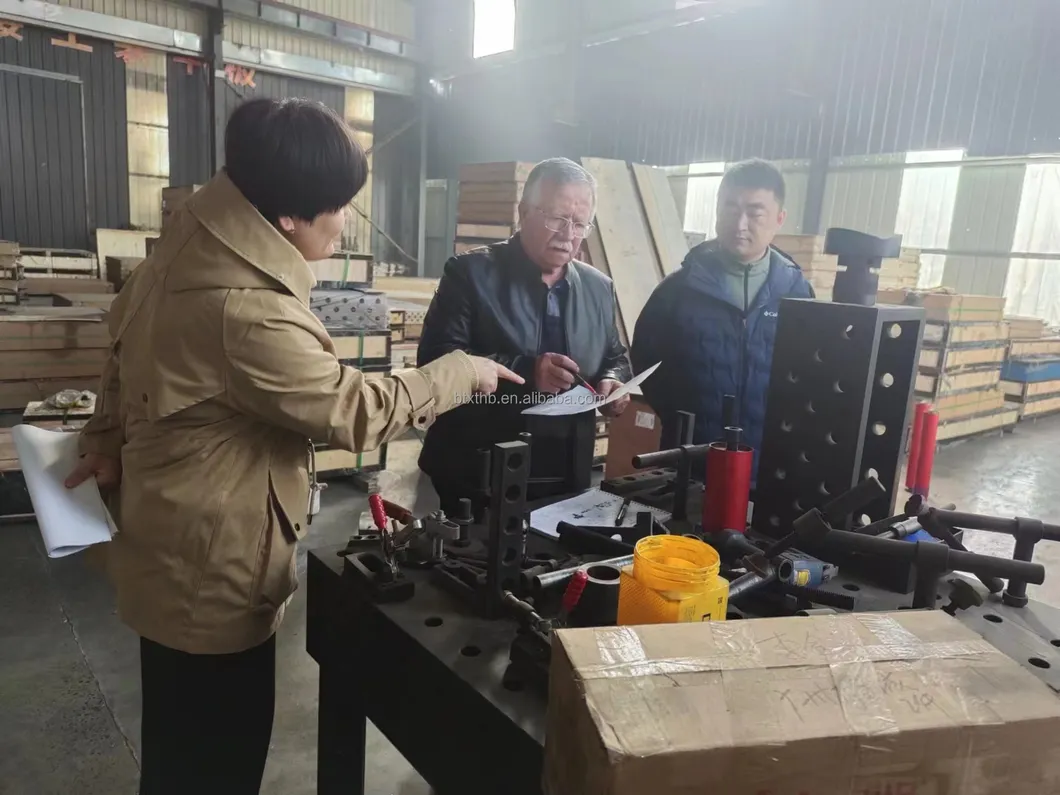

Customer Visits Factory

Product Packaging

FAQ

Q1. Are you manufacturer or trade company ?
We are professional manufacturer in China , and have in this line almost 10 years .
Q2. Would it be possible for us to visit your factory ?
Sure, welcome you at any time !
Q3 . Will your company supply samples ?
Yes ,we do .
Q4. How can we get the quotation ?
Please let us know the specifications , such as the material ,micron ,apply in which industry etc .
Q5.what's the lead time ?
Usually is 5-15 days after we received your payment .
Q6 . what is the packaging ?
Inner packing -poly bags .Outer packing -Export cartons .
Q7. Can I get your products with our logo and design ?
Yes ,you can . Most of our products can be customized according to your requirements .
Q8. Which payment terms are you accept ?
T/T , L/C .Western Union , Money gram are available for us . we accept 30% T/T in advance , the balance should be paid before
shipping .
