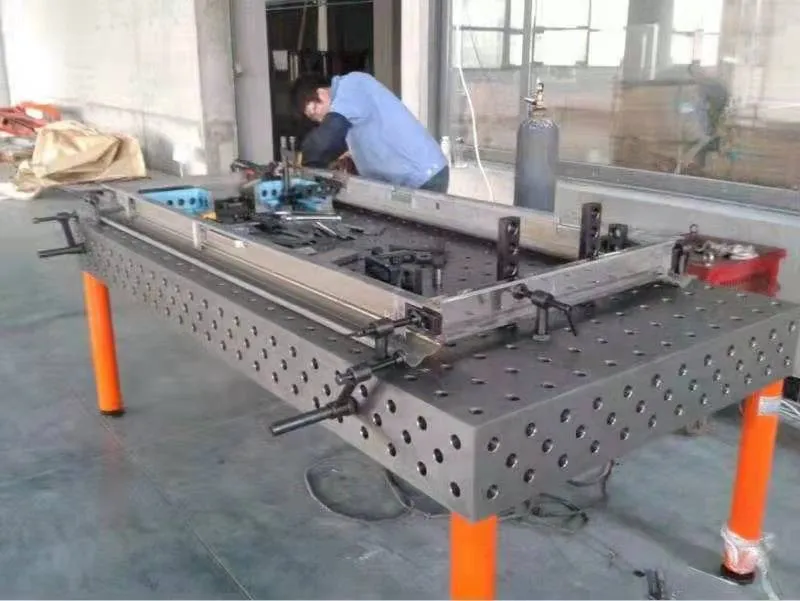

Adjustable Rotating Welding Table Accessories 3D Modular Welding Table 28mm 16mm Cast Iron Steel

Product Description It is processed by CNC machining center. It is divided into two series according to the hole system: Φ28 and Φ16. It is divided into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure.The tooling platform is ......Keywords:Adjustable Rotating Welding Table Accessories 3D Modular Welding Table 28mm 16mm Cast Iron Steel, 3D Welding Table System for Welding Works, 3D Clamping and Welding Table

Product Description

It is processed by CNC machining center. It is divided into two series according to the hole system: Φ28 and Φ16. It is divided into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure.The tooling platform is divided into steel piece platform and cast iron platform and board platform according to materials. The grid is engraved with corresponding grid lines. According to customer requirements, the millimeter scale can be
drawn on the two right sides of the platform.

3D welding table -- D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm

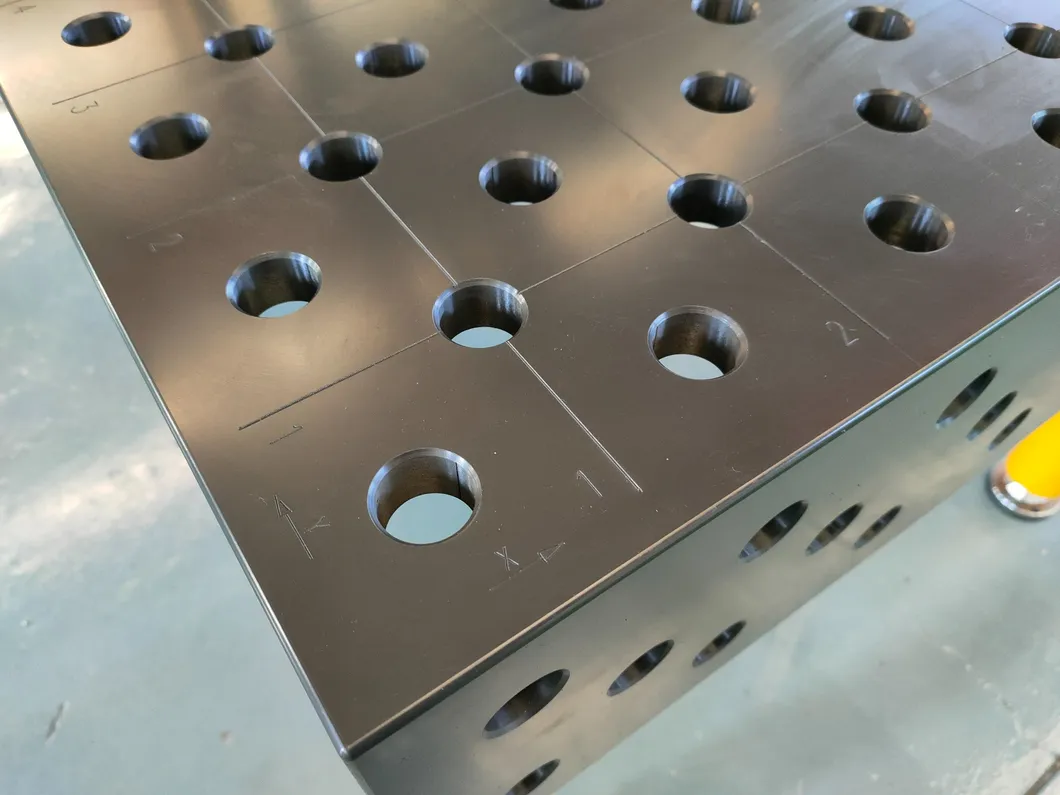

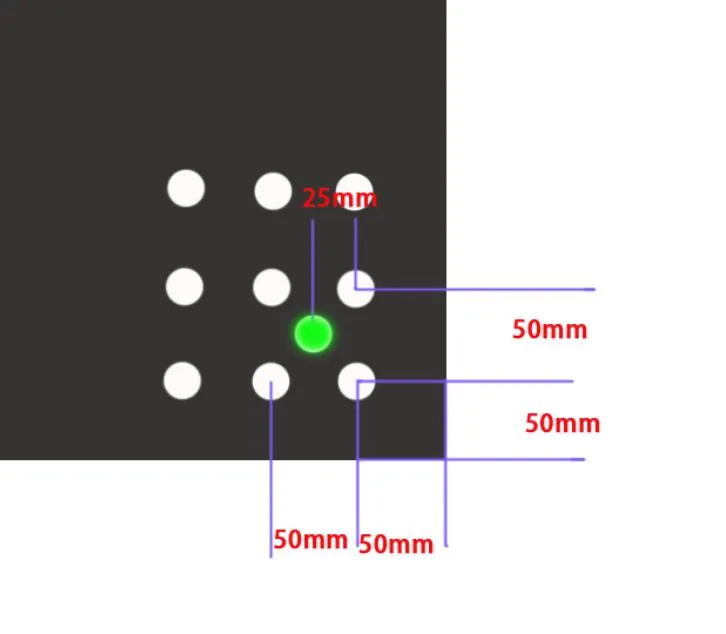

Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.

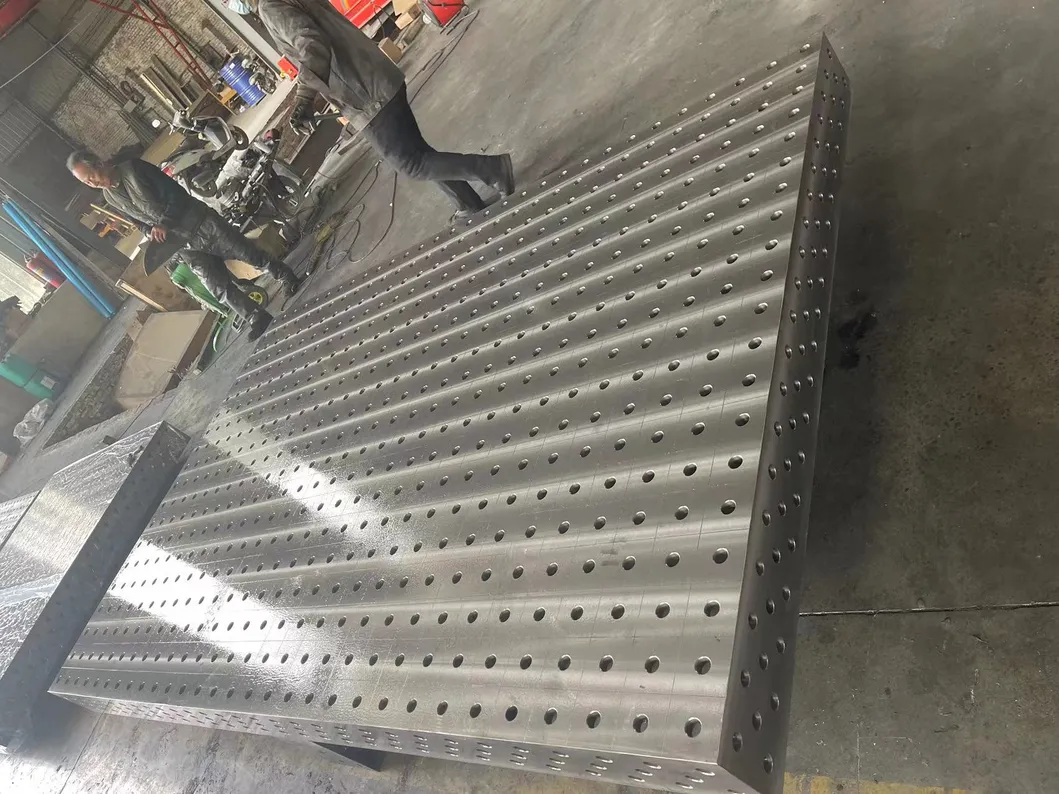

3D welding table -- D28 series

Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs

No	Welding Table Specification	Dimension	Hole Diameter	Hole Diameter
1	4000mm*2000mm	3D/2D	D28/D16	Cast Iron/Stainless Steel/Q345
2	3000mm*2000mm	3D/2D	D28/D16	Cast Iron/Stainless Steel/Q345
3	3000mm*1500mm	3D/2D	D28/D16	Cast Iron/Stainless Steel/Q345
4	2400mm*1200mm	3D/2D	D28/D16	Cast Iron/Stainless Steel/Q345
5	2000mm*1000mm	3D/2D	D28/D16	Cast Iron/Stainless Steel/Q345
6	1500mm*1000mm	3D/2D	D28/D16	Cast Iron/Stainless Steel/Q345
7	1200mm*1000mm	3D/2D	D28/D16	Cast Iron/Stainless Steel/Q345
8	1000mm*1000mm	3D/2D	D28/D16	Cast Iron/Stainless Steel/Q345

Botou Xintian Environmental Protection Equipment Co., Ltd has a superior geographical position, West 106 National Highway, North Shihuang Expressway, East 104 National Highway, Jingfu Expressway, Beijing- Shanghai Railway, Highway and Railway crisscross, and the traffic is very convenient. The formation of traffic network provides a time guarantee for the transportation and after-sales service of products.

Q1: Whether your equipment have passed some international standard?
A1: Now the quality of our shot blasting machine has met ISO9001 ISO14001 CE international standard
Q2: How long is your equipment warranty?
A2: General the warranty is one year (except quick-wear spare parts)
Q3: Whether your company can supply installation?
A3: Online or On-site installation.
Q4: How long is your delivery time ?
A4: Generally it is within 7 days if the goods are in stock.or it is 10-50days if the goods are not in stock,it is according to quantity
Q5: What capacity of we can supply?
A5: We can as your needs to professional design.
