3D Welding Table
3D flexible welding platform is an advanced welding tool, which can realize high-precision welding in complex environment. This platform can not only be applied to traditional welding processes, but also for some special welding needs, such as the welding of curved surfaces and special-shaped workpieces. In manufacturing, it provides more possibilities for artisans and more flexibility for the manufacture of products.

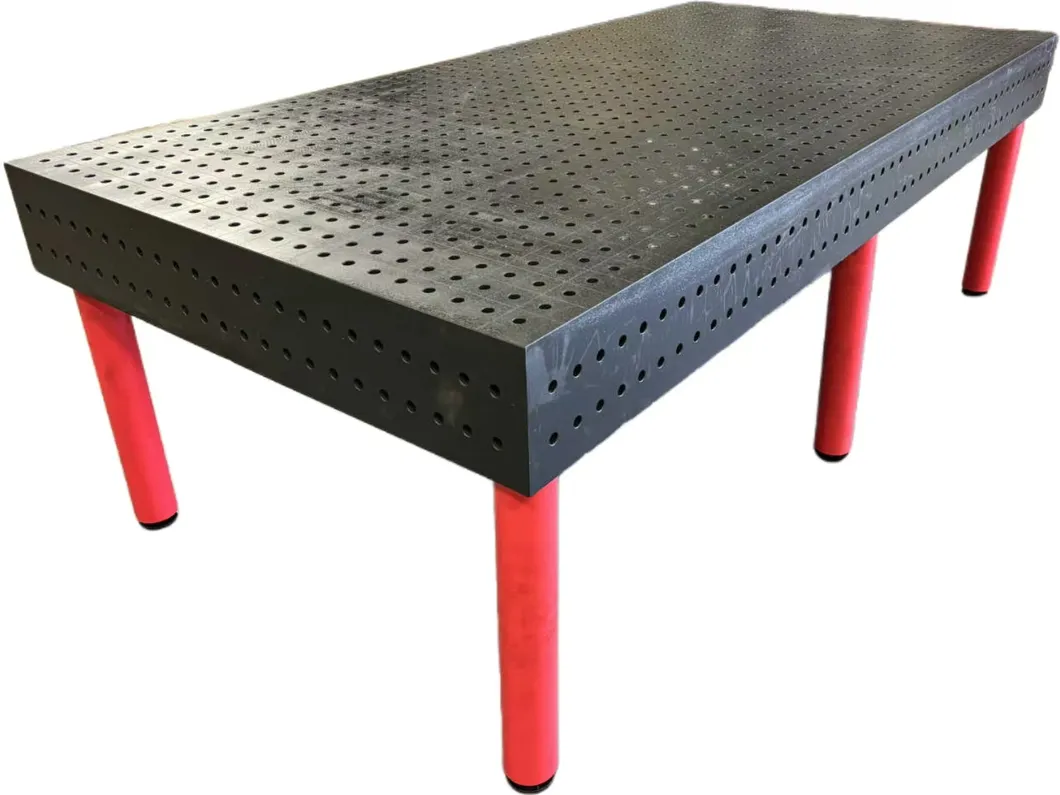

3D welding table -- D16 series
Be made of cast iron

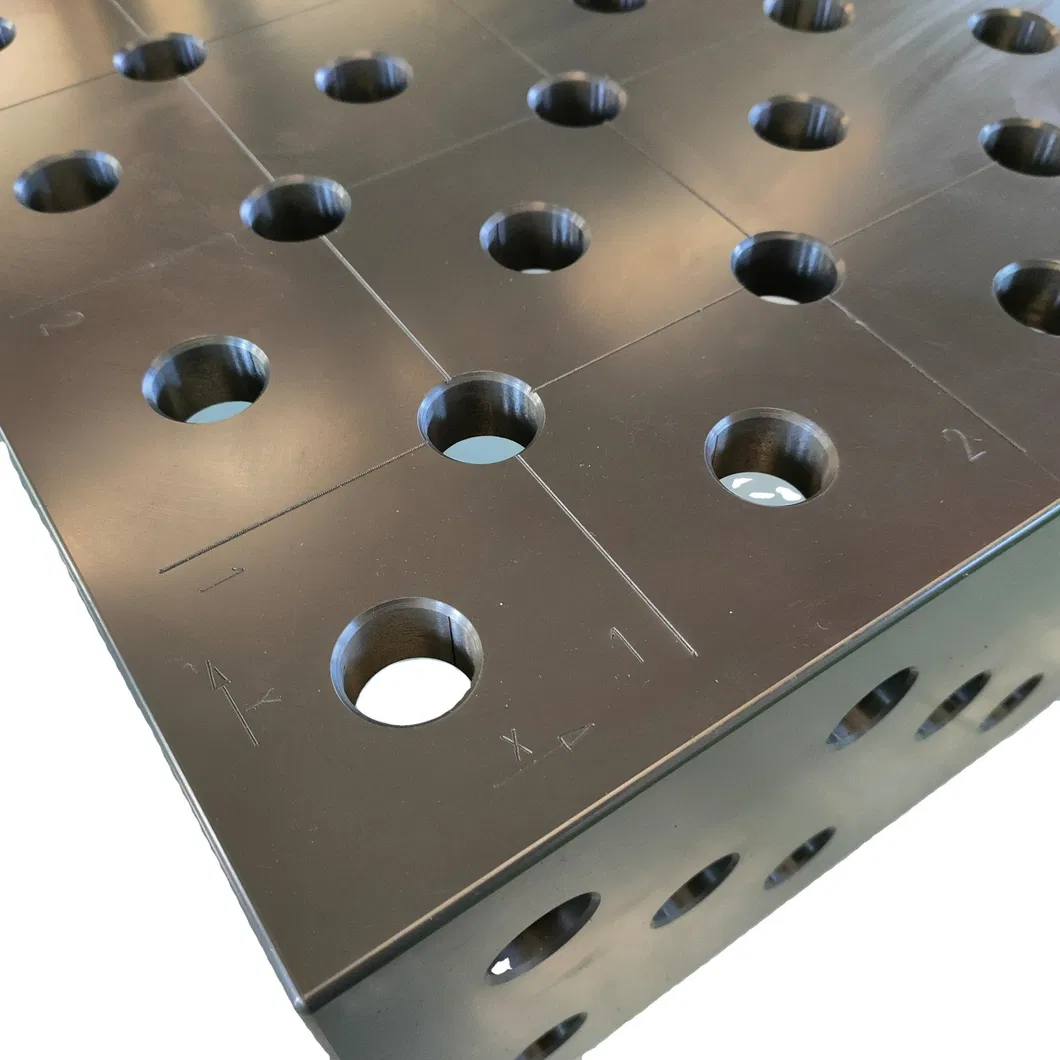

5 precision machined working surfaces

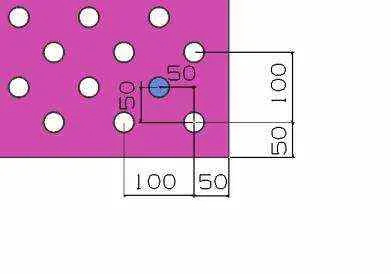

Hole diameter: 16mm

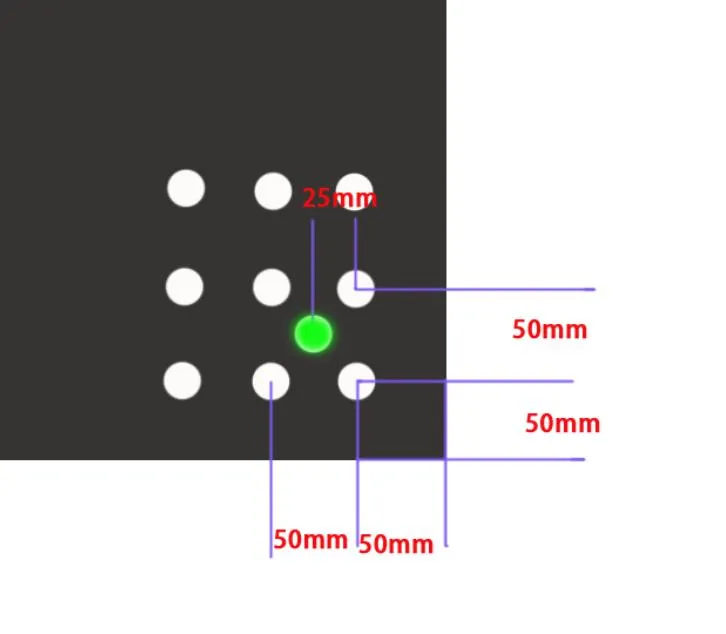

Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.
3D welding table -- D28 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
Compared with traditional manual welding, the 3D welding platform has the following advantages:
1. Able to achieve large-scale, efficient and high-precision welding operations;
2. The welding process does not require manual intervention and can avoid errors caused by human factors;
3. It can avoid deformation during welding;
4. Seamless welding and multi-angle welding can be performed to improve welding quality.
Technical Parameters of 3D Casting Platform
| NO |
Welding Table
Specification |
Dimension |
Hole Diameter |
Material |
| 1 |
4000mm*2000mm |
3D/2D |
D28/D16 |
Cast iron/steel/Q355 nitrided steel |
| 2 |
3000mm*2000mm |
3D/2D |
D28/D16 |
Cast iron/steel/Q355 nitrided steel |
| 3 |
3000mm*1500mm |
3D/2D |
D28/D16 |
Cast iron/steel/Q355 nitrided steel |
| 4 |
2400mm*1200mm |
3D/2D |
D28/D16 |
Cast iron/steel/Q355 nitrided steel |
| 5 |
2000mm*1000mm |
3D/2D |
D28/D16 |
Cast iron/steel/Q355 nitrided steel |
| 6 |
1500mm*1000mm |
3D/2D |
D28/D16 |
Cast iron/steel/Q355 nitrided steel |
| 7 |
1200mm*1000mm |
3D/2D |
D28/D16 |
Cast iron/steel/Q355 nitrided steel
|

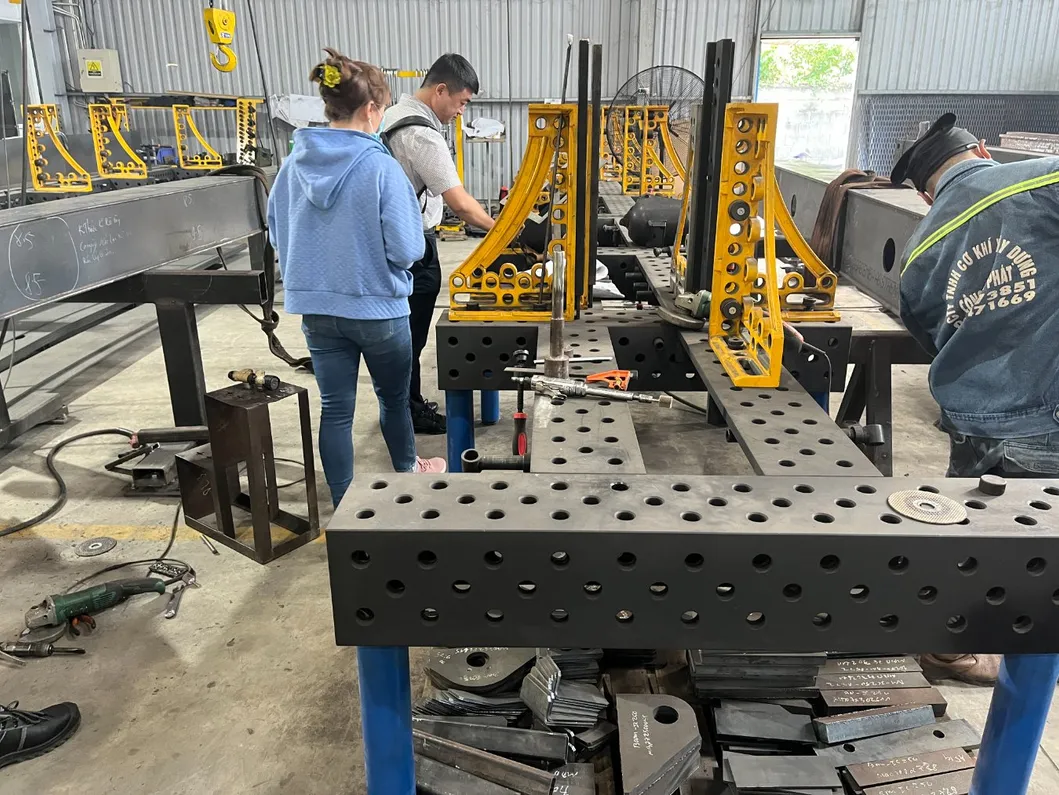

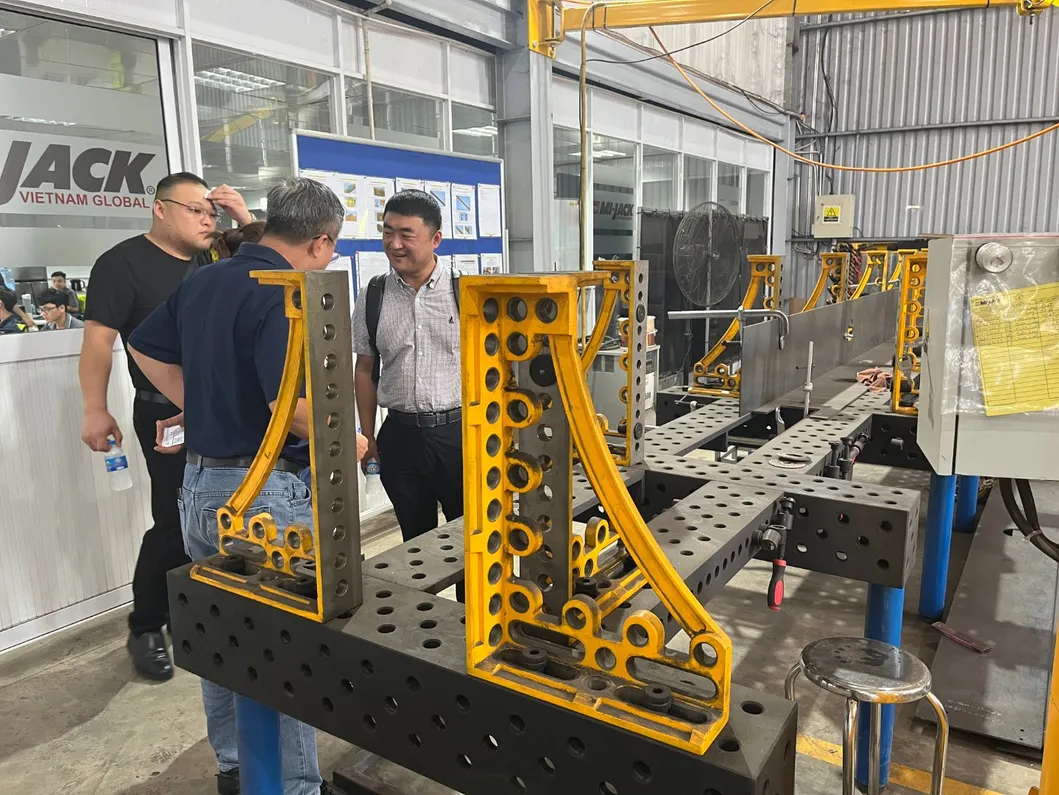

Customer visit

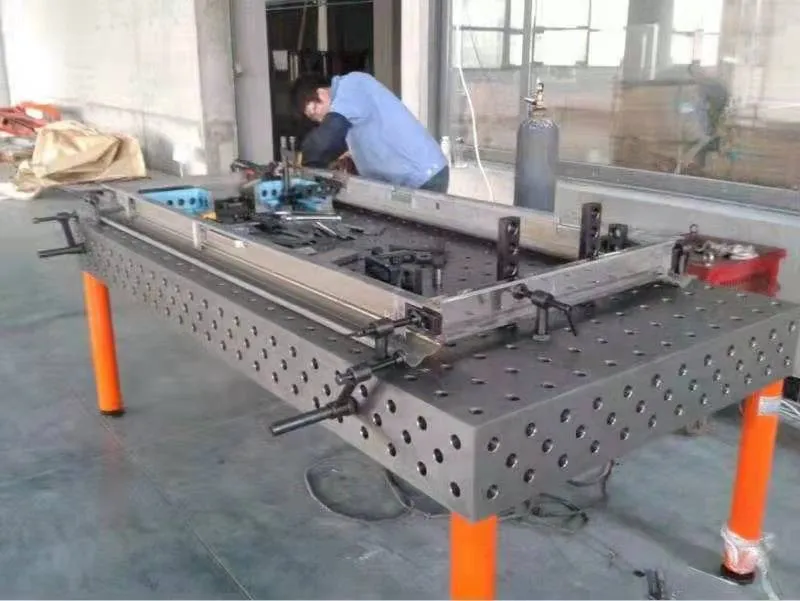

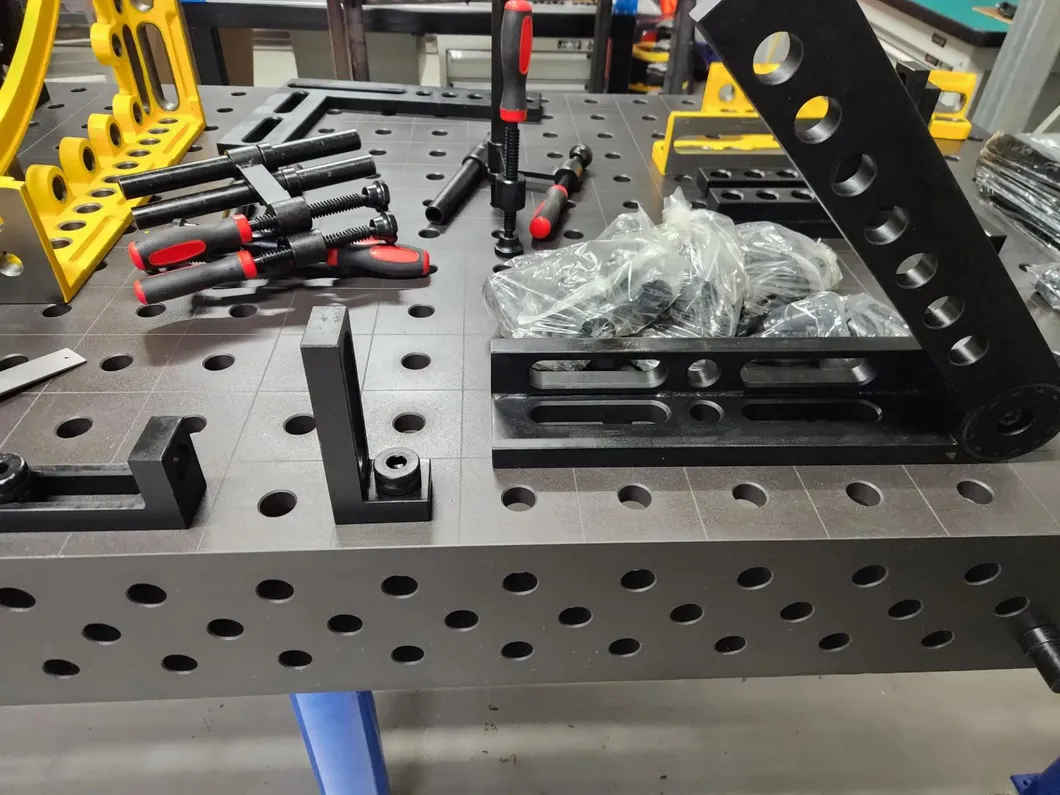

Fix fixture

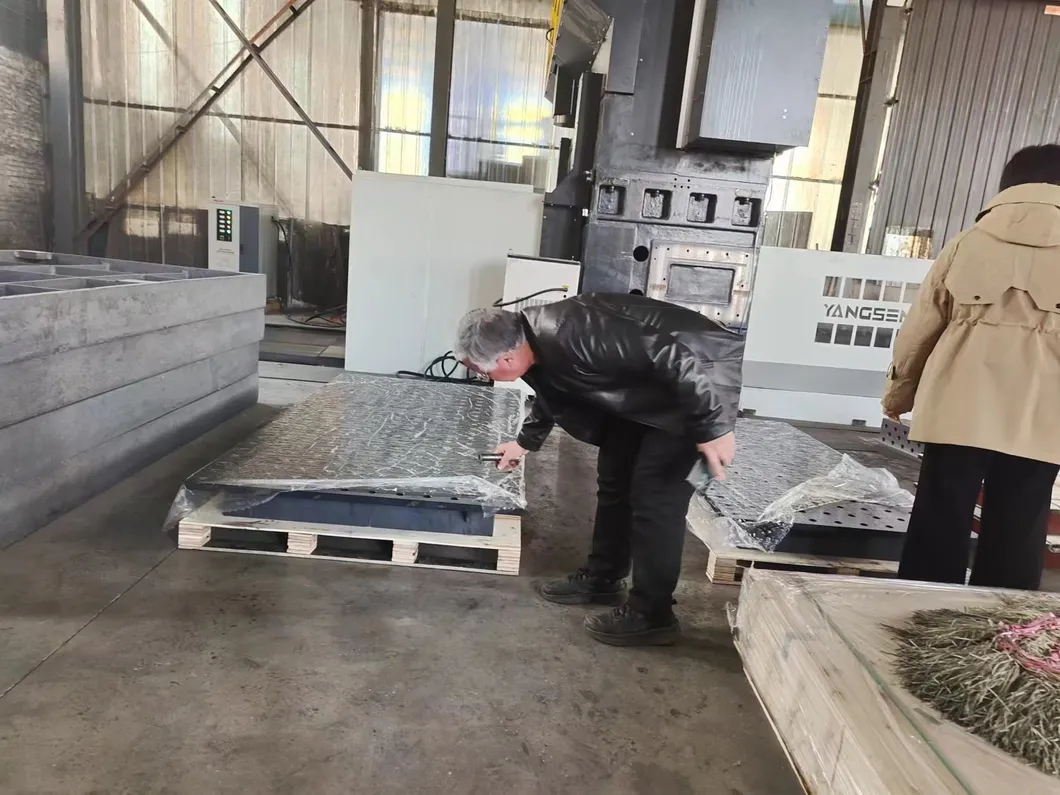

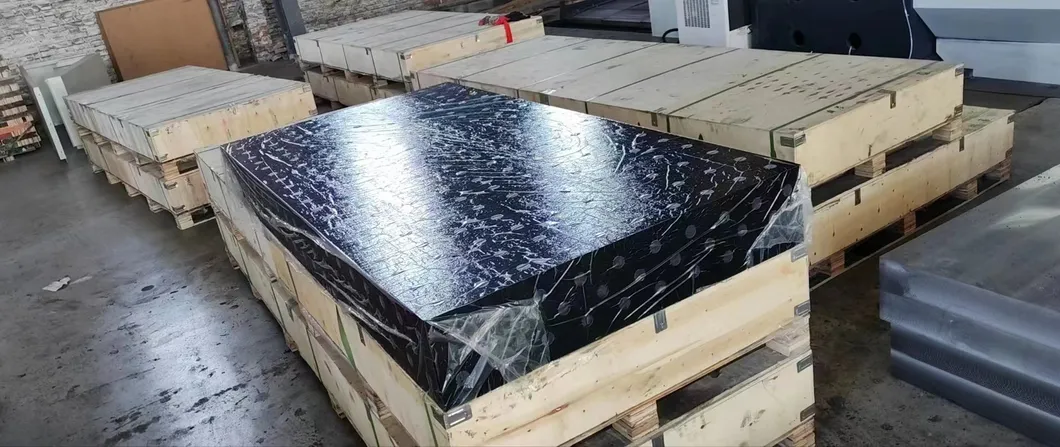

Product packaging
Q&A
Q: Are you trading company or manufacturer ?
A: Yes, We are manufacturer.Our factory are professional to produce welding equipment.
Q: Can you do OEM?
A: Yes, we can do OEM products.It's no problem.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods arenot in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost offreight.
Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing.
