Product Description--INTRODUCTION
The three-dimensional flexible navigation workbench is a low-pressure, flexible, and reusable navigation workbench that can be used to evaluate engineering machinery, automobile manufacturing, robots, ships, rail transit and other industries. Users can quickly splice workwear with different requirements as needed. Flexible workwear iterates designers' investment in repeated design and production of workwear.
The three-dimensional combined clamping system is composed of a tabletop in the form of a grid with holes that can be arbitrarily combined and various functional modules. The hole diameters are available in two series: φ28mm and φ16mm. The table can be equipped with various functional modules as needed to form various positioning and clamping functions. In addition to the table top, the modules also include right-angle blocks, columns, positioning blocks, arbitrary angle adjustment blocks, V-shaped blocks, pins, and various types of quick fixtures and auxiliary modules. The module is also equipped with φ28mm and φ16mm holes or rods, which can be matched with each other at any position or fastened with pins. Its design is ingenious and has multiple uses.
Specific classification
| No. |
Length*width(mm) |
Hole diameter (mm) |
Height 3D/2D (mm) |
Material |
| 1 |
4000*2000 |
D28/D16 |
200/150 |
Cast iron /Q235 steel /stainless steel
According your request , to be customized
|
| 2 |
3000*2000 |
D28/D16 |
200/150 |
| 3 |
3000*1500 |
D28/D16 |
200/150 |
| 4 |
2400*1200 |
D28/D16 |
200/150 |
| 5 |
2000*1000 |
D28/D16 |
200/150 |
| 6 |
1500*1500 |
D28/D16 |
200/150 |
| 7 |
1000*1000 |
D28/D16 |
200/150 |
| 8 |
1200*1200 |
D28/D16 |
200/150 |
| 9 |
1200*1000 |
D28/D16 |
200/150 |
| 10 |
1000*800 |
D28/D16 |
200/150 |
Advantages detailed
The use of this combination welding workbench can greatly save the design and production time and money spent on repeated investment in tooling for users who constantly design tooling. Users can use this flexible system to continuously assemble new and different workwear according to their own needs.
FIRST
Modular, more economical.All components are classified, standardized and serialized to match each other. By using the fewest modules, various quick positioning and clamping functions can be achieved.
SECOND
Flexibility, greater versatility and various assembly methods, similar to children's toys. As long as users give full play to their imagination, they can achieve almost the same positioning and clamping functions of any special clamp. Quick assembly, easy assembly and disassembly, and good repeatability. Users can also add a small amount of positioning parts according to their own needs to meet specific requirements.
THIRD
High precision, more precise production The work surface and various functional modules have high processing accuracy, which will be reflected in the products processed by users. For large workpieces about 3m square, after using a reasonable clamping scheme for welding, the flatness, straightness, parallelism and verticality can be controlled within ±0.1mm.
FORTH
Corrosion resistance and longer service life. Chaode's welding platform is integrally cast, which greatly increases the overall structure. The heat-treated platform has a salt spray test of more than ten levels and is non-deformable and corrosion-resistant.
More About Us
Customer visit
The development of our company is inseparable from your support and trust in our company. Foreign leaders visited our company this time and conducted more precise discussions on product details, improving the business cooperation model between the two parties and achieving better mutual benefit and win-win.

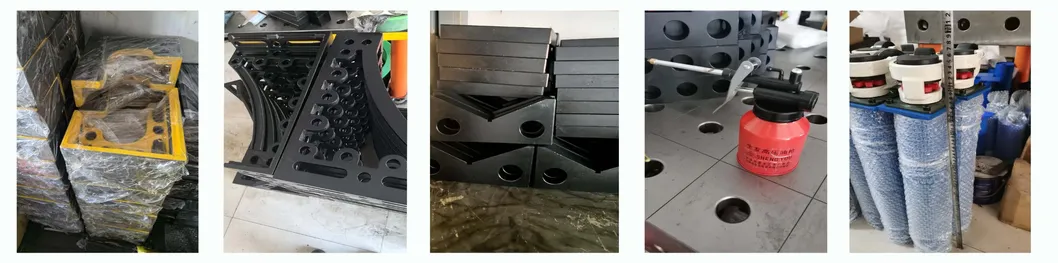

Various auxiliary modules
Such modules include: V-shaped blocks and chain clamps specially used for positioning round pipes; standard flange plates for positioning flanges; corner modules for extending in the 45° direction on the table corners; spacing adjustment kits; φ28mm and φ16mm System transition pin; a clamping bridge that uses one clamp to clamp two points (clamping round pipes); a transition interface block for connecting user-made parts and standard parts; lifting rings; prevents the gap between the table and the welding cable during welding Special plugs for electric sparks and special kits to prevent welding spatter, etc.
