Smelters Metal Processing Bag Collectors Pulse Dust Collectors

Equipment IntroduceHMC series pulse cloth bag dust collector is a single type bag dust collector. It adopts circular filter bag, self-contained air ventilation system with pulse injection ash cleaning mode, which has advantages of highdust removal efficiency, good ash cleaning effect, low operation ......Keywords:Smelters Metal Processing Bag Collectors Pulse Dust Collectors, Dust Collector Housing, Jetting Pulse Dust Collector

Product Description

Equipment Introduce
HMC series pulse cloth bag dust collector is a single type bag dust collector. It adopts circular filter bag, self-contained air ventilation system with pulse injection ash cleaning mode, which has advantages of high
dust removal efficiency, good ash cleaning effect, low operation resistance, long service life of filter bag, simple maintenance and stable operation, etc.

Product Parameters

Equipment Model		HMC-24	HMC-32	HMC-36	HMC-48	HMC-64	HMC-80
Total Filtration Area m²		20	25	30	40	50	64
Filtration Velocity m/min		1.0-2.0
Air Volume m³/h		1200-2400	1500-3000	1800-3600	2400-4800	3000-6000	3840-7680
Quantity of Filter Bag		24	32	36	48	64	80
Specification and Material of Filter Bag		130*2000mm
Air Outlet Dust Concentration mg/m³		≤30
Beard Negative Pressure Pa		5000
Equipment Running Resistant Pa		800-1200
Injection Pressure Mpa		0.4-0.6
Electromagnetic Pulse Valve	Specification	DMF-Z-25(G1")
	quantity	4	4	6	6	8	8
Induced Draft Fan Model		4-72-2.8A	4-72-3.2A	4-72-3.6A	4-72-3.6A	4-72-4A	4-72-4.5A
Power of Motor		1.5kw	2.2kw	3kw	4kw	5.5kw	7.5kw

Bag repair and replacement can be carried out in separate rooms without stopping the system fan and under normal operating onditions of the system. Filter bag mouth with elastic ring, good sealing performance, firm and reliable. The filter bag keel adopts the polygonal shape, which reduces the friction between the bag and the keel, prolongs the life of the bag, and is easy to unload the bag.

Smelters Metal Processing Bag Collectors Pulse Dust Collectors

S.R.D. Dust Collectors' baghouse dust collectors are most effective when the particulate is larger and the loading is extreme.

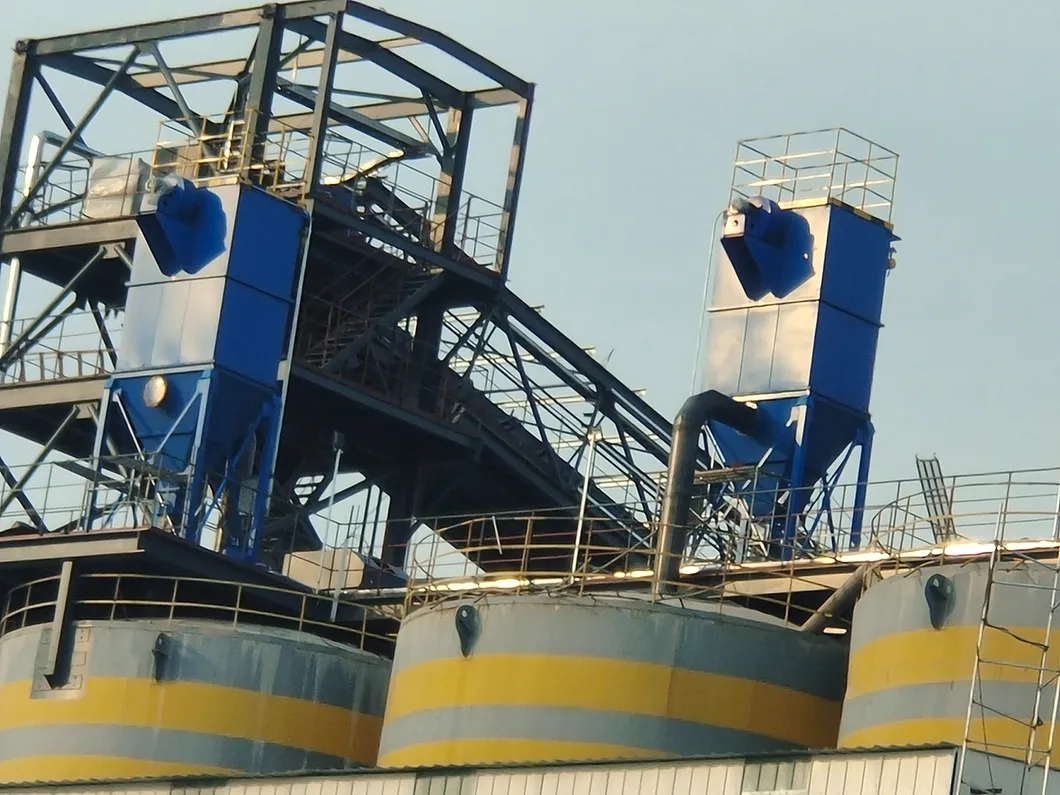

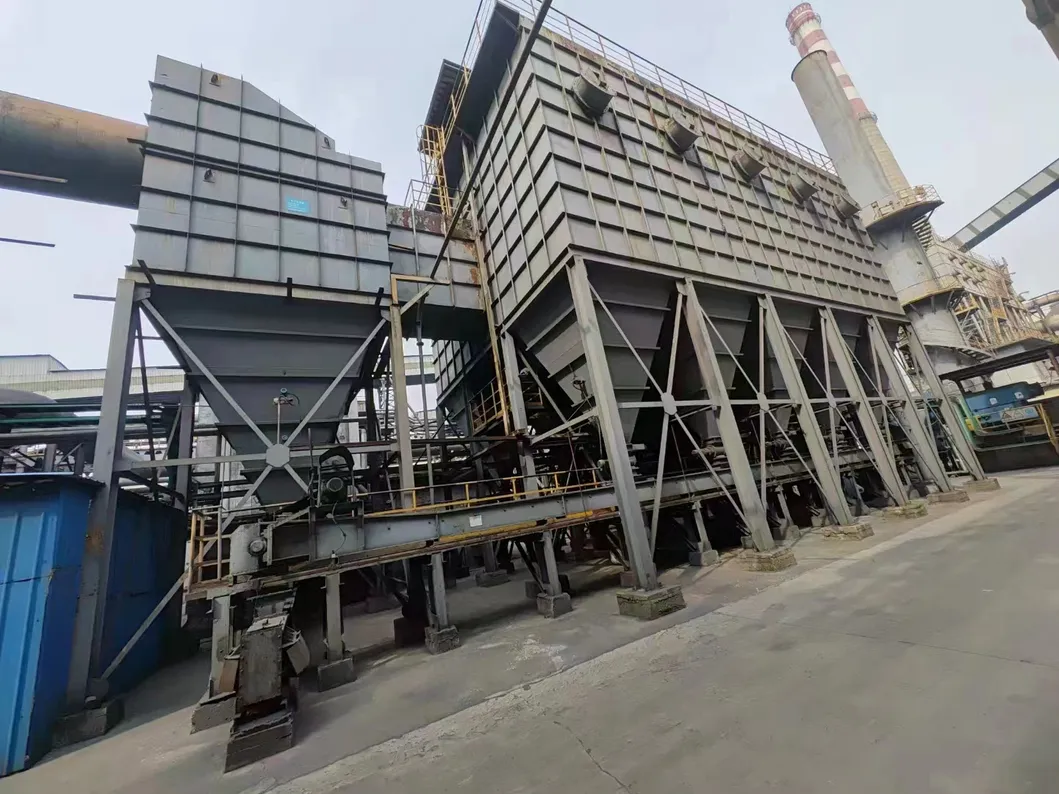

Installation Project

Customer Feedback

Company Profile
Smelters Metal Processing Bag Collectors Pulse Dust Collectors

Botou Xintian Environmental Protection Equipment Co., Ltd has a superior geographical position, West 106 National Highway, North Shihuang Expressway, East 104 National Highway, Jingfu Expressway, BeijingShanghai Railway, Highway and Railway crisscross, and the traffic is very convenient. The lo mation of traffic network provides a time guarantee for the transportation and after-sales service of products.

Smelters Metal Processing Bag Collectors Pulse Dust Collectors

FAQ
Q1: Whether your equipment have passed some international standard?
A1: Now the quality of our shot blasting machine has met ISO9001 ISO14001 CE international standard
Q2: How long is your equipment warranty?
A2: General the warranty is one year (except quick-wear spare parts)
Q3: Whether your company can supply installation?
A3: Online or On-site installation.
Q4: How long is your delivery time ?
A4: Generally it is within 7 days if the goods are in stock.or it is 10-50days if the goods are not in stock,it is according to quantity
Q5: What capacity of we can supply?
A5: We can as your needs to professional design
