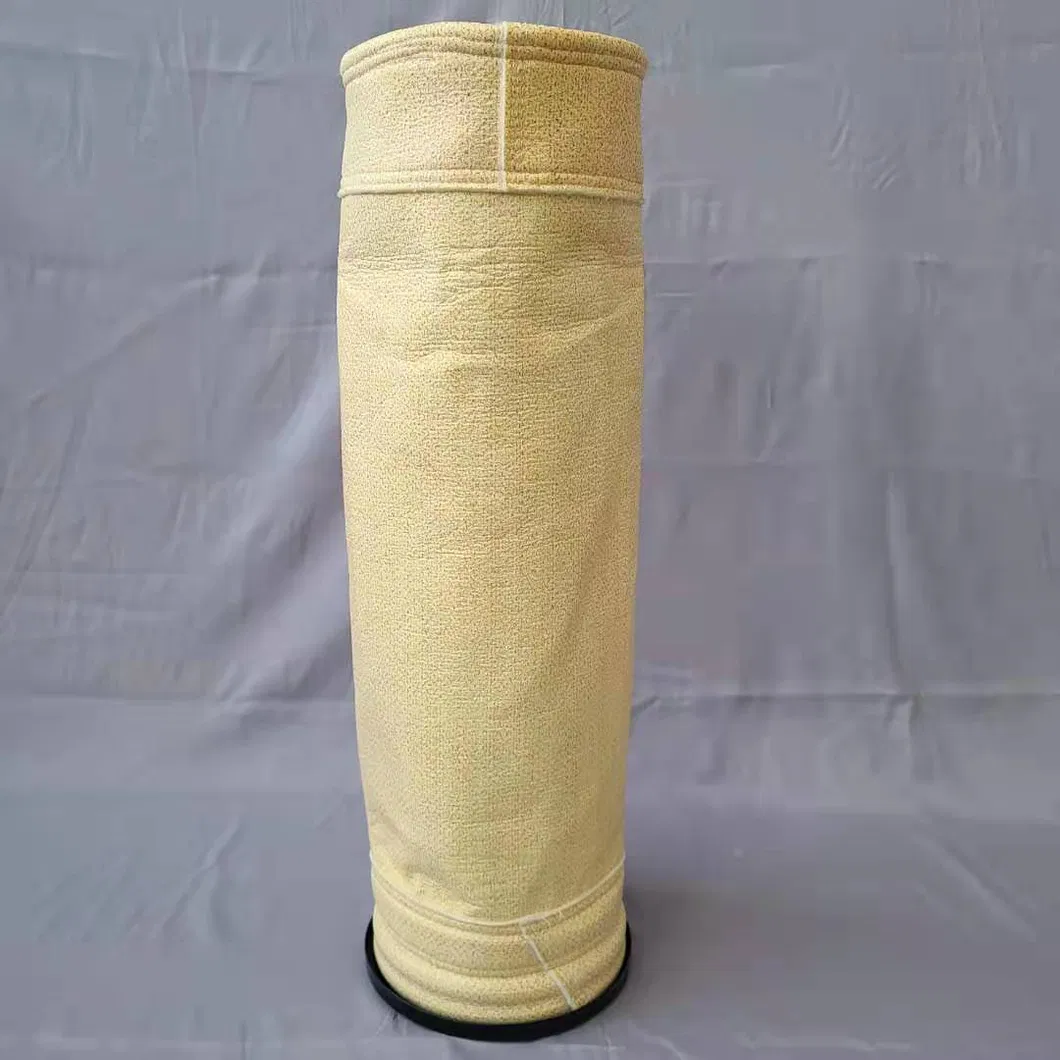

Polyester Needle-Punched Filter Bag High Capacity Adjustable Filter Bag

Product Description

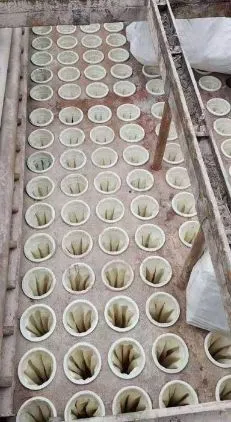

Metal plant cement plant for the bag cyclone dust collector cloth bag dust collector

Polyester Needle-Punched Filter Bag High Capacity Adjustable Filter Bag

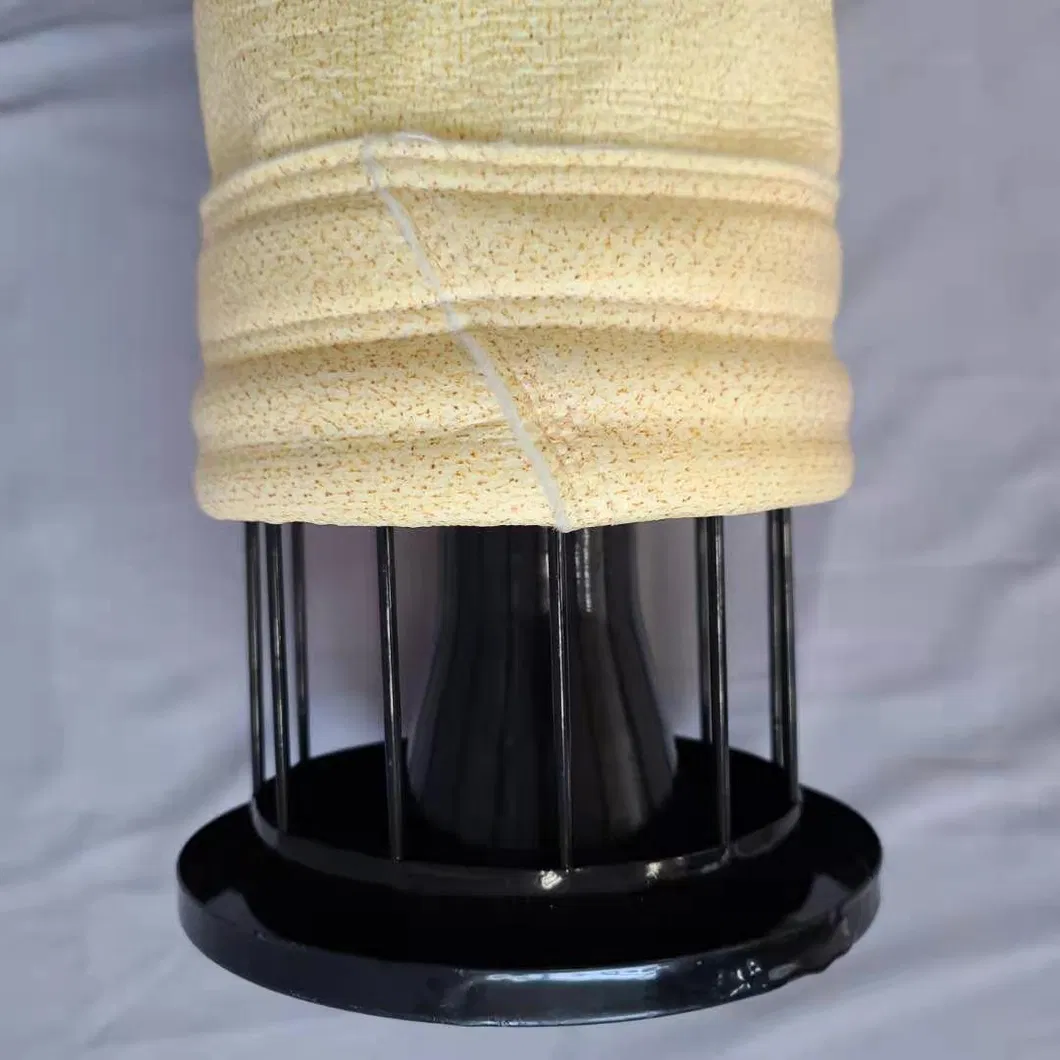

The filter bag is the key component to determine the dust removal efficiency and working temperature of the bag dust collector, and the cost of replacing the filter bag is the main maintenance cost of the bag dust collector. Therefore, the working life of the filter bag is related to the operation state and cost of the dust collector, so it is particularly important to select the appropriate filter material and design the reasonable structure.

The selection of filter material should be considered according to the temperature, humidity and chemical characteristics of the gas, the size, weight, shape, ponderability of particles, dust concentration, filtration speed, ash cleaning mode, emission concentration and the working system of bag dust collector. In general, the pulse spray bag filter uses needle felt, the chamber back blowing bag dust collector or the mechanical vibration bag filter selects the woven cloth.

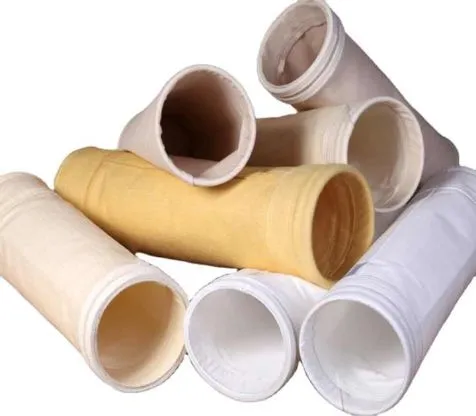

Filter bags material

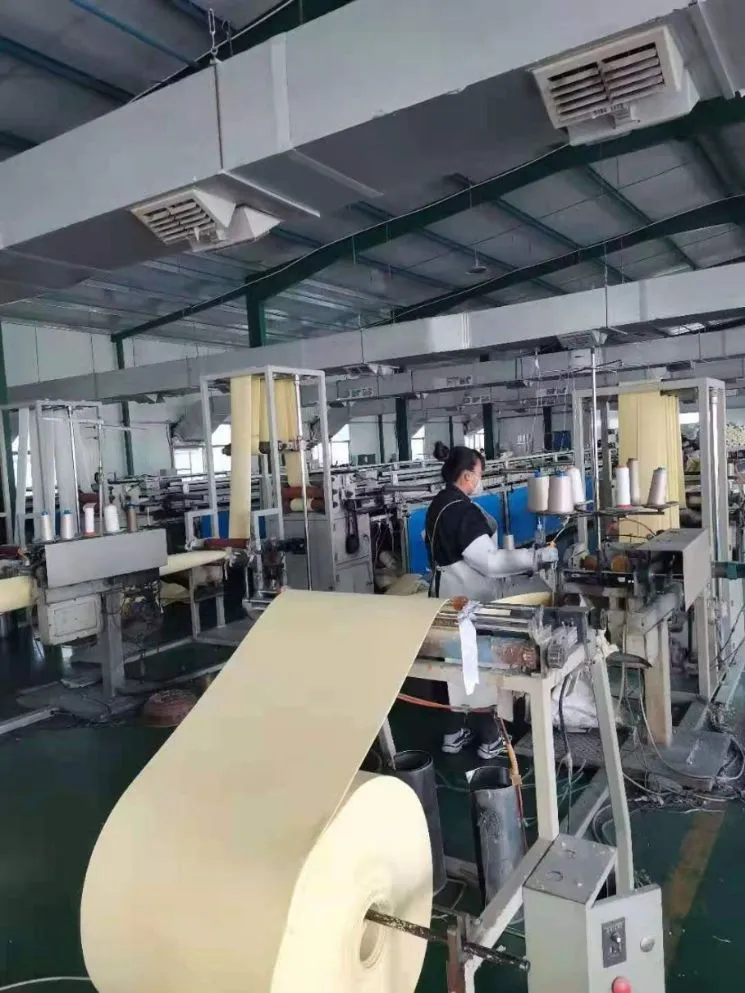

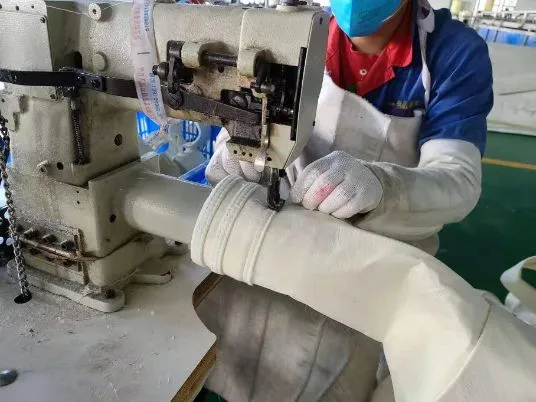

we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

1.Polyester Needle-Punched Filter Bag
The bag has the advantages of high void, good air permeability, high dust collecting efficiency and long service life, which are peculiar to common felt filter bags. It has modefdate high temperature resistance, and can reach 130"C in an instant. It also has moderate acid and alkali resistance. and very good wear resistance.
Weight: 500g/ m²
Material: Polyester/Polyester Filament Substrate Thickness: 1.75mm
Permeability: 16 m³/ m²· min
Radial control force:> 1100N/5'20cm Latitudinal control force:> 1400N/5.20cm Radial control force: <25%
Latitudinal control force: <45%
Usage temperature:.; 130"C
Post-treatment: singeing, calendering, heat selling

2. Polyester Antistatic Needle-punched Filter Bag
In the process of producing needle-punched felt, conductive fibers or conductive materials are mixed into chemical fibers. It is used in industries where flour dust. chemical dust and coal dust may explode in case of electrostatic discharge.
Weight: 500g/ m²
Material: Polyester/Polyester/Polyester Antistatic Substrate Thickness: 1.8mm
Permeability: 15 m³/ m²· min
Radial control force: > 800N/5 x 20cm
Latitudinal control force: > 1200N/5 x 20cm
Radial control force: <35%
Latitudinal control force: <55%
Usage temperature:≤130°C
Post-treatment: singeing, calendering, or Teflon coating

3.Water-repellent and Oil-expellant Polyester Needle-punched Filter Bag
The filter cloth is rolled and impregnated with PTFE (waterproof agent), which is used in occasions with high moisture content. The filter material is not easy to block the paste bag, the service life of the cloth bag is prolonged, the gas flow rate is increased, and the maintenance cost is greatly save.
Weight: 500g/m'
Material: Polyester/Polyester Antistatic Substrate Thickness: 1.8mm
Permeability: 15m³/m²· min
Radial control force: > 800N/5 x 20cm
Latitudinal control force: > 1200N/5 x 20cm Radial control force: <35%
Latitudinal control force: <55%
Usage temperature: ≤ 130°C
Post-treatment: singeing, calendering, or Teflon coating

good raw materialacid
alkali resistance
abrasion resistance
corrosion resistance

4. Polypropylene Needle-punched Filter Bag
With excellent acid and alkali resistance, low softening point, it can be used in flue gas temperature below 100"C and high acidity and alkalinity occasions or in the field of liquid-solid separation with high acidity and alkalinity.
Weight: 500g/ m²
Material: Acrylic polyester /polypropylene yarn Thickness: 2.1 mm
Permeability: 12.6 m³/ m²· min
Radial control force: > 980N/5 x 20cm Latitudinal control force > 1060N/5 x 20cm Radial control force: <35%
Latitudinal control force: <55%
Usage temperature: ≤88°C
post-treatment: singeing or calendering

5. Fiberglass Needle-Punched Filter Bag
It has the advantages of high temperature resistance, corrosion resistance, dimensional stability, minimal elongation and shrinkage, high strength. And the tapetum fiber bears single fiber, three-dimensional micro-porous structure, high porosity and low resistance to gas filtration. It is a kind of high-speed and highefficiency high-temperature filtering material. It is widely used in high temperature flue gas filtration of industrial kilns such as chemical industry, iron and steel, smelting, carbon black, power generation, cement, etc.
Weight: 800g/ m²
Material: Fiberglass
Thickness: 1.8mm
Permeability: 10 m³/ m²· min
Radial control force: > 1 SOON/5 x 20cm Latitudinal control force: > 1 SOON/5 x 20cm Radial control force: < 10%
Latitudinal control force: <10%
Usage temperature: ≤ 280°C
Post-treatment: Teflon treatment

6. Acrylic Medium Temperature Needle-punched Filter Bag
Using non-woven needle-punching technology, the surface of fine fiber cloth with interlaced strong fibers and uniform void distribution is smoothed by hot rolling and singeing treatment, which is not easy to be blocked by dust. The filter material has large void, good permeability and strong chemical stability. It can not only filter atmospheric temperature gas, but also medium temperature gas. It is the ideal choice of filter materials under acid-alkali corrosive gas condition.
Weight: 500g/m²
Material: Acrylic/Acrylic Substrate Thickness: 1.9mm
Permeability: 14m³/ m²· min
Radial control force: > BOON/5 x 20cm Latitudinal control force: > 1300N/5 x 20cm Radial control force: <25%
Latitudinal control force: <45%
Usage temperature: ≤ 130°C
Post-treatment singeing, catendering

7.Metas Needle-punched Filtration Filter Bag at High Temperature
Metas is the generic name of Nomex produced by Dupont Company in the United States and Conex produced by Emperor Company in Japan. It is widely used in various high temperature flue gas filtration occasions, with excellent and reliable performance, and widely used in steel, electric power, asphalt mixing industry. The product adopts the optimized process, which improves the physical and chemical properties of the product and make the application more secure.
Weight: 500g/ m²
Material: Metas / Metas Subslrate
Thickness: 2.2mm
Permeability: 17 m³/ m²· min
Radial control force: > BOON/5 x 20cm
Latitudinal control force: > 1200N/5 x 20cm
Radial control force: <35%
Latitudinal control force: <55%
Usage temperature: ≤ 204°C
Post-treatment: singeing, calendering or Teflon coating

8. High-temperature PPS Needle-punched Filter Bag
PSS fibers have complete strength retention and inherent chemical resistance, which can maintain good filtration performance in harsh environments and achieve ideal service life It is used to filter coal-fired boilers, garbage incinerators, dust collecting treatment of fly ash in power plants and pulse cleaning dust collectors.
Weight 500g/ m²
Material PSS Filament Substrate
Thickness 1 8mm
Permeability 15 m³/ m²· min
Radial control force > 1200N/5 x 20cm
Latitudinal control force > 1300N/S x 20cm
Radial control force <30%
Latitudinal control force. <30%
Usage temperature ≤ 190°C
Post-treatment high temperature hot pressing and singeing

9. Flumex (FMS) High Temperature Resistant Needle-punchedFilter Bag
Compared with fiberglass cloth bags, its wear resistance, flexural resistance and peeling strength are obviously improved. The filtration speed can reach more than 1.0m/min and the running resistance is low. It is widely used in steel, non-ferrous smelting, chemical industry, carbon black, building materials, electric power and other industries.
Weight: 800g/ m²
Material: Aramid. fiberglass/ fiberglass substrate Thickness: 2.5mm
Permeability: 10 m³/ m²· min
Radial control force: > 2000N/5 x 20cm Latitudinal control force: > 2000N/5 x 20cm Radial control force: < I 0%
Latitudinal control force: < 10%
Usage temperature: ≤ 260°C
Post-treatment: PTEF treatment, calendering

10. P84 High Temperature Resistant Needle-punched Filter Bag
It has remarkable temperature resistance and good chemical resistance It has certain advantages in filtration of acid waste gas and alkaline dust It has low backwash pressure and high sludge cake efficiency It is used in asphalt plants. cement plants, waste incinerators. liquid bed boilers and coal-fired boilers.
Weight 500g/ m²
Material P84/P84 substrate
Thickness 2 3mm
Permeability 15 m³/ m²· min
Radial control force > 700N/5 x 20cm
Latitudinal control force > 1300N/5 x 20cm
Radial control force <35%
Latitudinal control force <55%
Usage temperatures≤ 260°C
Post-treatment high temperature hot pressing and singeing

11.Three-proof Polyester Needle-punched Filter Bag (waterproof, antistatic, oil-proof)
In the process of producing needle-punched felt, conductive fibers or conductive materials are mixed into chemical fibers. The filter cloth is rolled and impregnated with PTFE (waterproof agent), which is used in occasions with high moisture content. The filter material is not easy to block the paste bag, the service life of the cloth bag is prolonged, the gas flow rate is increased, and the maintenance cost is greatly saved
Weight: 500g/ m²
Material: Polyester/Polyester Antistatic Substrate Thickness: 1.8mm
Permeability: 11 m³/ m²· min
Radial control force: > 1100N/5 x 20cm
Latitudinal control force: > 1300N/5 x 20cm
Radial control force: <35%
Latitudinal control force: <45%
Usage temperature: ≤ 130°C
Post-treatment: singeing, calendering or Teflon coating

Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Steel Plant, Flour Factory, Cement Plant, Industry Plant, Chemical Factory
Marketing Type	Marketing Type
Application	Industry Dust Collector
Feature	High Efficiency
High Efficiency	Requirement
Requirement	1.8mm
Advantage	Eco-friendly

packaging

FAQ
Q1. Are you manufacturer or trade company ?
We are professional manufacturer in China , and have in this line almost 10 years .
Q2. Would it be possible for us to visit your factory ?
Sure, welcome you at any time !
Q3 . Will your company supply samples ?
Yes ,we do .
Q4. How can we get the quotation ?
Please let us know the specifications , such as the material ,micron ,apply in which industry etc .
Q5.what's the lead time ?
Usually is 5-15 days after we received your payment .
Q6 . what is the packaging ?
Inner packing -poly bags .Outer packing -Export cartons .
Q7. Can I get your products with our logo and design ?
Yes ,you can . Most of our products can be customized according to your requirements .
Q8. Which payment terms are you accept ?
T/T , L/C .Western Union , Money gram are available for us . we accept 30% T/T in advance , the balance should be paid before shipping .
