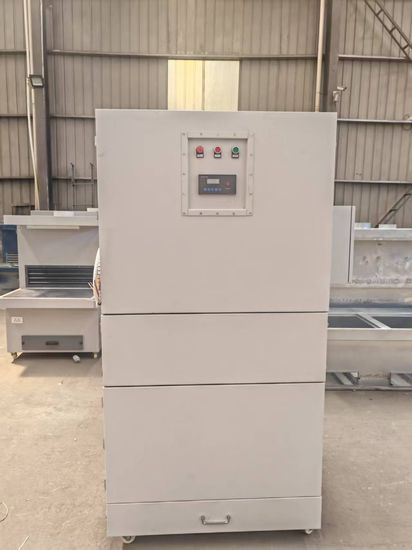

New Custom Factory Processed Filtration System, Welding Dust Collector

.lc-a-img {position: relative;width: 100%;height: 100%;object-fit: contain;overflow: hidden;}.lc-a-img .img-content {position: absolute;top: 0;left: 0;width: 100%;height: 100%;overflow: hidden;}.lc-a-img .img-content .img-content-wrap {position: relative;width: 100%;height: 100%;}.lc-a-img .img-cont......Keywords:New Custom Factory Processed Filtration System, Welding Dust Collector, Welding Dust Collector, Dust Collector for Welding Fumes

Product Description

Product features:
1. Beautiful appearance, built-in fan of different specifications, no need to connect the pipeline can be in the workshop direct discharge, the bottom with universal casters to move easily.
2. Pulse automatic ash cleaning system, eliminating the need for manual labour, easy to clear ash.
3. Shell material galvanised sheet spraying, thickened plate, low noise.
4. Imported membrane filter element, long service life.
Application industry:
Metallurgy, cutting, grinding, plastic, chemical, pharmaceutical, food, biological, electronic, mechanical hardware, casting, ceramics, loading and unloading, cement, mining and other industries.
Processing object:
Dust, fume

Dust enters the purification room from the pipeline through the negative pressure generated by the filter cartridge dust collector,
The flow rate slows down to make large particles of dust fall,
Fine dust airflow enters the purification room, in the purification room,
The filtration and separation of dust is completed through the separation of the filter cartridge,
The dust is blocked on the surface of the filter cartridge, and the purified air is discharged through the blower.
When clogged dust is continuously deposited on the surface of the filter cartridge,
the pulse cleaning system will be periodically turned on to clean the filter cartridge.
When clogged dust is deposited on the surface of the filter cartridge, the pulse cleaning system will be periodically turned on to clean the filter cartridge.

Product Size	Fan Power	Filter Cartridge Material/Size	Number of Cartridges	Plate Thickness	Air Storage	Pulse Valve
8006001750	2.2KW	Fibre material/325*500	2	1.0mm	inbuilt	2
8008001750	3.0KW	Fibre material/325*500	4	1.2mm	inbuilt	4
100010002050	5.5KW	Fibre material/325*500	4	1.5mm	inbuilt	4
120010002050	7.5KW	Fibre material/325*500	6	2.0mm	inbuilt	6

FAQ

Q:What is the price?
A:The price is based on your request technical data, such as the air volume, application, configuration etc, different model has different price, so if you need the price, please send me your detail technical data or photos.
Q:What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc.
Q:What's the delivery time of your company?
A:Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4 weeks after deposit for 380v/50hz/3phase fan, if special electic, the delivery time is within 6-8 weeks after deosit.
Q:Do you give any discount ?
A:We will surely try my best to help you get those by the best price and good service at the same time.
