Industrial Factory Workshop Welding Dust Filter Bag Mobile Fume Dust Collector

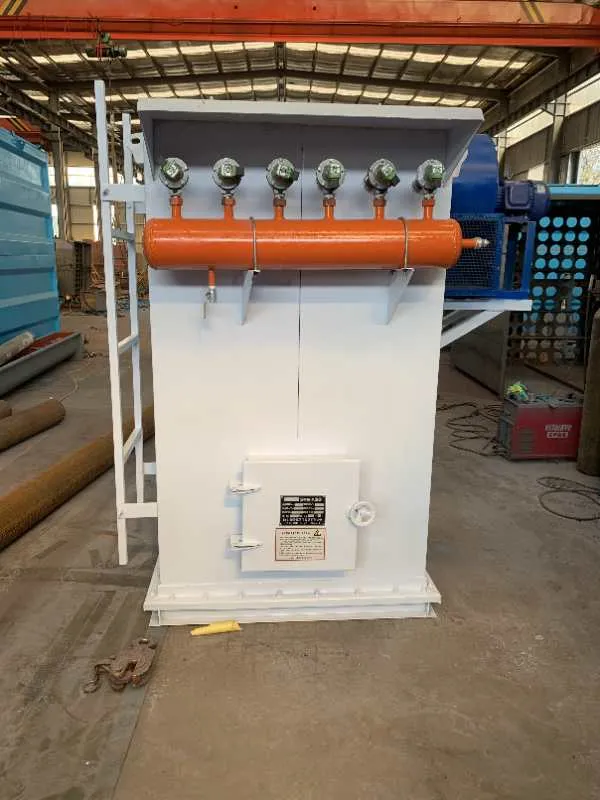

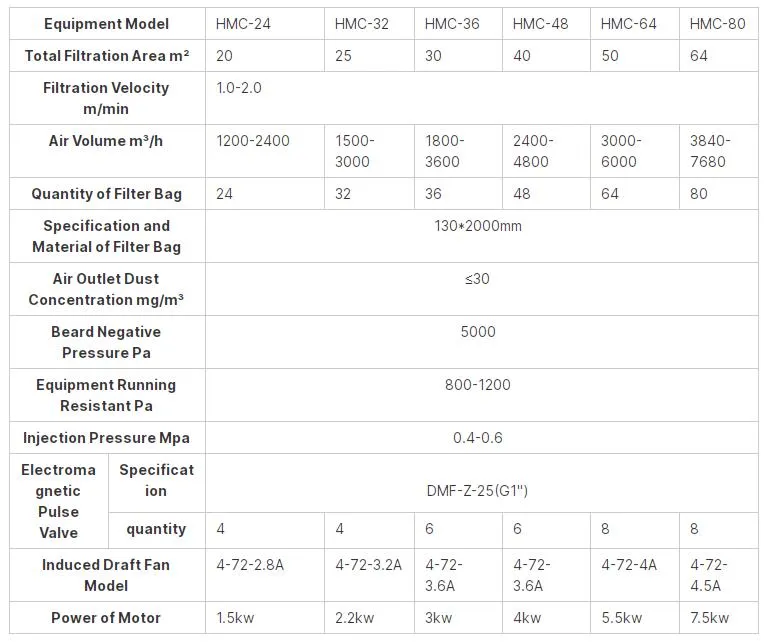

HMC series pulse cloth bag dust collector is a single type bag dust collector. It adopts circular filter bag, self-contained air ventilation system with pulse injection ash cleaning mode, which has advantages of high dust removal efficiency, good ash cleaning effect, low operation resistance, long service life of filter bag, simple maintenance and stable operation, etc.
When the dust gas enters into the cloth bag dust collector from air induced system, due to the decrease of wind speed, the dust particles with a large proportion settle into the ash hopper, and the lighter dust depends on the air induction to reach the surface of dust removal filter bag. The filter bag of dust collector generally uses needle felt as the filter carrier, and the filtration accuracy can reach <1um. The dust is blocked on the surface by the filter bag, and the dust gas is purified through the filter bag. With the increasing of time, more and more dust is filtered on the surface of filter bag, so the resistance of the filter bag is gradually increased. In order to make the dust collector work normally, when the resistance rises to a limited range, the electronic pulse controller issues instructions to follow the order. The sequence triggers each control valve to open the pulse valve, and the compressed air in the gas storage bag of dust collector is sprayed into the corresponding filter bag by each injection hole of the injection pipe. The filter bag expands rapidly under the instantaneous reverse action of air flow, which makes the dust attached to the surface of the filter bag fall off and makes the filter bag achieve the most original air permeability filtration effect. The cleared dust falls into the ash hopper and drains out of the body through the ash removal system to complete the whole ash cleaning and filtration process.

Botou Xintian Environmental Protection Equipment Co., Ltd has a superior geographical position, West 106 National Highway, North Shihuang Expressway, East 104 National Highway, Jingfu Expressway, Beijing- Shanghai Railway, Highway and Railway crisscross, and the traffic is very convenient. The formation of traffic network provides a time guarantee for the transportation and after-sales service of products.
Our company is a professional dust removal equipment and dust removal accessories manufacturer in collection of research and development, design, equipment manufacturing, field installation, and commissioning. Our company mainly produces; electric dust collector, high voltage electrostatic dust collector, rotary umbrella type high efficiency electrostatic dust collector, collecting high voltage electrostatic dust collector, tube pole type electrostatic dust collector, wide spacing electrostatic dust collector, pulse bag dust collector, long bag off-line pulse dust collector, high voltage off-line pulse bag dust collector, micro shock flat bag dust collector, rotary back blowing dust collector, bag type back blowing dust collector, single machine dust collector unit, single bag dust collector, single bag dust removal equipment, cyclone dust collector, coarse powder separator, wet vertical kiln dust collector, desulphurization dust collector , various types of electromagnetic pulse valve, YJD series(discharge valve), horizontal reducer, vertical reducer, planet cycloid pin wheel reducer, a variety of dust removal cloth bag series, a variety of bag cage series, pulse controller, cylinder, electric control cabinet and other dust collector accessories products, and we can also do non-standard design, modification and installation according to the requirements of users.
