Industrial Dust Fume Removal Downdraft Grinding Sanding Table Dust Extraction Work Bench

Product Description

China No.1 super quality pull-down dust collector table polishing down-suction dust collector
Industrial Dust Fume Removal Downdraft Grinding Sanding Table Dust Extraction Work Bench

Industrial Dust Fume Removal Downdraft Grinding Sanding Table Dust Extraction Work Bench

Industrial Polishing Dust Collector Metal Polishing Dust Collecting Platform

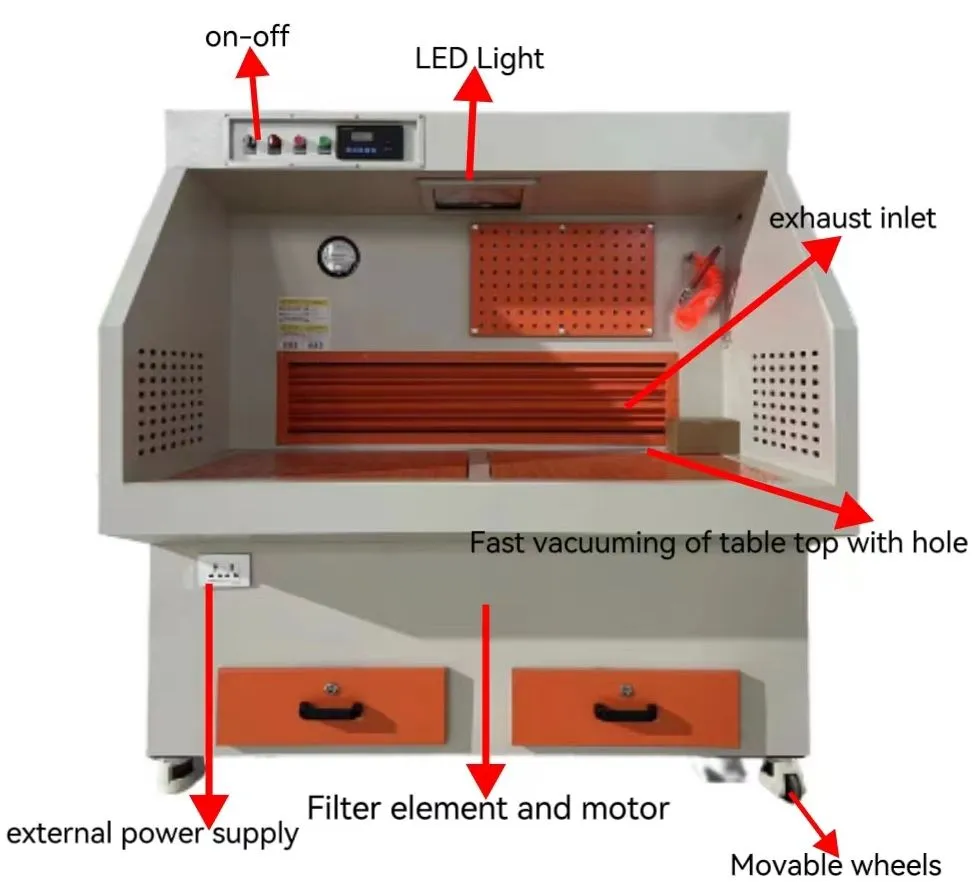

Explosion-proof dust-free polishing workbench completely adopts unique humanised design
The dust collector is integrated with the workbench, modular assembly, built-in explosion-proof system, dust removal system, fan sound insulation system, no need for piping connection, clean air can be discharged indoors in a circular manner to reduce energy consumption.
This type of workbench can effectively capture fine suspended dust without affecting the movement and vision of workers. Ideal for small to medium sized fine machining and polishing of various irregular parts.

functionality
1. Built-in dust removal system, the cleaned air can be circulated and discharged indoors to reduce air pollution.
2. Effectively captures suspended dust without interfering with workers' vision, making it an ideal choice for medium and small precision processing. It can be connected with a special smoke purifier and a central smoke system.
3. Set up a deflector at the air inlet to prevent smoke and dust from directly impacting the filter element and extend its service life.
4. The fan adopts a high-efficiency centrifugal fan, which has the characteristics of high efficiency and smooth operation.
5. Integrate the workbench and dust removal function into one, and remove dust directly at the source of dust generation.
6. It has a compact structure and small floor space, and can operate in two or multiple stations at the same time.
7. The filter cartridge has long service life, stable performance and easy replacement.
8. Equipped with a new low-noise fan, the air suction volume remains unchanged but the noise is lower.
9. Drawer-type dust box, emptying dust quickly and conveniently

Suitable for all kinds of welding, grinding, workpiece deburring, plasma cutting, etc. It is widely used in dust removal, material recovery and air filtration in tobacco, medicine, food processing, building materials, metallurgy, chemical industry, electric power, machinery manufacturing, casting and other industries.
Application industries: metallurgy, cutting, grinding, plastics, chemicals, pharmaceuticals, food, biology, electronics, mechanical hardware, casting, ceramics, loading and unloading, cement, mining and other industries

Product Parameter

Product Name	Size (mm)	Power	Filter Cartridge Material	Number of filter cartridges	Steel Plate Thickness
Sanding and dusting workbench (Dry dust removal)	800×1100×1600	2.2KW	Chemical fiber material	2	1.2mm
Sanding and dusting workbench (Dry dust removal)	1200×1200×1600	2.2KW	Chemical fiber material	2	1.2mm
Sanding and dusting workbench (Dry dust removal)	1500×1200×1600	3.0KW	Chemical fiber material	2	main body1.2mm Platform surface2.0mm
Sanding and dusting workbench (Dry dust removal)	2000×1200×1600	4.4KW	Chemical fiber material	4	main body1.2mm Platform surface2.0mm
Sanding and dusting workbench (Dry dust removal)	2500×1200×1600	4.4KW	Chemical fiber material	4	main body1.2mm Platform surface2.0mm
Sanding and dusting workbench (Dry dust removal)	2500×1200×1600	6.0KW	Chemical fiber material	4	main body1.2mm Platform surface2.0mm
Sanding and dusting workbench (Dry dust removal)	3000×1200×1600	6.0KW	Chemical fiber material	5	main body1.2mm Platform surface2.0mm

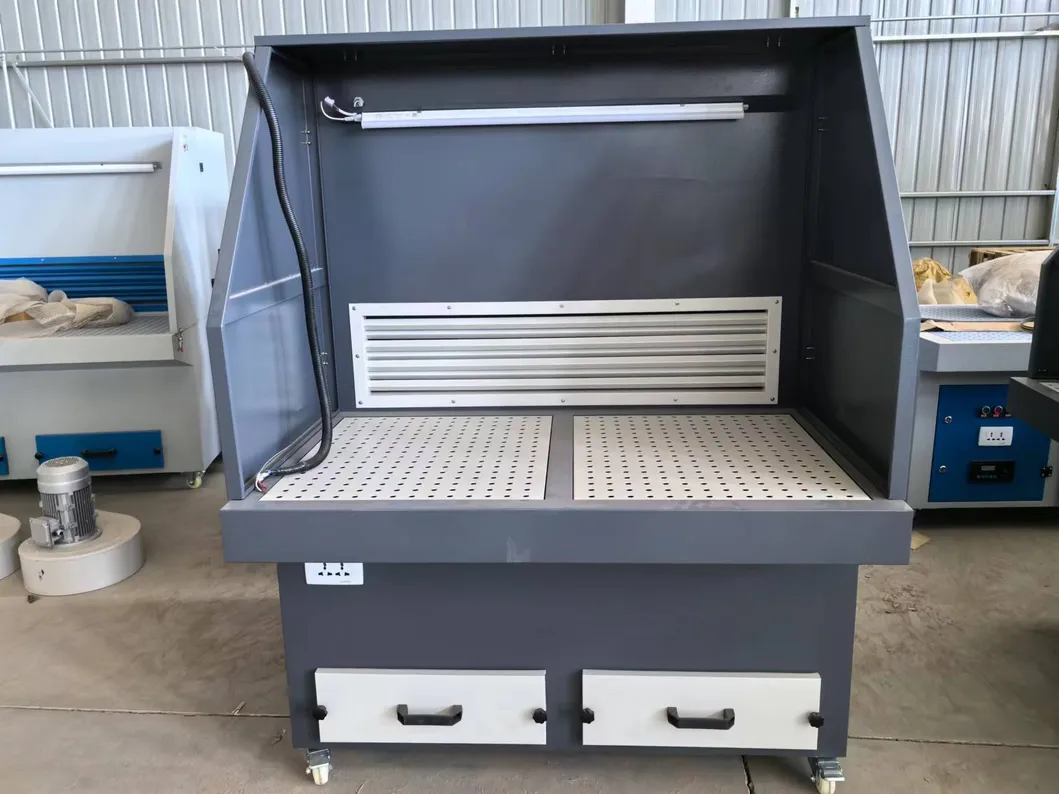

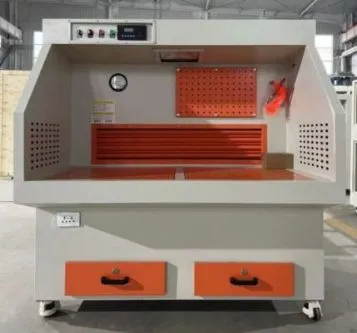

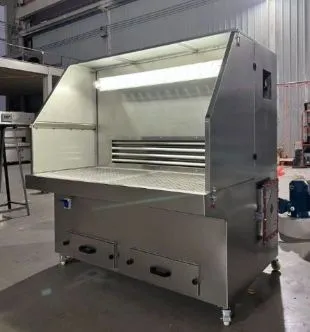

Product Display

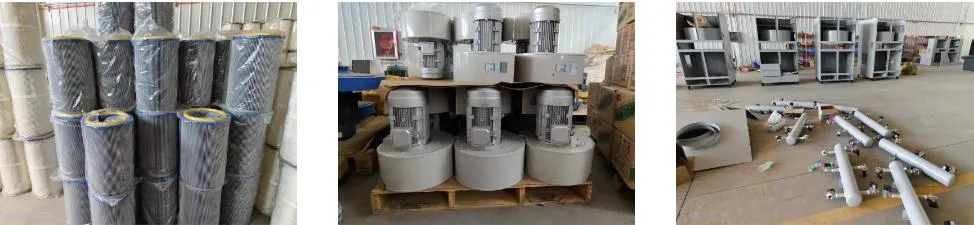

Other Products
Industrial Dust Fume Removal Downdraft Grinding Sanding Table Dust Extraction Work Bench

packaging

FAQ
Q1:What is the price?
A:The price is based on your request technical data, such as the air volume, application, configuration etc, different model has different price, so if you need the price, please send me your detail technical data or photos.

Q2:What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc.

Q3:What's the delivery time of your company?
A:Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4 weeks after deposit for 380v/50hz/3phase fan, if special electic, the delivery time is within 6-8 weeks after deosit.

Q5:Do you give any discount ?
A:We will surely try my best to help you get those by the best price and good service at the same time.
