Heavy-Duty Industrial Grinding Table – High Precision Metal Sanding Platform for Workshop Use

New customization Vacuum grinding table carteidge dust collector Product performance features: 1. Built-in dust removal system, the cleaned air can be circulated and discharged indoors to reduce air pollution.2. Effectively captures suspended dust without interfering with workers' vision, maki......Keywords:Heavy-Duty Industrial Grinding Table – High Precision Metal Sanding Platform for Workshop Use, Grinding Table, Heavy-Duty Industrial Grinding Table

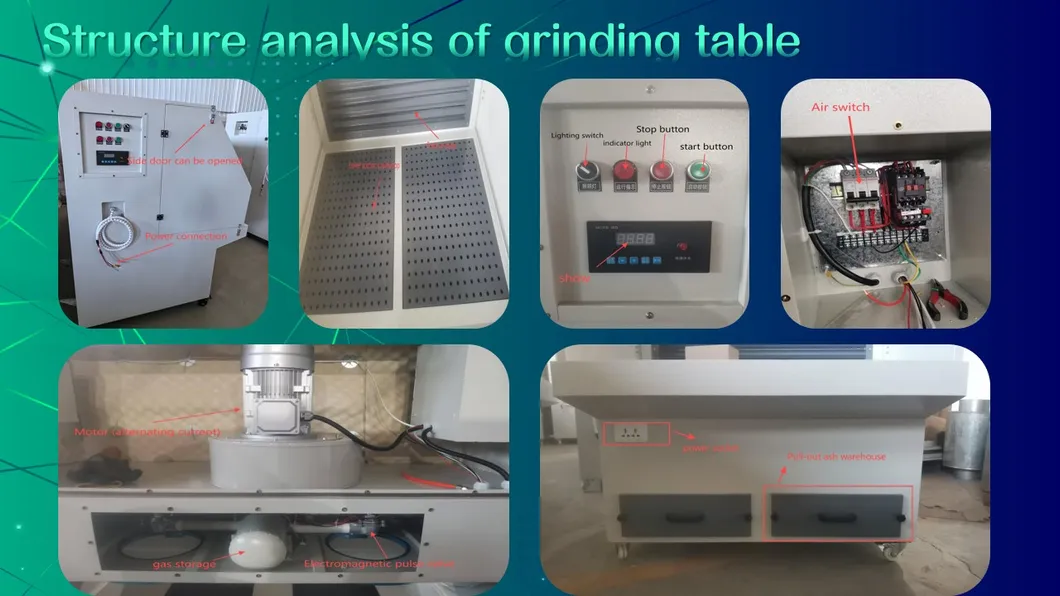

Product Description

New customization

Vacuum grinding table
carteidge dust collector

Product performance features:

1. Built-in dust removal system, the cleaned air can be circulated and discharged indoors to reduce air pollution.
2. Effectively captures suspended dust without interfering with workers' vision, making it an ideal choice for medium and small precision processing. It can be connected with a special smoke purifier and a central smoke system.
3. Set up a deflector at the air inlet to prevent smoke and dust from directly impacting the filter element and extend its service life.
4. The fan adopts a high-efficiency centrifugal fan, which has the characteristics of high efficiency and smooth operation.
5. Integrate the workbench and dust removal function into one, and remove dust directly at the source of dust generation.
6. It has a compact structure and small floor space, and can operate in two or multiple stations at the same time.
7. The filter cartridge has long service life, stable performance and easy replacement.
8. Equipped with a new low-noise fan, the air suction volume remains unchanged but the noise is lower.
9. Drawer-type dust box, emptying dust quickly and conveniently

Scope of application and application industries:

Suitable for all kinds of welding, grinding, workpiece deburring, plasma cutting, etc. It is widely used in dust removal, material recovery and air filtration in tobacco, medicine, food processing, building materials, metallurgy, chemical industry, electric power, machinery manufacturing, casting and other industries.
Application industries: metallurgy, cutting, grinding, plastics, chemicals, pharmaceuticals, food, biology, electronics, mechanical hardware, casting, ceramics, loading and unloading, cement, mining and other industries

product specifications:

Product Size	power	Filter cartridge material/size	Number of filter cartridges	Steel plate thickness
80011001600	2.2KW	fiber material / 325*500	2	1.2mm
120012001600	2.2KW	fiber material / 325*500	2	1.2mm
150012001600	3.0KW	fiber material / 325*500	2	Main body 1.2mm , countertop 1.5mm
200012001600	4.4KW	fiber material / 325*500	4	Main body 1.2mm ,countertop 2.0mm
250012001600	4.4KW	fiber material / 325*500	4	Main body 1.2mm ,countertop 2.0mm
250012001600	6.0KW	fiber material / 325*500	4	Main body 1.2mm ,countertop 2.0mm
300012001600	6.0kw	fiber material / 325*500	5	Main body 1.2mm ,countertop 2.0mm
