Big Air Flow Excellent Filtration Efficiency Dust Collector Machine for Industry Automatic Dust Collector Removal

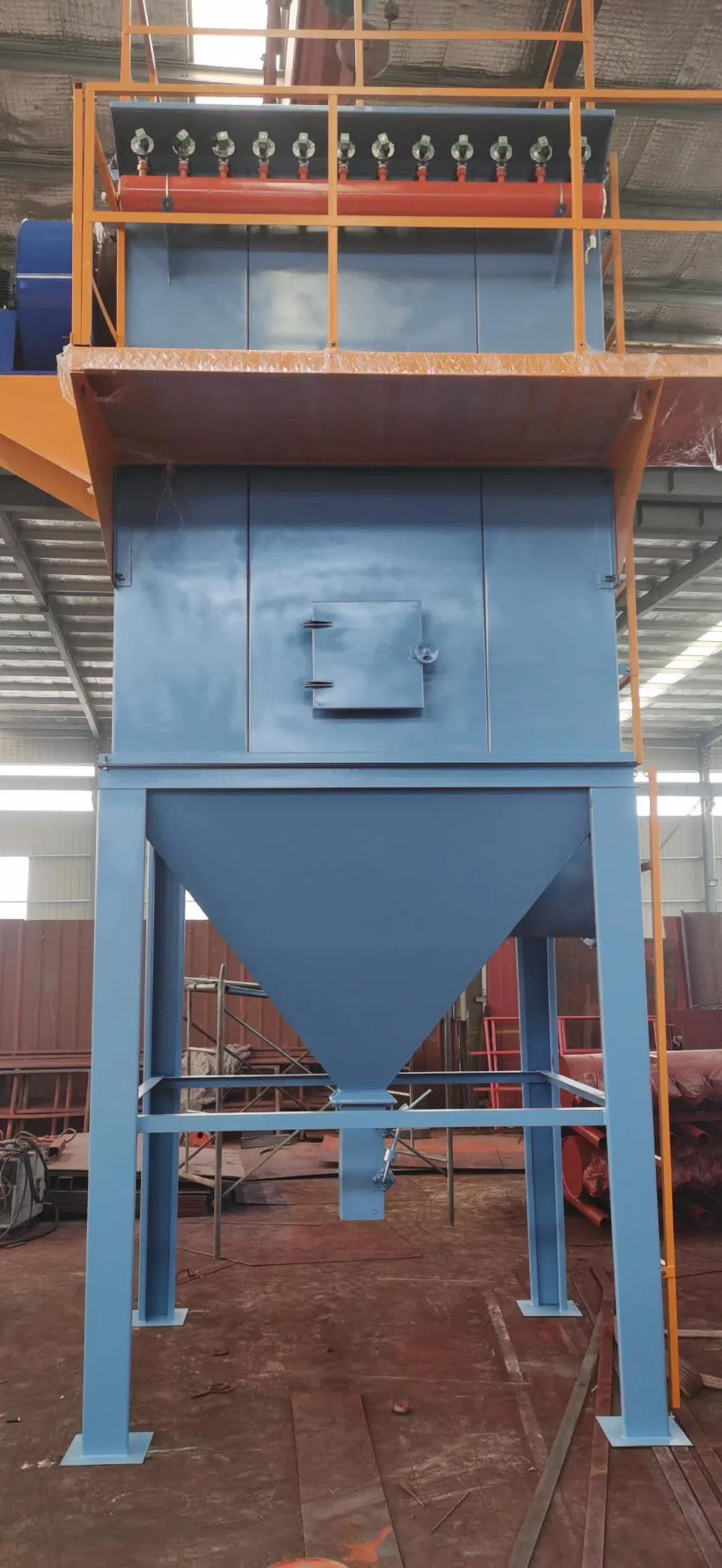

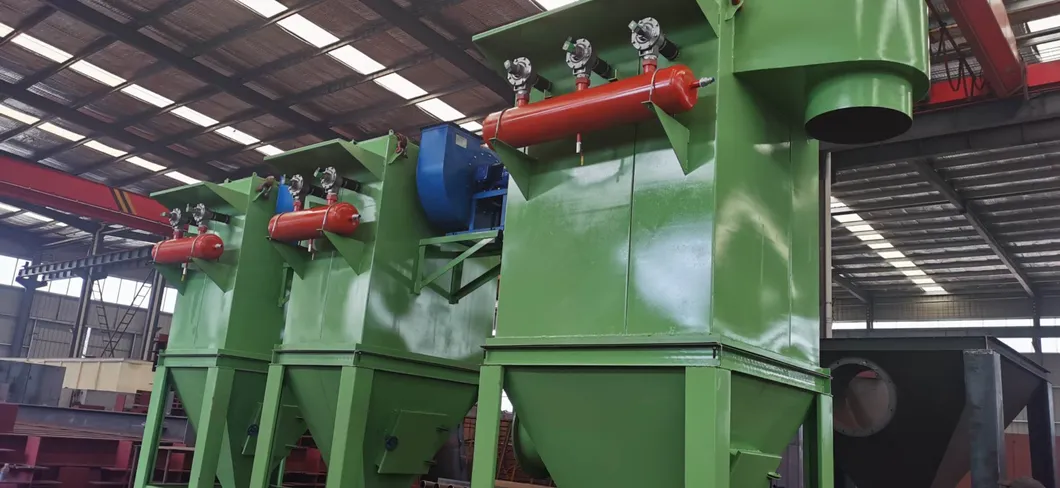

Bag house dust collector

MC series pulse cloth bag dust collector is a single type baghouse dust collector. It adopts circular filter bag, self-contained air ventilation system with pulse injection ash cleaning mode, which has advantages of high dust removal efficiency, good ash cleaning effect, low operation resistance, long service life of filter bag, simple maintenance and stable operation, etc.MC series pulse cloth bag dust collector is a single type baghouse dust collector. It adopts circular filter bag, self-contained air ventilation system with pulse injection ash cleaning mode, which has advantages of high dust removal efficiency, good ash cleaning effect, low operation resistance, long service life of filter bag, simple maintenance and stable operation, etc.

Product type

Equipment Model		HMC-24	HMC-32	HMC-36	HMC-48	HMC-64	HMC-80
Total Filtration Area m²		20	25	30	40	50	64
Filtration Velocity m/min		1.0-2.0
Air Volume m³/h		1200-2400	1500-3000	1800-3600	2400-4800	3000-6000	3840-7860
Quantity of Filter Bag		34	32	36	48	64	80
Specification and Material of Filter Bag		130*2000mm
Air Outlet Dust Concentration mg/m³		≤30
Beard Negative Pressure Pa		5000
Equipment Running Resistant Pa		800-1200
Injection Pressure Mpa		0.4-0.6
Power of Motor		1.5kw	2.2kw	3kw	4kw	5.5kw	7.5kw
Electromagnetic Pulse Valve	quantity	4	4	6	6	8	8
	Specification	DMF-Z-25(G1")

Baghouse dust collectors may be considered a thing of the past, but in reality, they're just as relevant and needed in today's industries as they were years ago. S.R.D. Dust Collectors' baghouse dust collectors are most effective when the particulate is larger and the loading is extreme.

Bag repair and replacement can be carried out in separate rooms without stopping the system fan and under normal operating conditions of the system. Filter bag mouth with elastic ring, good sealing performance, firm and reliable. The filter bag keel adopts the polygonal shape, which reduces the friction between the bag and the keel, prolongs the life of the bag, and is easy to unload the bag.
